Pressure gauge Syphon Tube / Pipe Q Type / 304/316 Stainless Steel Round Ring / 6000 PSI 1/2 NPT BSPT Swivel Positionabe / Pressure Gauge Snubber Syphon Tube

The products are necessary used in the instrument installation progress for industrial temperature controlling, which is applicable to install temerature-measuring components in the piping or devices, mainly used for the devices, such as: thermoelectric couples, armoured thermoelectric couple of thermal resistance, double-metal thermograph, surface thermoelectric couples, pressure thermograph and so on. There are many kinds of installation methods, for example, by threads, mounting by connectors, protective-sleeve inserting. There are so many advantages of the products as following: small size, compact installation, convenient maintenance, applicable for corrosive or non-corrosive fields.

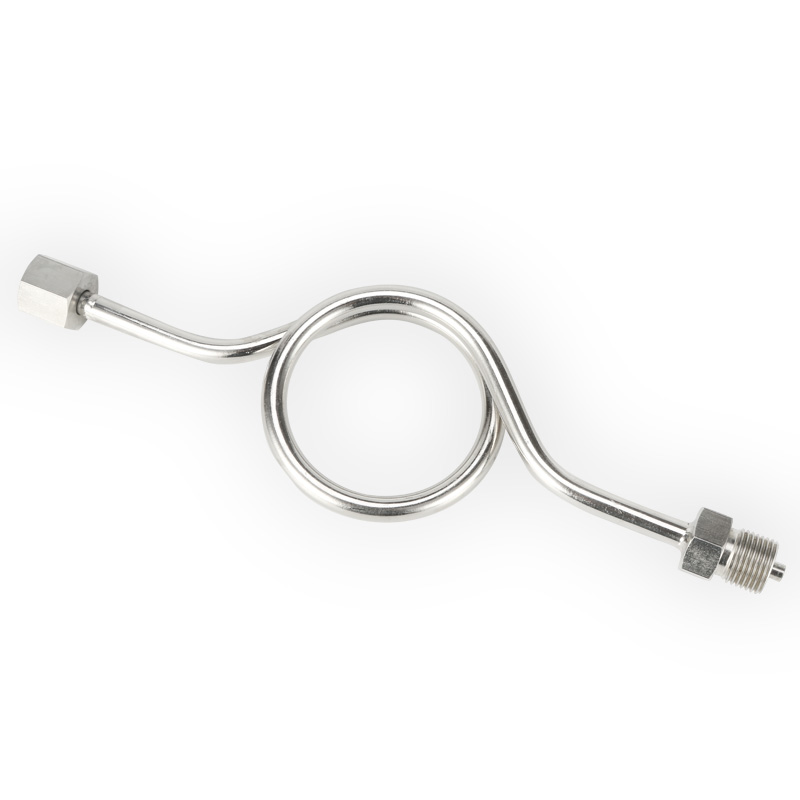

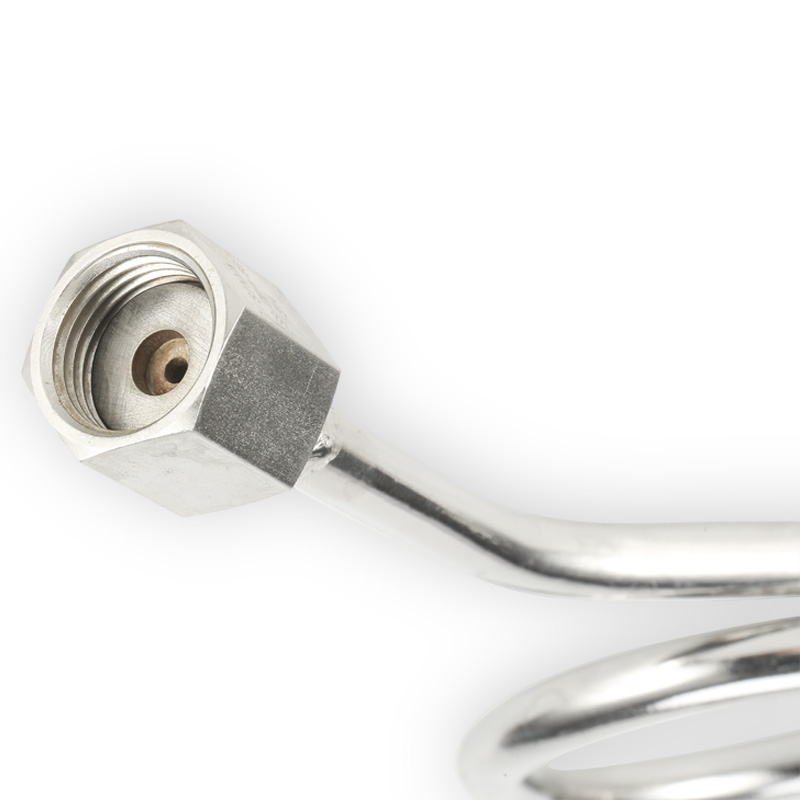

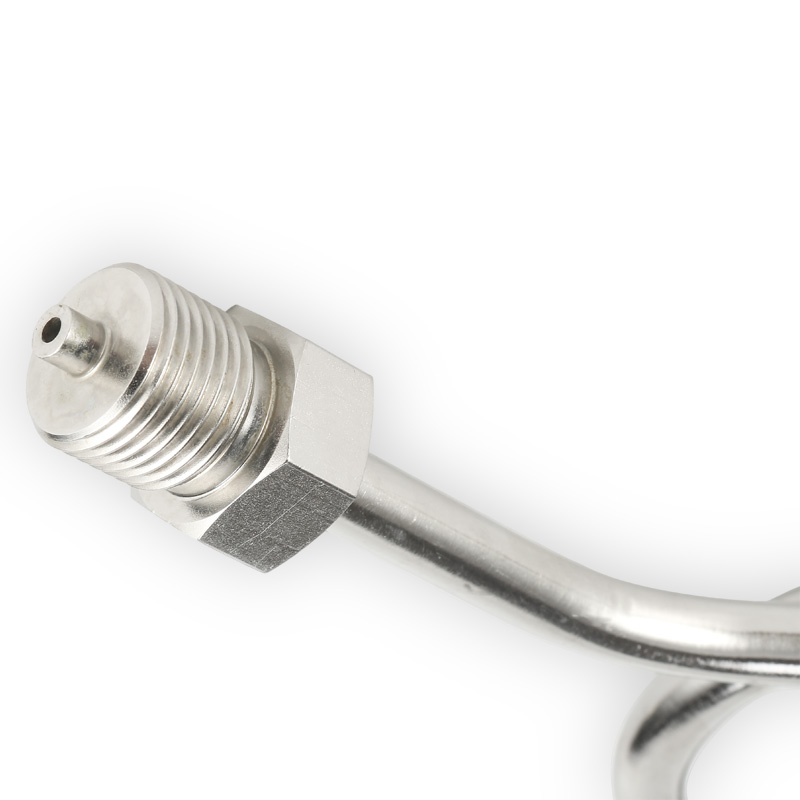

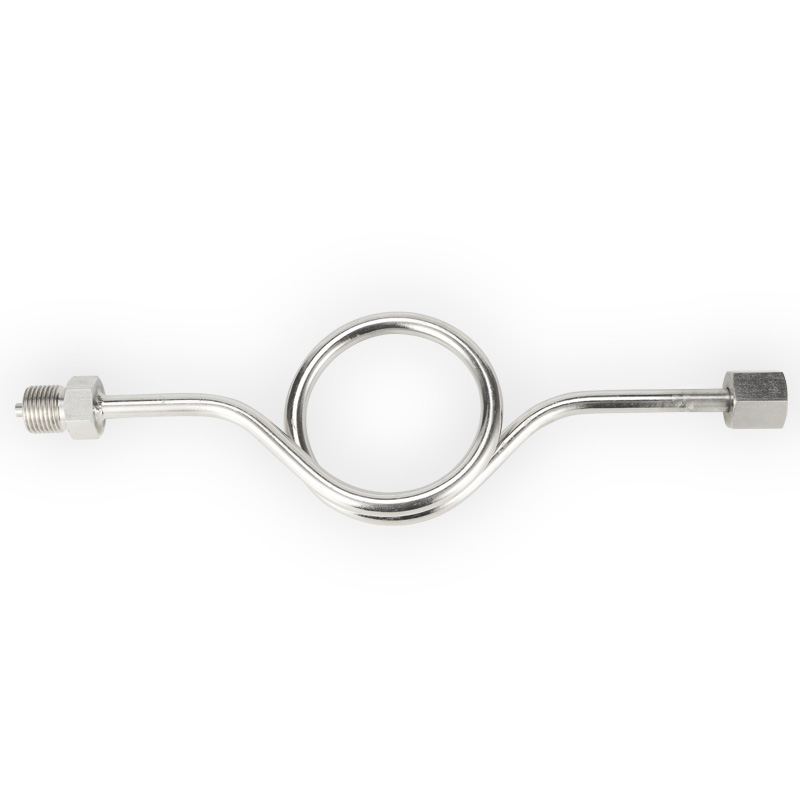

-TW14 Pressure gauge Syphon Tube
Order information	P	P1	Φ×t	D		L		L1
Order information	P	P1	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
-TW14-M14	M14×1.5	M14×1.5	Φ10×2	3.54	90	3.35	85	3.74	95
-TW14-M20	M20×1.5	M20×1.5	Φ14×2	3.94	100	4.72	120	5.12	130
-TW1 4-6G	G3/8	G3/8	Φ10×2	3.5 4	90	3.3 5	85	3.7 4	95
-TW1 4-8G	G1/2	G1/2	Φ14×2	3.9 4	100	4.7 2	120	5.1 2	130
-TW1 4-6N	NPT3/8	NPT3/8	Φ10×2	3.5 4	90	3.3 5	85	3.7 4	95
-TW1 4-8N	NPT1/2	NPT1/2	Φ14×2	3.9 4	100	4.7 2	120	5.1 2	130
-TW1 4-6P	BSPT3/8	BSPT3/8	Φ10×2	3.5 4	90	3.3 5	85	3.7 4	95
