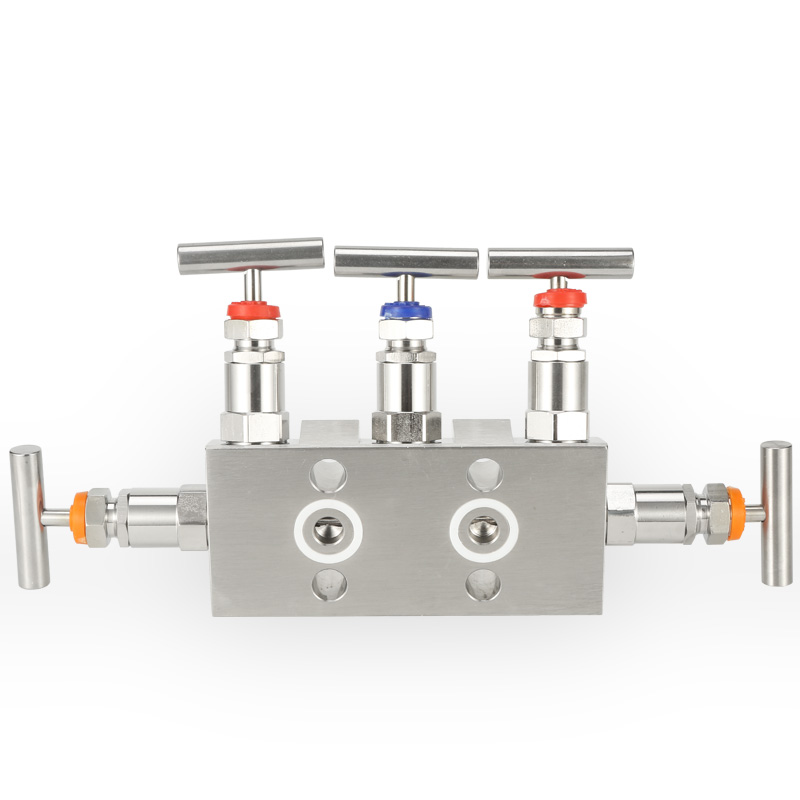

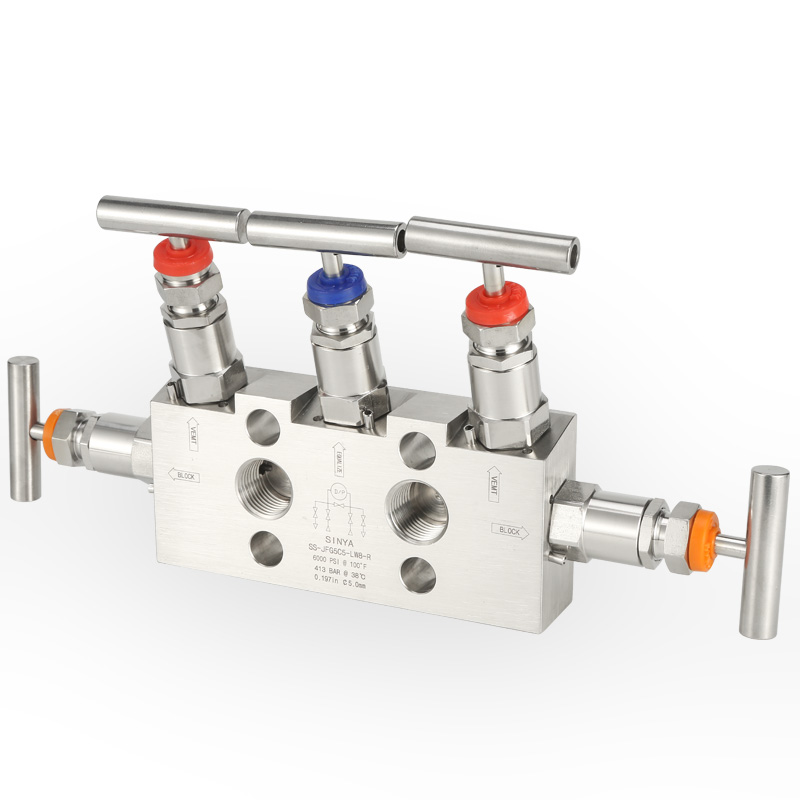

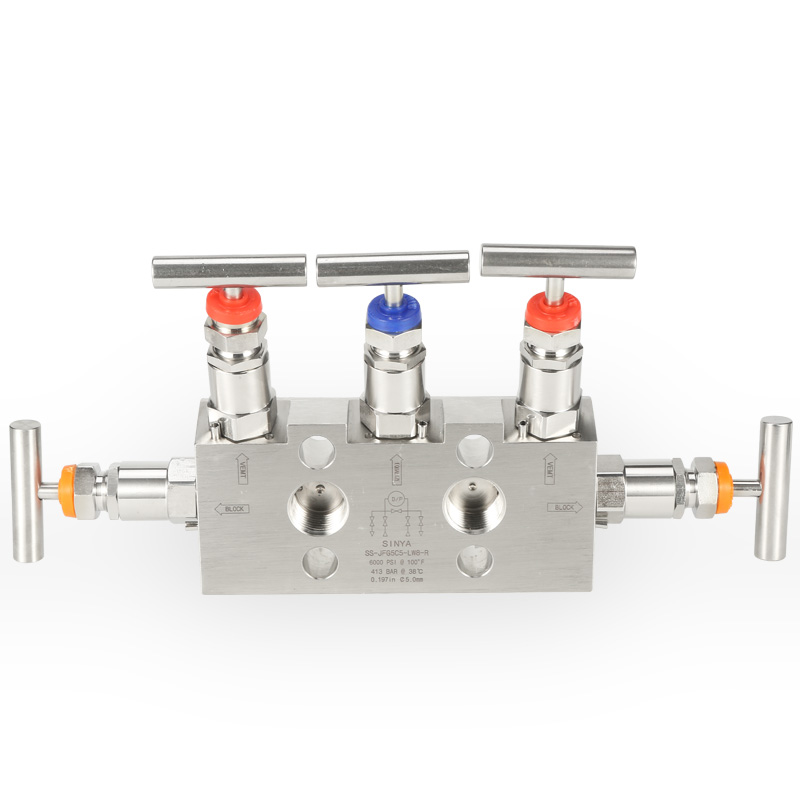

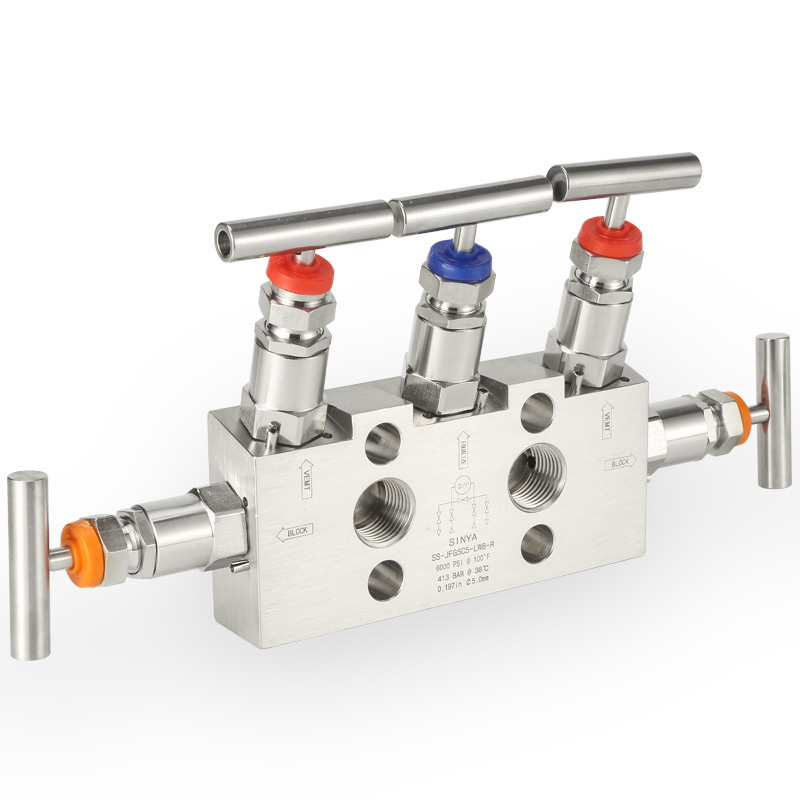

JFG5C5 / Instrument Industrial 5 Valve Manifold for Pressure Transmittes / Manufacture and Supplier / Stainless Steel / Different Pressure Transmitter / 6000 PSI

1.Series valve manifolds are designed as 2-valve manifolds for static pressure and liquid level.3 -valve & 5-valve are designed for differential pressure.

2.Series valve manifolds are designed to be of horizontal type.The tube fittings of 1/2 in & Φ 12mm are used for manifolds connection by 1/2 infemale and flange (MSSSP-99).

3.Stainless steel pins are supplied accordingly between the bonnet and the valves ealing to prevent the bonnet dropping from the body.

4.Sealing gasket is not necessary since the body and the bonnet are sealed by metal to metal sealing.

5. One-piece designing can increase the strength.

6.The size of the center hole 2-1/8" in (54mm) is convenient for the instrument calibrating with flange connection.

7.Female tube fittings and NPT thread fittings are used for long-distance installation.



Order information
Inlet / Process Interface
Outlet / Instrument
Measuring Port / Drain Port
-JFG5C1-LW8-D
1/2NPT Female
Coplanar flange

1/4"NPT Female
-JFG5C1-SK8-D
1/2"-SK(LOK)
Coplanar flange
1/4"NPT Female
