SK-LOK    Valves     JFG2B3-LW4-R / 1/2"NPT Female Stainless Steel Pressure Gauge Valve Instrumentation 2 Valve Manifolds 2 Way Manifolds Valves

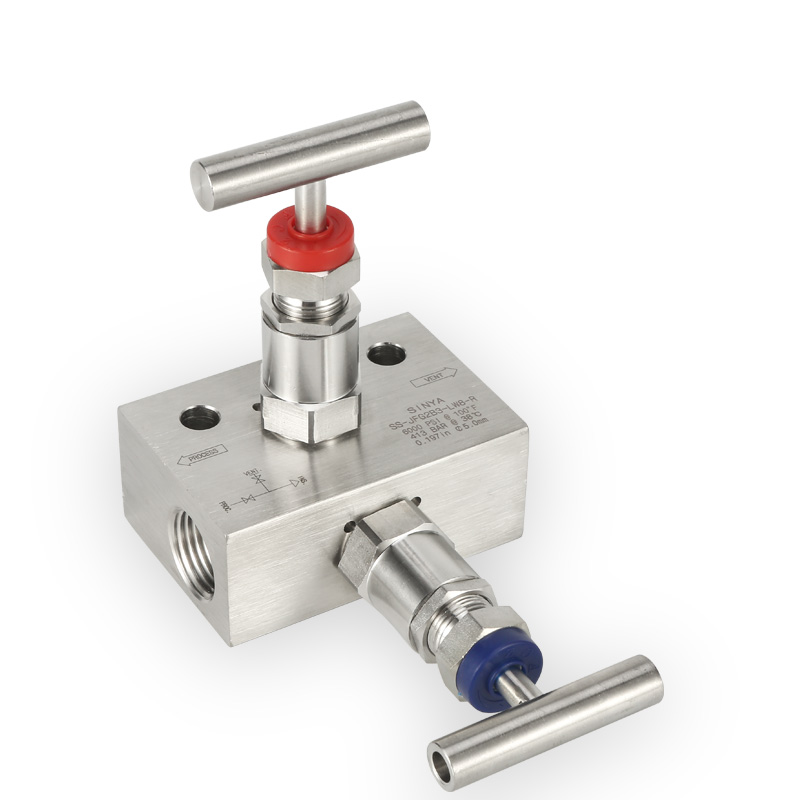

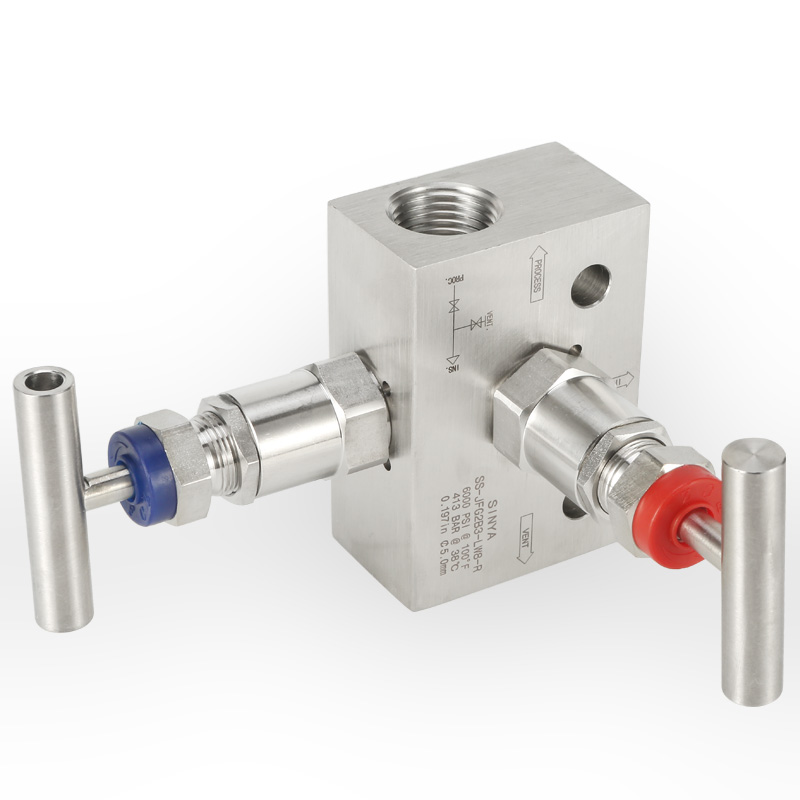

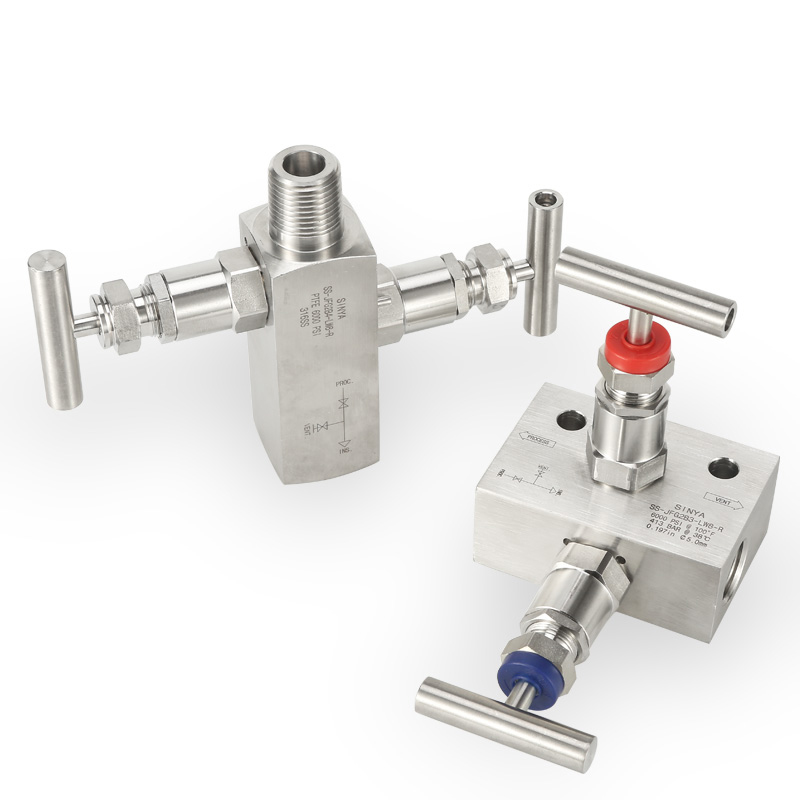

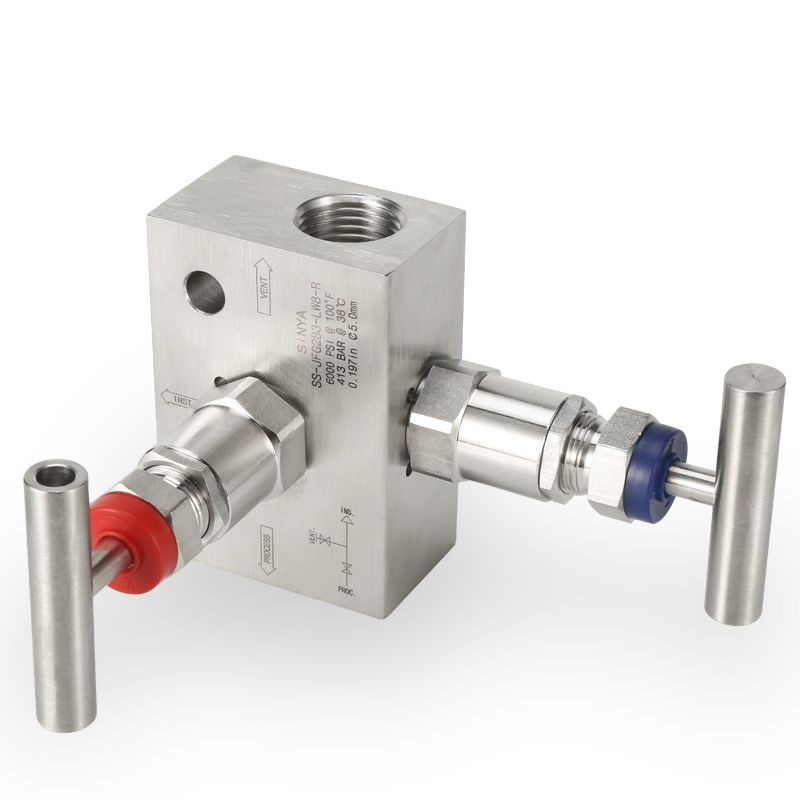

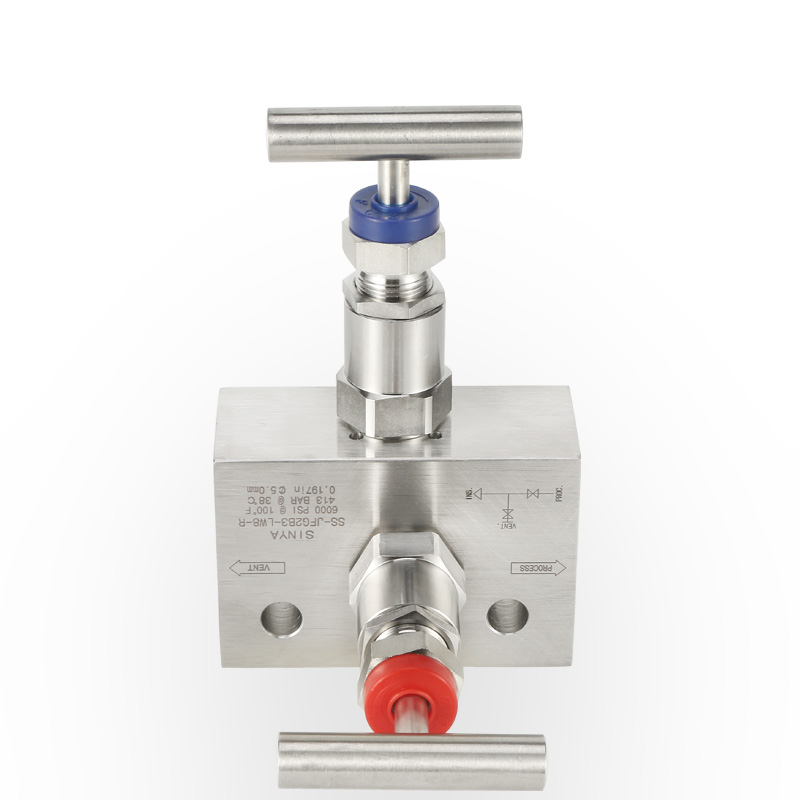

JFG2B3-LW4-R / 1/2"NPT Female Stainless Steel Pressure Gauge Valve Instrumentation 2 Valve Manifolds 2 Way Manifolds Valves

1.Series valve manifolds are designed as 2-valve manifolds for static pressure and liquid level.3 -valve & 5-valve are designed for differential pressure.

2.Series valve manifolds are designed to be of horizontal type.The tube fittings of 1/2 in & Φ 12mm are used for manifolds connection by 1/2 infemale and flange (MSSSP-99).

3.Stainless steel pins are supplied accordingly between the bonnet and the valves ealing to prevent the bonnet dropping from the body.

4.Sealing gasket is not necessary since the body and the bonnet are sealed by metal to metal sealing.

5. One-piece designing can increase the strength.

6.The size of the center hole 2-1/8" in (54mm) is convenient for the instrument calibrating with flange connection.

7.Female tube fittings and NPT thread fittings are used for long-distance installation.



2 Valve Manifolds
Order information
Inlet / Process Interface
Outlet / Instrument
Measuring Port / Drain Port
-JFG2B3-LW4-R
1/4NPT Female
1/4NPT Female
1/4"NPT Female
