SK-LOK Home  ꄲ  Others  ꄲ  Sample Cylinders  ꄲ  Double-EndedCylinders / Mlni hydraulic Oxygen Cylinder / 1000cc Miniature Double Ended Sample Cylinders / 1/2 Female Npt 1000cc 316L Ss 304L Stainless Steel / Single End Miniature Sample Cylinders

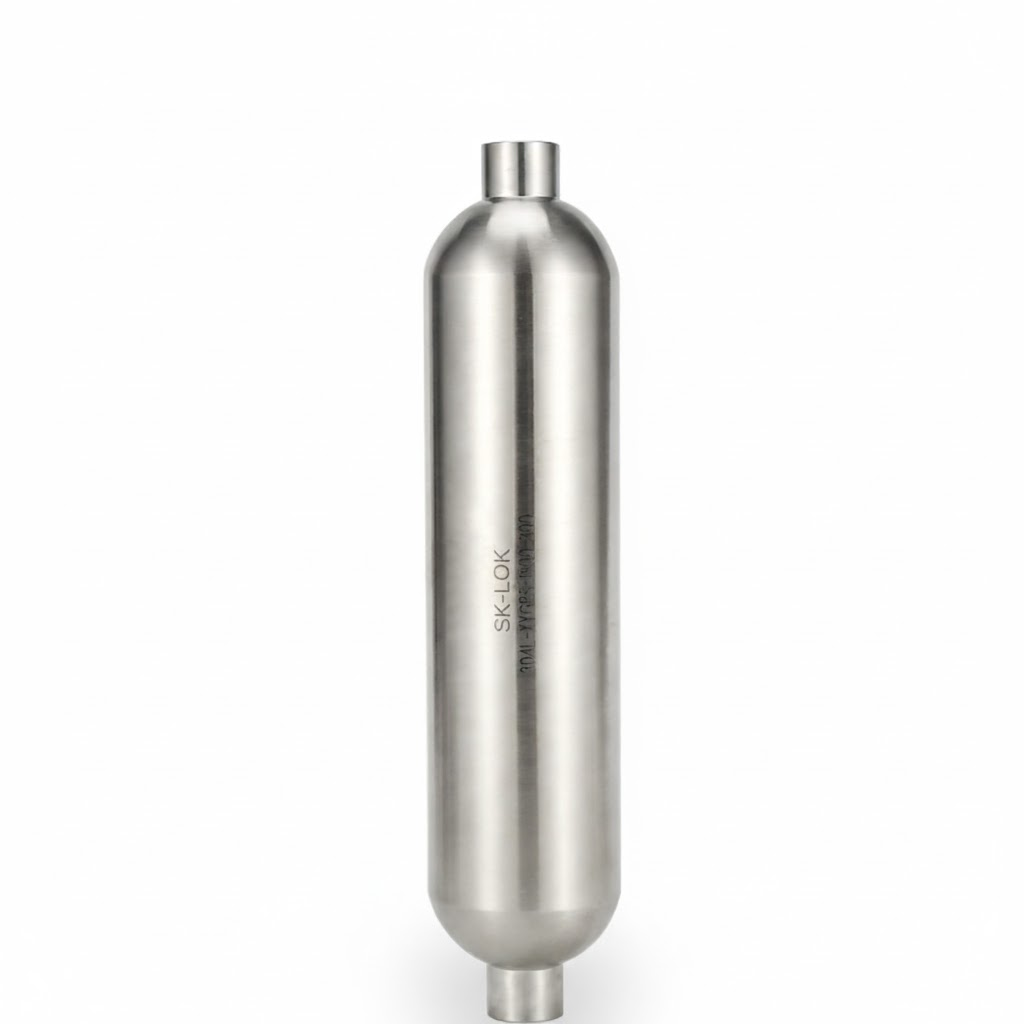

Double-EndedCylinders / Mlni hydraulic Oxygen Cylinder / 1000cc Miniature Double Ended Sample Cylinders / 1/2 Female Npt 1000cc 316L Ss 304L Stainless Steel / Single End Miniature Sample Cylinders

1.316l stainless steel and alloy 400316l stainless steel and alloy 400

2.working pressure up to 5000 psig (344 bar)

3.Sizes from 10 to 3785 cm3 (1 gal)Sizes from 10 to 3785 cm3 (1 gal)

4.Body made of seamless tubing provides consistent wall thickness, size, and capacity.

5.Smooth internal neck transition allows easy cleaning and eliminates trapped ̀ uids.

6.Cold-formed female NPT threads provide greater strength.

7.Heavy-wall end connections provide strength andresist ̀ aring.

8. Full-penetration gas tungsten arc-weld construction provides leak-tight sample containment.

9.50, 300, and 500 cm3 sizes meet a variety of sampling needs.

10.Stainless steel construction resists intergranular corrosion.

11.cylinders are hydrostatically proof tested at 1000 psig (69 bar) minimum.
Material
316L SS
316L SS、304L SS
304L SS
Alloy 400
304L SS
Specifications
XYGPS-5000
XYGPS-1800
XYGPSD-1800
XYGPS-1800
XYGPD-500
Temperature℃（°F）
Working Pressure
psig (bar)
-53（65）to 37（100）
5000(344)
1800(124)
1800(124)
1800(124)
500(34.4)
93（200）
3960(272)
1360(93.7)
1360(93.7)
1580(108)
500(34.4)
148（300）
3570(245)
1230(84.7)
1230(84.7)
1490(102)
500(34.4)
204（400）
3290(226)
1130(77.8)
1130(77.8)
1430(98.5)
500(34.4)
260（500）
3060(210)
1050(72.3)
1050(72.3)
1420(97.8)
500(34.4)
315（600）
2920(201)
1000(68.9)
1000(68.9)
1420(97.8)
500(34.4)
343（650）
2870(197)
980(67.5)
980(67.5)
1420(97.8)
500(34.4)
371（700）
2810(193)
970(66.8)
970(66.8)
1420(97.8)
500(34.4)
398（750）
2750(189)
950(65.4)
950(65.4)
1410(97.1)
500(34.4)
426（800）
2700(186)
930(64.0)
930(64.0)
-
500(34.4)
454（850）
2640(181)
-
-
-
-

Order Information

Material/
Specifications

Working Pressure Psig(bar)
Internal volume (cm3)
±5

P
(NPT)

Size  in.(mm）
A
N
T
Single-endedcylinders
304L-XYGPD-500-150



304L SS/ XYGPD-500



500（34.4）

150



1/4



2.00(50.8)
4.88
(124)



0.093
(2.4)
304L-XYGPD-500-300

300
8.62
(219)
304L-XYGPD-500-500

500
13.6
(345)
Double-EndedCylinders
304L-XYGPS-1800-40








304L SS/ XYGPS-1800








1800（124）

40

1/8
1.25
(31.8)
3.88
(98.6)
0.070
(1.8)
304L-XYGPS-1800-50

50





1/4

1.50
(38.1)
3.75
(95.2)





0.093
(2.4)
304L-XYGPS-1800-75

75
4.94
(125)
304L-XYGPS-1800-150

150



2.00
(50.8)
5.25
(133)
304L-XYGPS-1800-300

300
8.94
(227)
304L-XYGPS-1800-400

400
11.4
(290)
304L-XYGPS-1800-500

500
13.8
(351)
304L-XYGPS-1800-1000






304L SS/ XYGPSD-1800







1800(124)


1000
1/4

3.50
(88.9)

10.9
(277)

0.180
(4.6)
304L-XYGPS-1800-1000
1/2
304L-XYGPS-1800-2250


2250
1/4



4.00
(102)

17.2
(437)



0.206
(5.2)
304L-XYGPS-1800-2250
1/2
304L-XYGPS-1800-3785


3785
1/4

26.7
(678)
304L-XYGPS-1800-3785
1/2
316L-XYGPS-1800-150


316L SS/ XYGPS-1800



1800（124）

150












1/4



2.00(50.8)
5.25
(133)



0.093
(2.4)
316L-XYGPS-1800-300

300
8.94
(227)
316L-XYGPS-1800-500

500
13.8
(351)
316L-XYGPS-1800-150


316L SS/ XYGPS-5000



5000（344）

150



1.90(48.2)
8.00
(203)



0.240
(6.1)
316L-XYGPS-1800-300

300
14.5
(368)
316L-XYGPS-1800-500

500
23.5
(597)
Alloy 400-XYGPS-1800-150




Alloy400/ XYGPS-1800




1800（124）

150




2.00(50.8)
5.25
(133)




0.093
(2.4)
Alloy 400-XYGPS-1800-300

300
8.94
(227)
Alloy400-XYGPS-1800-500

500
13.8
(351)
