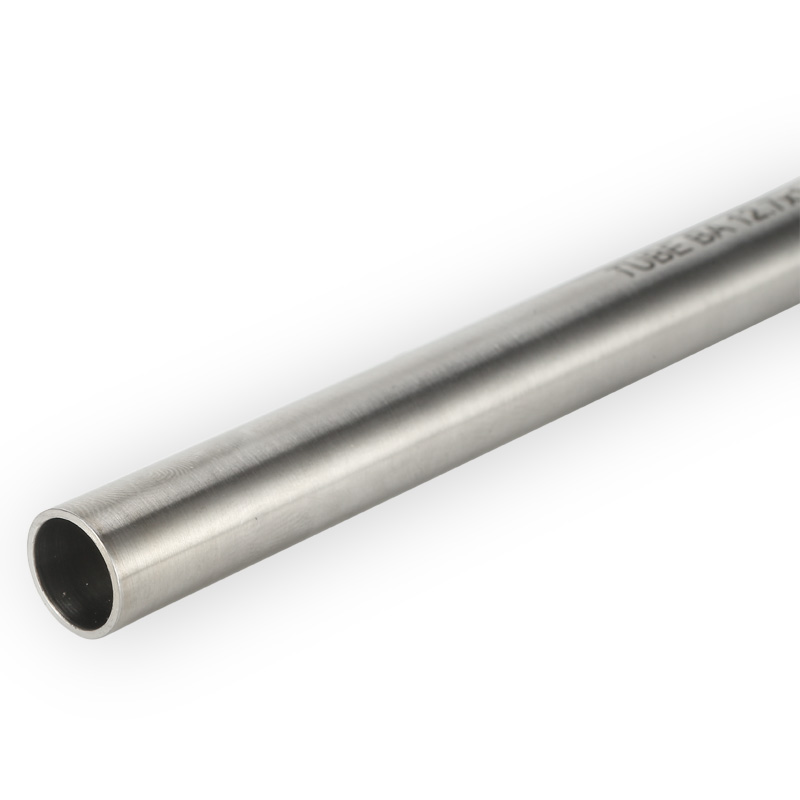

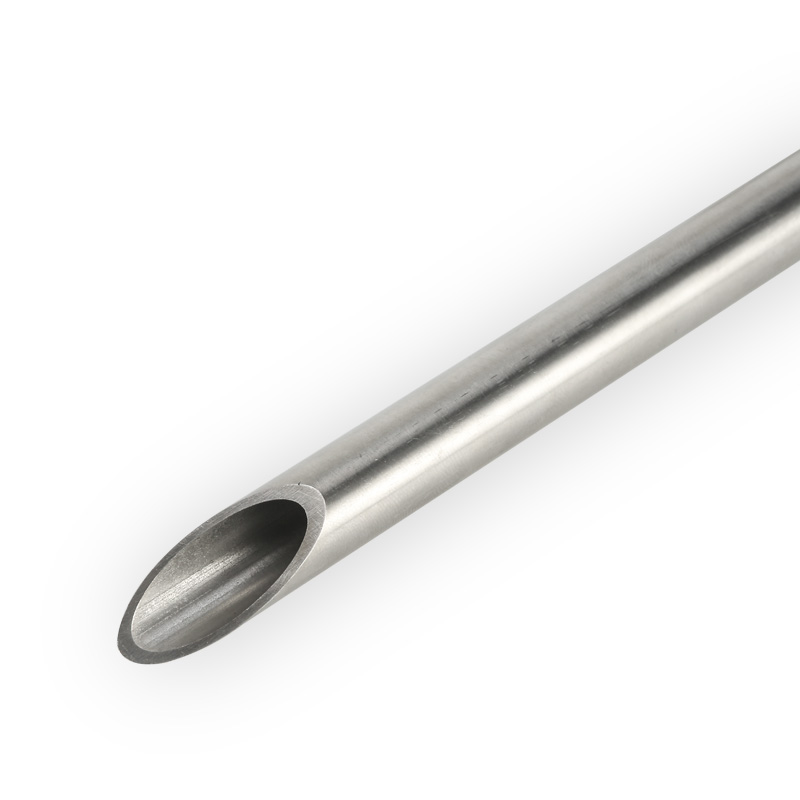

Instrumentaiton Seamless Tube Tubing ASTM A269 A312 A213 Bright Anneal Pickled Stainless steel 304L,316L 1/4,3/8,1/2,3/4 1 inch
|
|
|
|
Allowable stress value between -20 F and 100 F(-28.9 C~ 37.8 C) is 19,500 psi. |
||||
|
Safety factor is 4 Consider tensile strength is 75,000 psi. |
||||
|
Note: For gas service,please DON'T select tube thickness of the shaded area. |
||||
|
Ordering Information: |
||||
|
316/316L-1/2"-0.065-6M-BA Means 316/316L Seamless ASTM A269 Tube 1/2"OD x WT0.065" x 6 Meter Bright Annealed. |
||||
|
316/316L-12-1.25-6M-AP Means 316/316L Seamless ASTM A269 Tube 12mm OD x WT1.25mm x 6 Meter Annealing Pickled |
|
Tube OD |
Tube Wall Thickness (Inch) |
|||||||
|
(Inch) |
0.028 |
0.035 |
0.049 |
0.065 |
0.083 |
0.095 |
0.109 |
0.120 |
|
1/8 |
8500 |
10900 |
|
|
|
|
|
|
|
3/16 |
5400 |
7000 |
10200 |
|
|
|
|
|
|
1/4 |
4000 |
5100 |
7500 |
10200 |
|
|
|
|
|
5/16 |
|
4000 |
5800 |
8000 |
|
|
|
|
|
3/8 |
|
3300 |
4800 |
6500 |
|
|
|
|
|
1/2 |
|
2600 |
3700 |
5100 |
6700 |
|
|
|
|
5/8 |
|
|
2900 |
4000 |
5200 |
6000 |
|
|
|
3/4 |
|
|
2400 |
3300 |
4200 |
4900 |
5800 |
|
|
7/8 |
|
|
2000 |
2800 |
3600 |
4200 |
4800 |
|
|
1 |
|
|
|
2400 |
3100 |
3600 |
4200 |
4700 |
|
Tube OD |
Tube Wall Thickness (mm) |
|||||
|
0.71 |
0.89 |
1 |
1.25 |
1.5 |
1.65 |
|
|
3 |
10800 |
13800 |
15300 |
|
|
|
|
4 |
7900 |
10100 |
11500 |
14400 |
|
|
|
6 |
5000 |
6500 |
7400 |
9400 |
11500 |
12700 |
|
8 |
|
4700 |
5800 |
6800 |
8400 |
9300 |
|
10 |
|
3700 |
4200 |
5300 |
6500 |
7300 |
|
12 |
|
3000 |
3400 |
4400 |
5300 |
5900 |
|
16 |
|
|
2500 |
3200 |
3900 |
4300 |
|
18 |
|
|
|
2800 |
3400 |
3800 |
|
20 |
|
|
|
2500 |
3000 |
3400 |
|
22 |
|
|
|
2300 |
2800 |
3000 |
|
25 |
|
|
|
2000 |
2400 |
2700 |
|
Tube OD |
Tube Wall Thickness (mm) |
||||||
|
(mm) |
2 |
2.11 |
2.41 |
2.5 |
2.77 |
3 |
3.05 |
|
3 |
|||||||
|
4 |
|||||||
|
6 |
|||||||
|
8 |
|
||||||
|
10 |
|||||||
|
12 |
6800 |
7200 |
|
|
|
|
|
|
16 |
5300 |
5700 |
6600 |
6800 |
|
|
|
|
18 |
4700 |
5000 |
5800 |
6000 |
6700 |
|
|
|
20 |
4200 |
4400 |
5100 |
5300 |
6000 |
|
|
|
22 |
3800 |
4000 |
4600 |
4800 |
5400 |
|
|
|
25 |
3300 |
3500 |
4000 |
4200 |
4700 |
5100 |
5200 |
