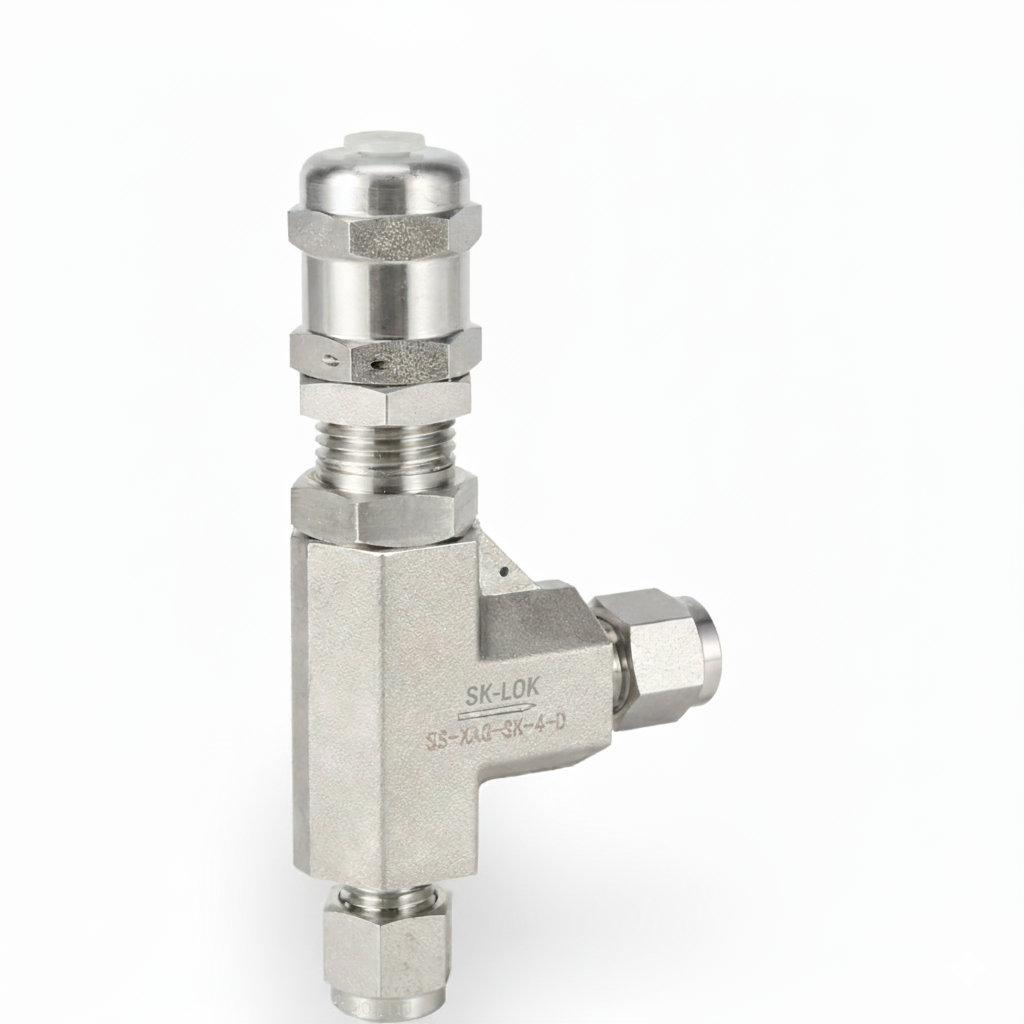

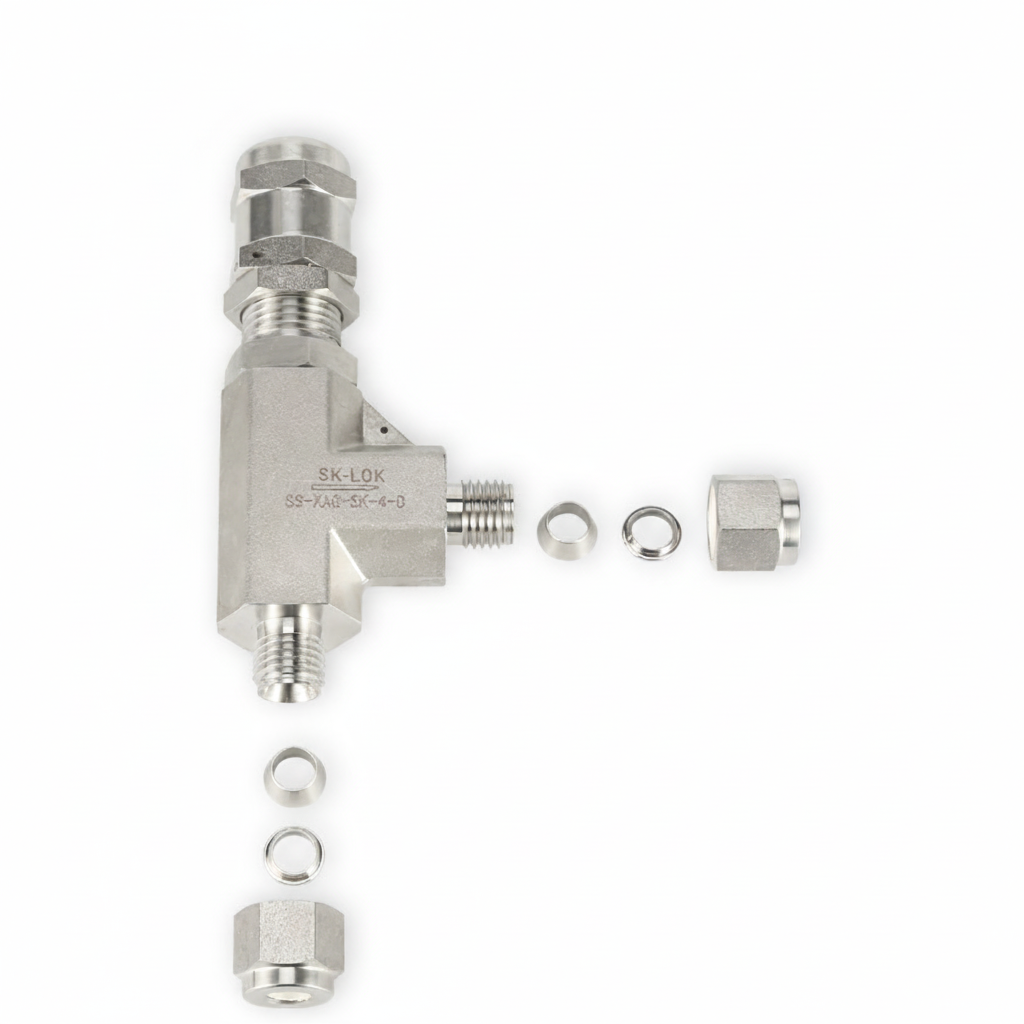

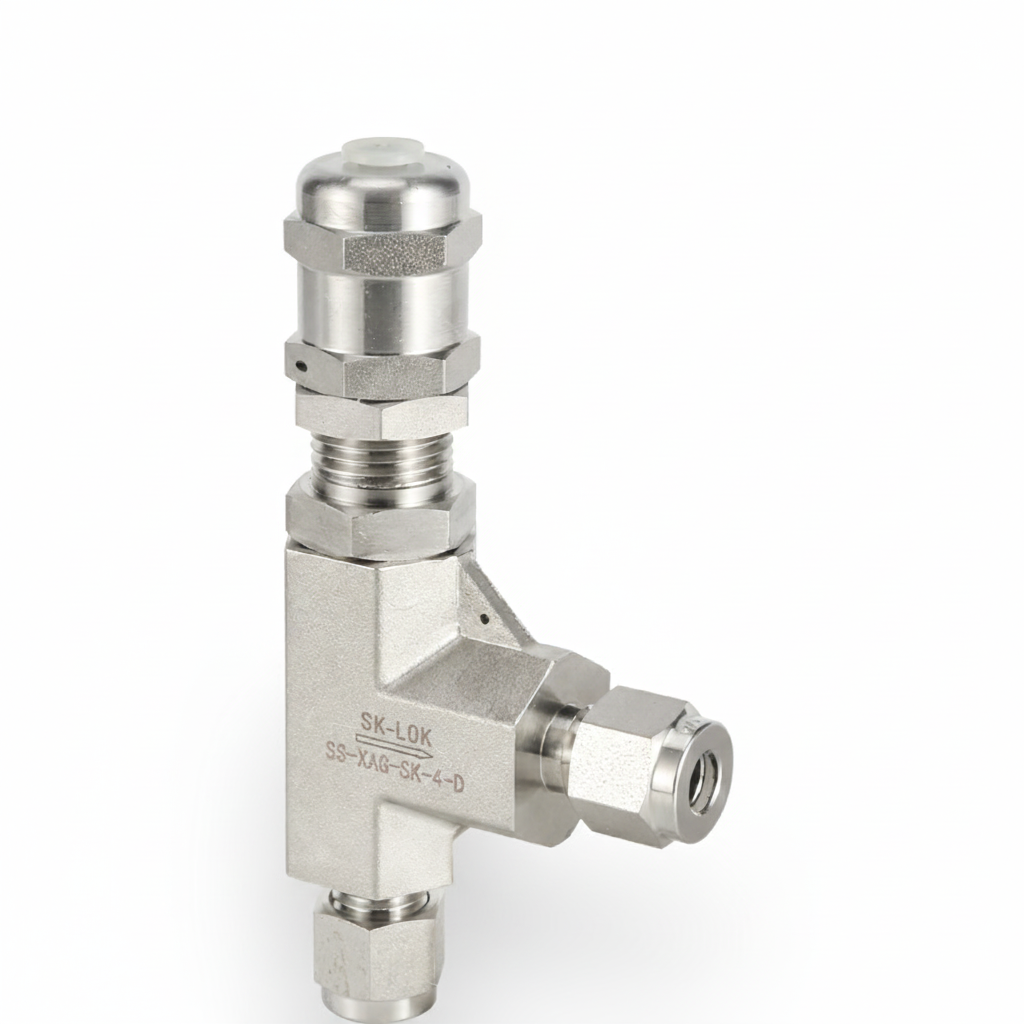

XYF-XAG-SK / Stainless Steel / High Pressure 6000 PSI Compression Ends / Adjustable Proportional Relief Valve Safety Valve / Forged Body Proportional Relief Valve Safety

XYF-XAGS eries valves are relief valves used in low pressure environment.They are normally closed when system pressurer each set pressureing,valves will open and when system pressure below set pressure , valves will close.

■Maximum working pressure 6000Psi (413bar)

■Set pressures from 50 to 6000 psig (3.4 to 413bar)

■Connction type: 1/4“ and 1/2”,6 to 12mm compression ends, female thread npt 1/4 NPT 1/2

■For different setting pressure range, springs are with different colours.

■Springs are changeable for different setting pressure range.



XYF-XAG-SK

Ordering number
connection size
size(mm)
Inlet size
Outlet size
H2
H1
A
B
H
-XAG-SK-4
1/4
1/4
68.6
36.6
40.6
10.9
105.2
-XAG-SK-8
1/2
1/2
104
46.5
46.5
12.7
150.5
-XAG-SK-6mm
6mm
6mm

68.6

36.6

40.6

10.9

105.2
-XAG-SK-8mm
8mm
8mm
-XAG-SK-12mm
12mm
12mm
104
46.5
46.5
12.7
150.5
