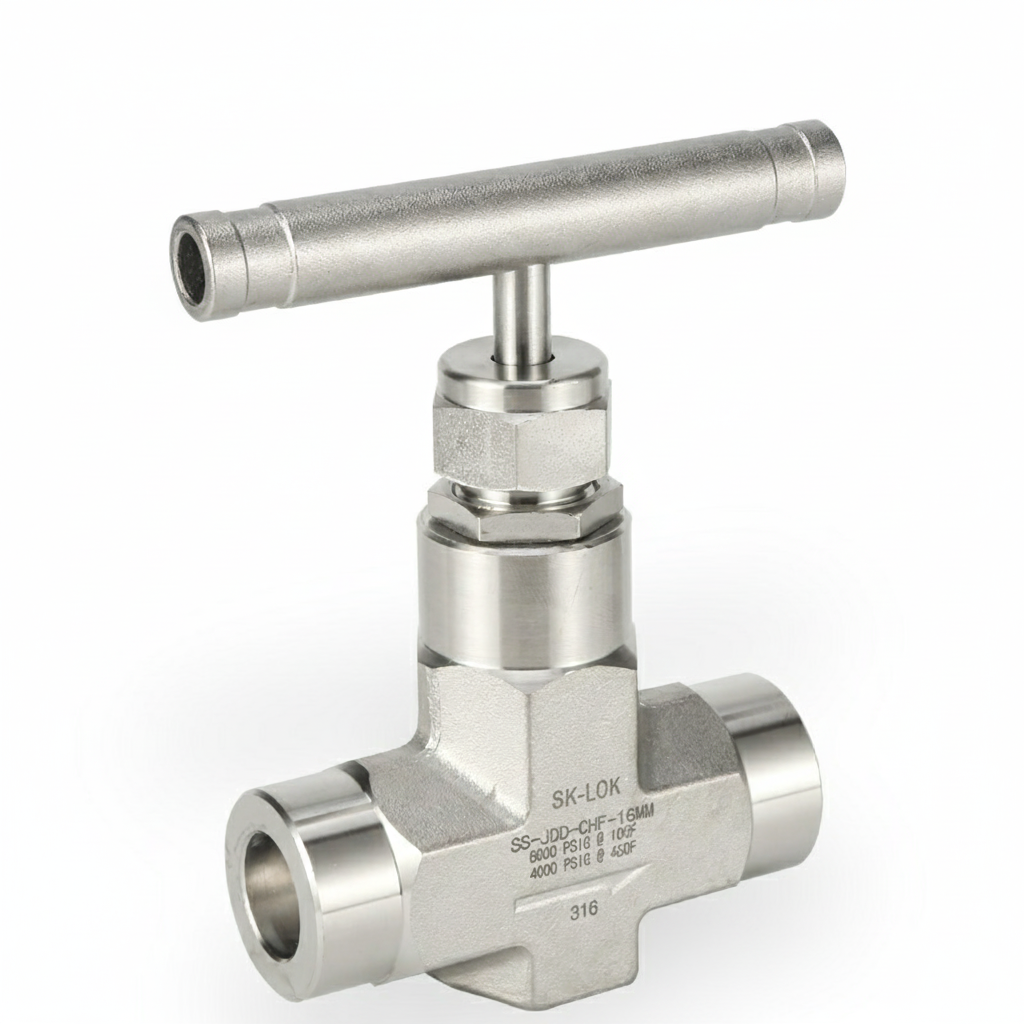

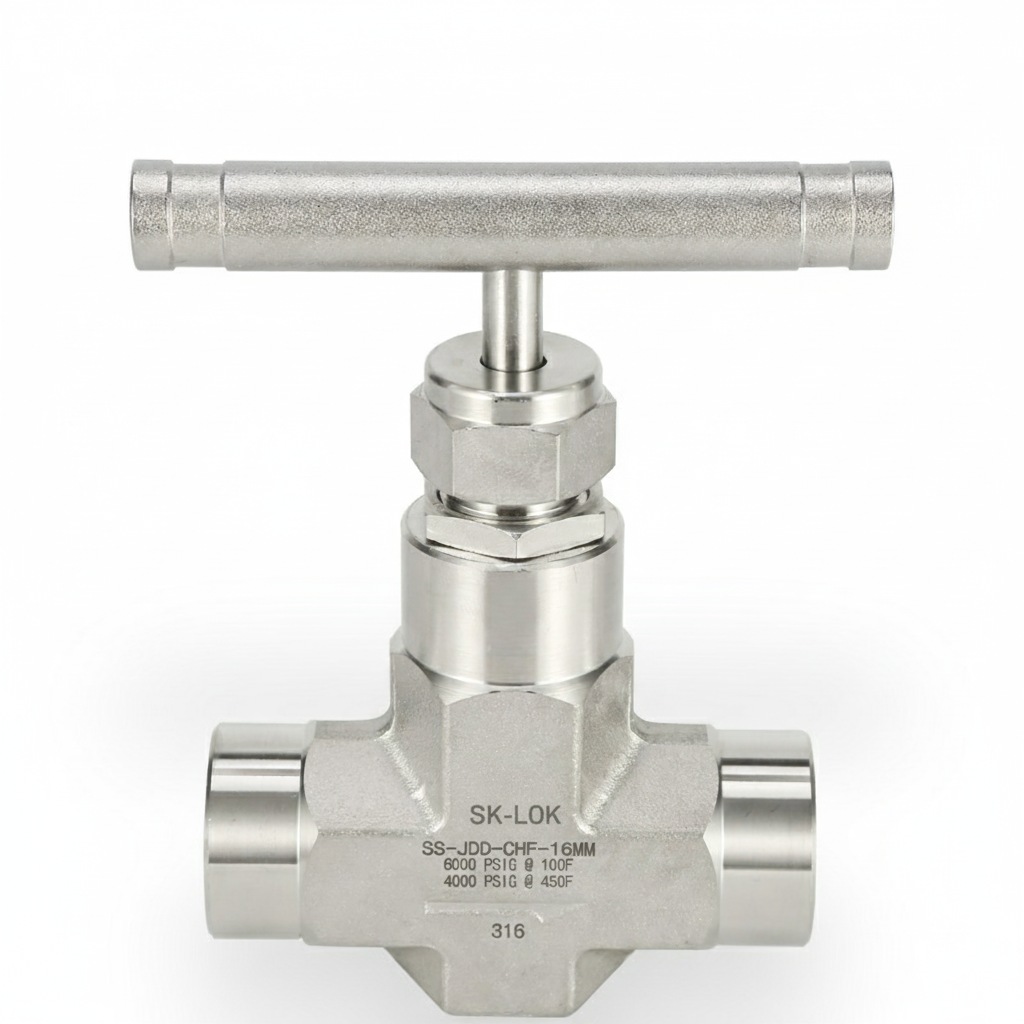

XYF-JDD-CHF socket weld series / Screwed BSPT Forged Metering Gas Needle / 6000 PSI High Temperature / SS Female Needle Valve Manufacturer / Instrument Union Bonnet(Power Plant) Mini Needle Valves







1.316 stainless steel.

2.High pressure graphite seal .

3.Socket weld, gasket seal weld, butt weld .

4.Panel mouting and non-panel mouting .

5.With closeor cut function in fluid system .

6.With compact design can control bigger cv .

7.Two pieces articulated connection make non-rotating stem more reliable .

8.In the fully open position,the safety of the needle seat sealing can be obtained.

9.Stem thead and articulation place at top of packing prevent them from contacting medium .

10.High temperature graphite seal .

11.Working pressure up to 6000Psi（413bar).



XYF-JDD-CHF socket weld series

Ordering Number
End Connection

DN（mm)
Size (mm)
Imperial Tube Butt Weld(in)
F
H
A
-JDD-CHF-6
3/8
3
45
85
58
-JDD-CHF-8
1/2
8
51
101
67
-JDD-CHF-12
3/4
11
77
133
90
-JDD-CHF-16
1
8
51
108
90
metric tube butt weld(mm)
-JDD-CHF-8mm
8
3
45
81
51
-JDD-CHF-10mm
10
5
45
81
51
-JDD-CHF-12mm
12
5
45
81
57
-JDD-CHF-14mm
14
8
51
98
67
-JDD-CHF-16mm
16
8
51
98
67
-JDD-CHF-18mm
18
11
77
133
83
-JDD-CHF-25mm
25
11
77
133
83
