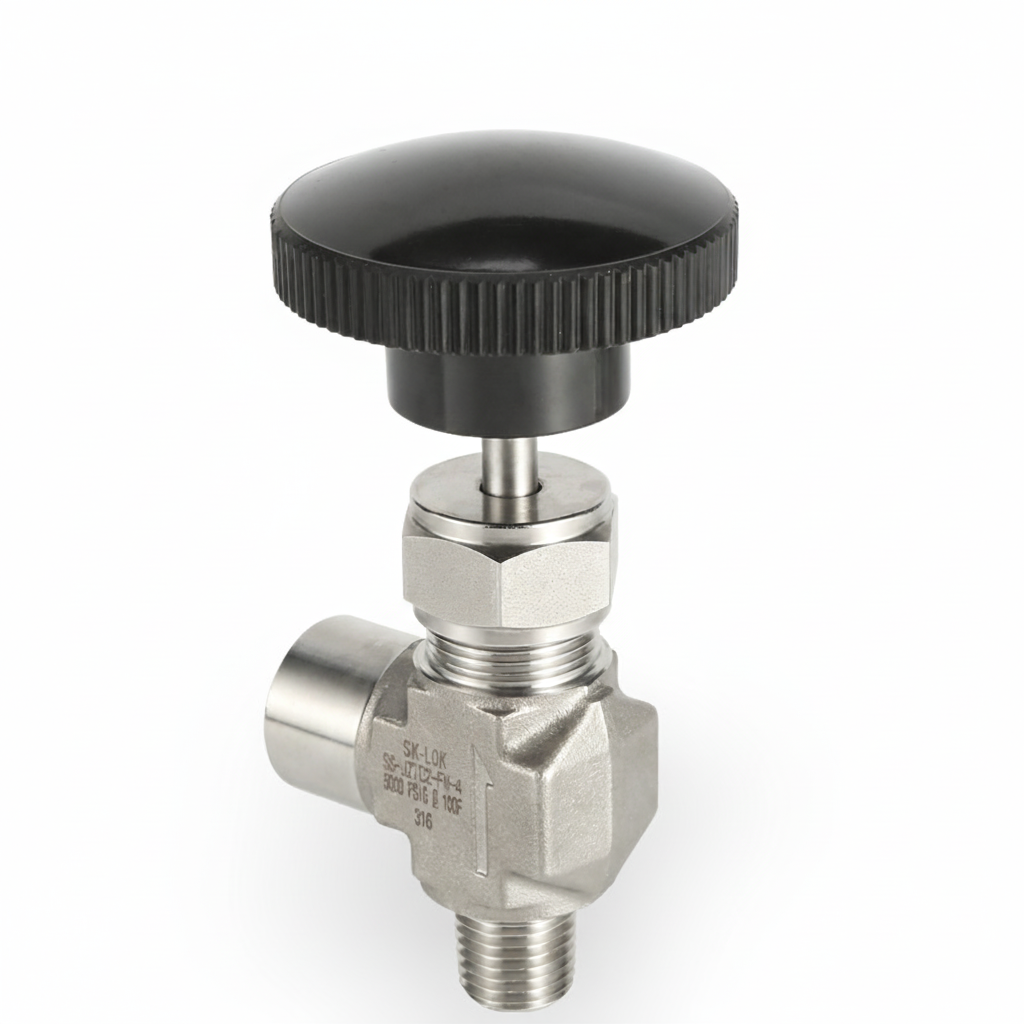

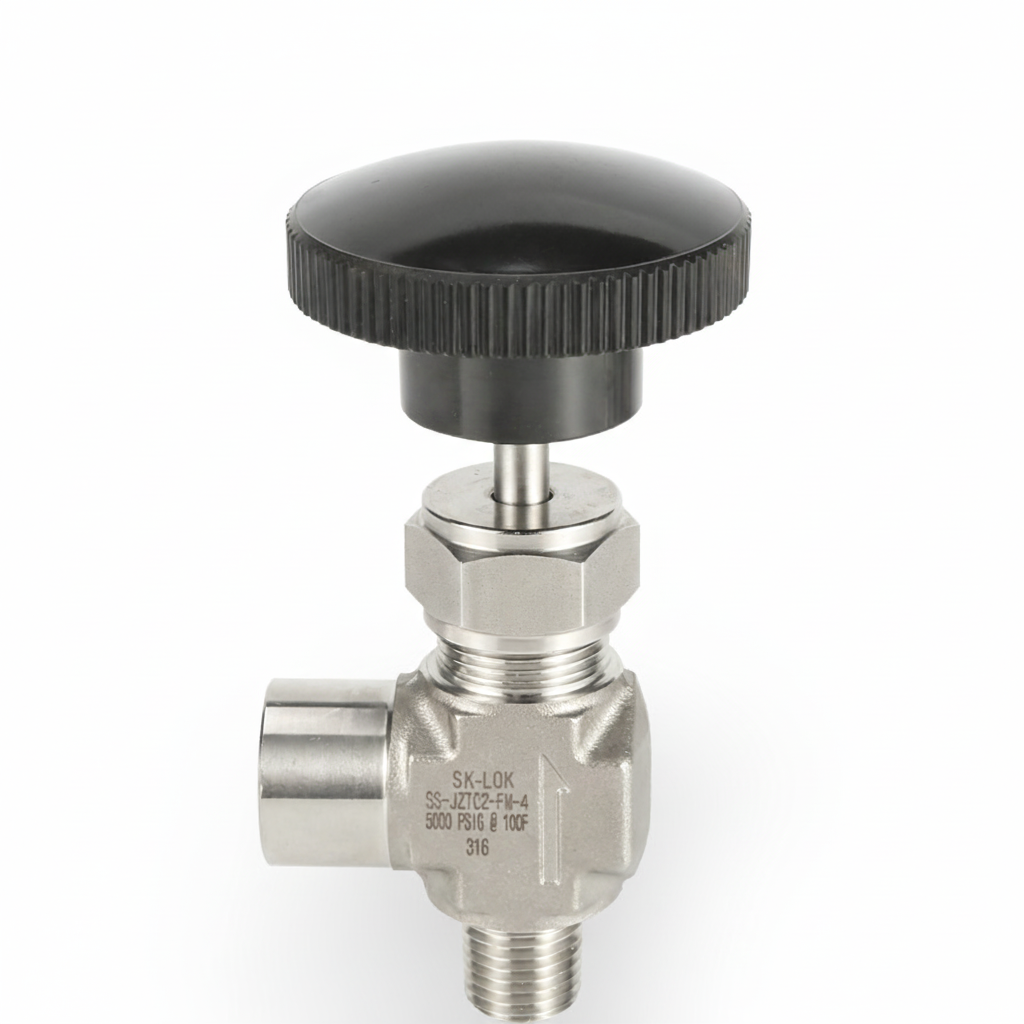

JZTC2 F & M Angle-type Needle Valve / Stainless steel Flow Control Instrumentation 316 Forged Angle Male Female Needle Valve / Stainless Steel Metering Flow Control NeedleValves





1.JZT series needle valves are a kind of instrument valves under high pressure.
2.Suitable for install on the instrument panel or without panels.
3.To execute the closing or shutting-off in the fluid system.
4.To control comparatively big flow with its compact structure.
5.Different kinds of stems for selection.
6.There are two kinds of structures for selection: straight way type & angletype.
7. Four types of hand wheels: ball-type, Round-type, bar metal and non-metal.
8.Working Pressure can be up to 6000PSI (413bar).
9.WorkingTemperature can be up to 315℃（600°F）.





-JZTC2 F & M Angle-type Needle Valve

Order information

End Connection
Orifice
Flow coefficient
A
(in)
(mm)
Cv
(in)
(mm)
-JZTC2-FM-2
NPT1/8
0.080
2.0
0.09
1.36
34.5
-JZTC2-FM-4
NPT1/4
0.1 25
3.2
0.21
1.36
34.5
-JZTC2-FM-6
NPT3/8
0.2 50
6.4
0.73
1.6 1
41
-JZTC2-FM-8
NPT1/2
0.2 50
6.4
0.73
1.7 2
43.8
-JZTC2-FM-R2
BSPT1/8
0.0 80
2
0.09
1.3 6
34.5
-JZTC2-FM-R4
BSPT1/4
0.1 25
3.2
0.21
1.3 6
34.5
-JZTC2-FM-R6
BSPT3/8
0.2 50
6.4
0.73
1.6 1
41
-JZTC2-FM-R8
BSPT1/2
0.2 50
6.4
0.73
1.7 2
43.8

Order information
B
H
F
(in)
(mm)
(in)
(mm)
(in)
(mm)
-JZTC2-FM-2
1.02
26
1.66
42.2
1.75
44.4
-JZTC2-FM-4
1.0 2
26
1.6 6
42.2
1.7 5
44.4
-JZTC2-FM-6
1.2 4
31.5
2.3 1
58.7
2.5 0
63.5
-JZTC2-FM-8
1.5 6
39.5
2.3 1
58.7
2.5 0
63.5
-JZTC2-FM-R2
1.0 2
26
1.6 6
42.2
1.7 5
44.4
-JZTC2-FM-R4
1.0 2
26
1.6 6
42.2
1.7 5
44.4
-JZTC2-FM-R6
1.2 4
31.5
2.3 1
58.7
2.5 0
63.5
-JZTC2-FM-R8
1.5 6
39.5
2.3 1
58.7
2.5 0
63.5
