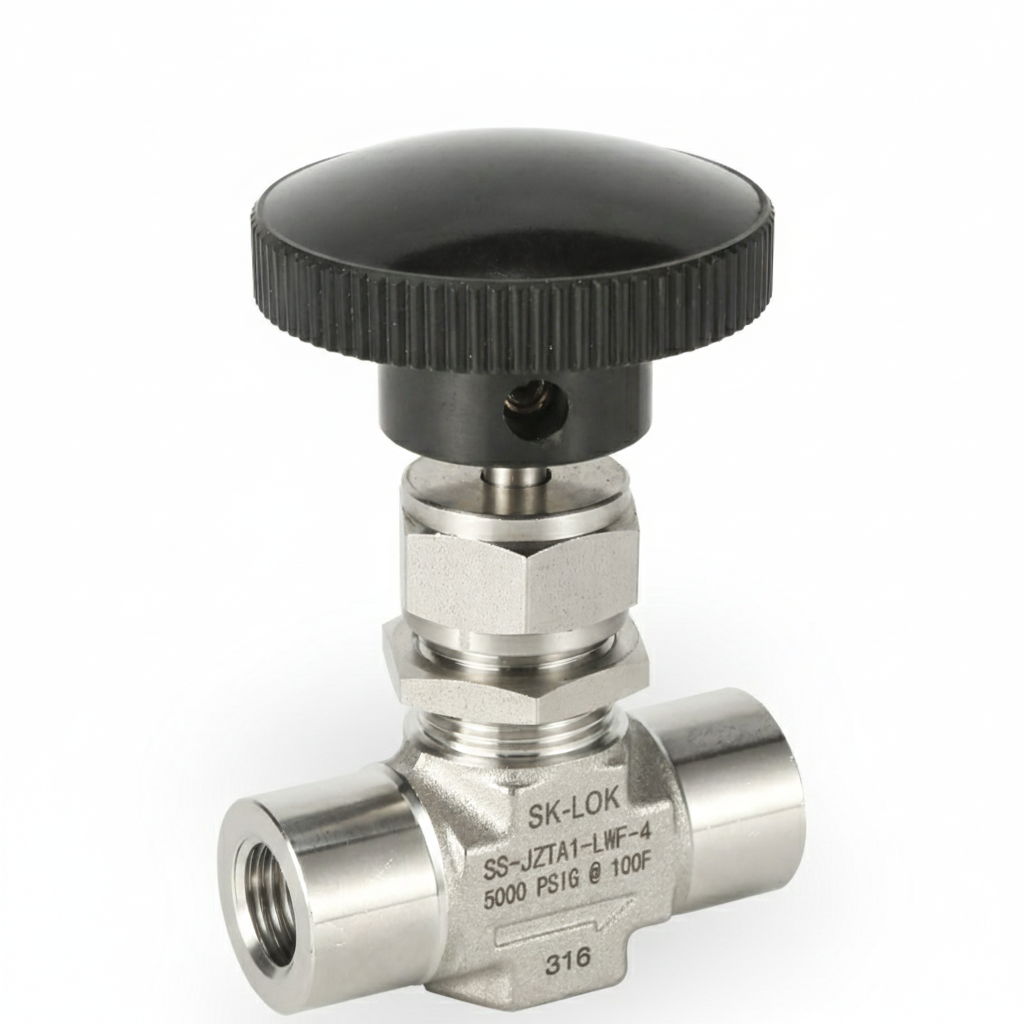

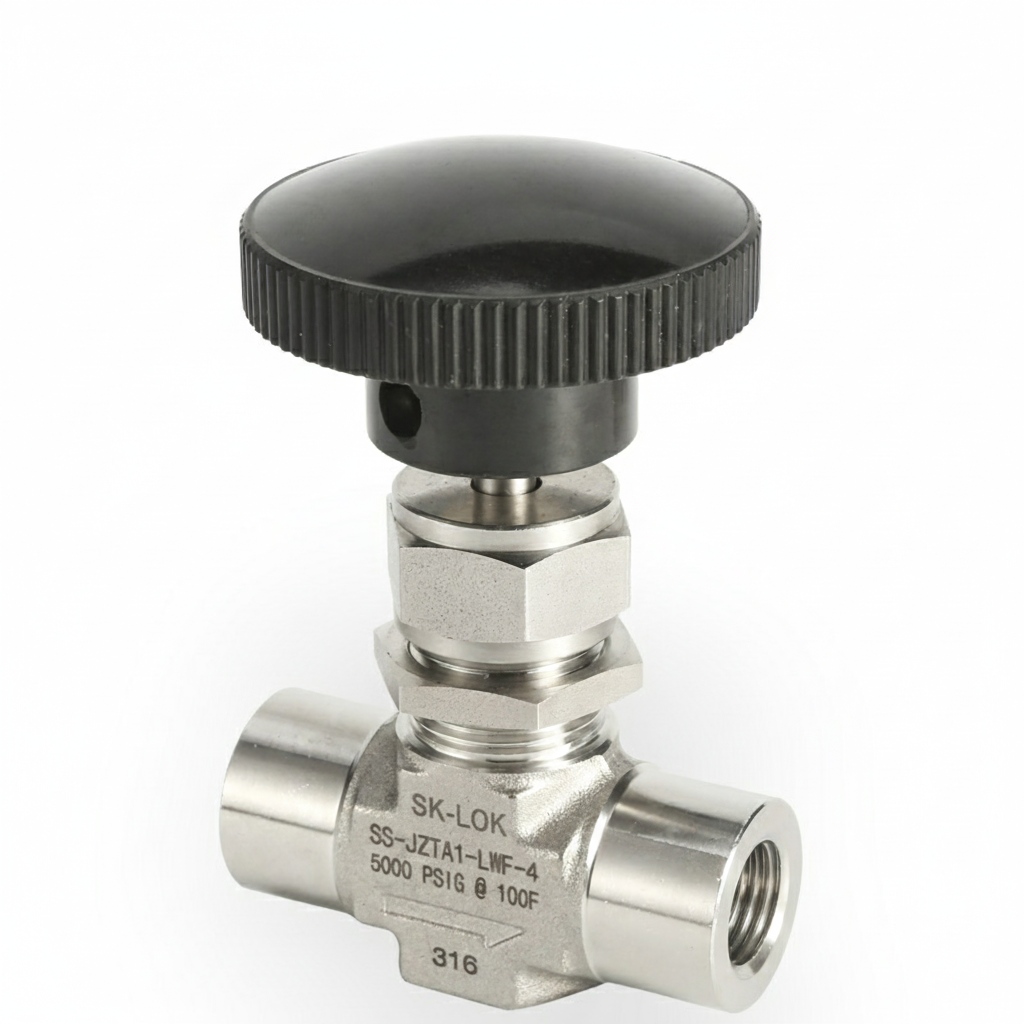

JZTA1 Female Straight Needle Valve / Black Round Handle 1/8" 1/2" Female Low Flow Needle Control Valve / BSPP Female Instrument Needle Valve / Forged Stainless steel 316L



1.JZT series needle valves are a kind of instrument valves under high pressure.
2.Suitable for install on the instrument panel or without panels.
3.To execute the closing or shutting-off in the fluid system.
4.To control comparatively big flow with its compact structure.
5.Different kinds of stems for selection.
6.There are two kinds of structures for selection: straight way type & angletype.
7. Four types of hand wheels: ball-type, Round-type, bar metal and non-metal.
8.Working Pressure can be up to 6000PSI (413bar).
9.WorkingTemperature can be up to 315℃(600°F).





-JZTA1 Female Straight Needle Valve

Order information

End Connection
Orifice
Flow
A
(in)
(mm)
Cv
(in)
(mm)
-JZTA1-LWF-2
NPT1/8
0.08
2
0.09
1.88
47.8
-JZTA1-LWF-4
NPT1/4
0.25
6.4
0.73
2.12
53.8
-JZTA1 -LWF-6
NPT3/8
0.375
9.5
1.8
3
76.2
-JZTA1 -LWF-8
NPT1/2
0.375
9.5
1.8
3
76.2

Order information
D
H
F
(in)
(mm)
(in)
(mm)
(in)
(mm)
-JZTA1-LWF-2
0.47
11.9
2.28
57.9
1.00
25.4
-JZTA1-LWF-4
0.78
19.8
2.9 7
75.4
1.88
47.8
-JZTA1 -LWF-6
1.03
26.2
3.8 8
98.6
3
76.2
-JZTA1 -LWF-8
1.03
26.2
3.8 8
98.6
3
76.2
