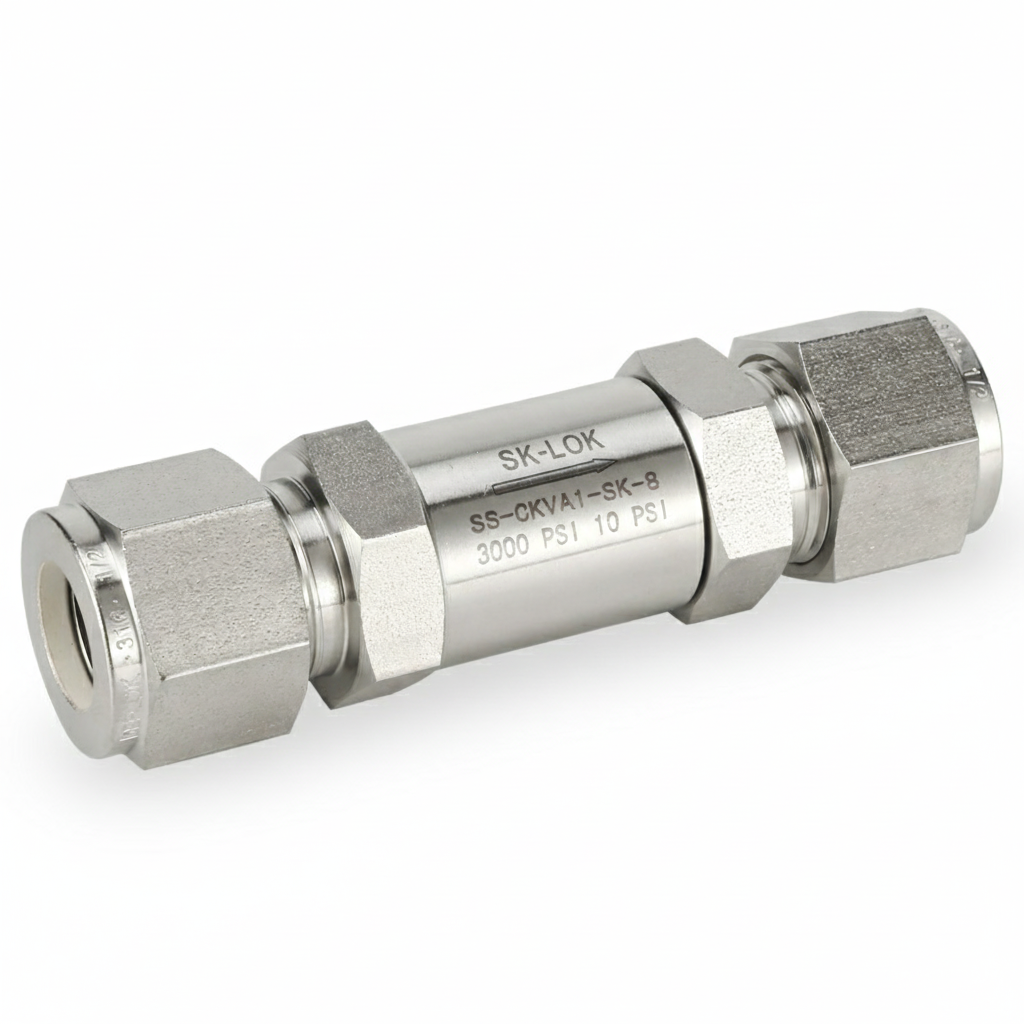

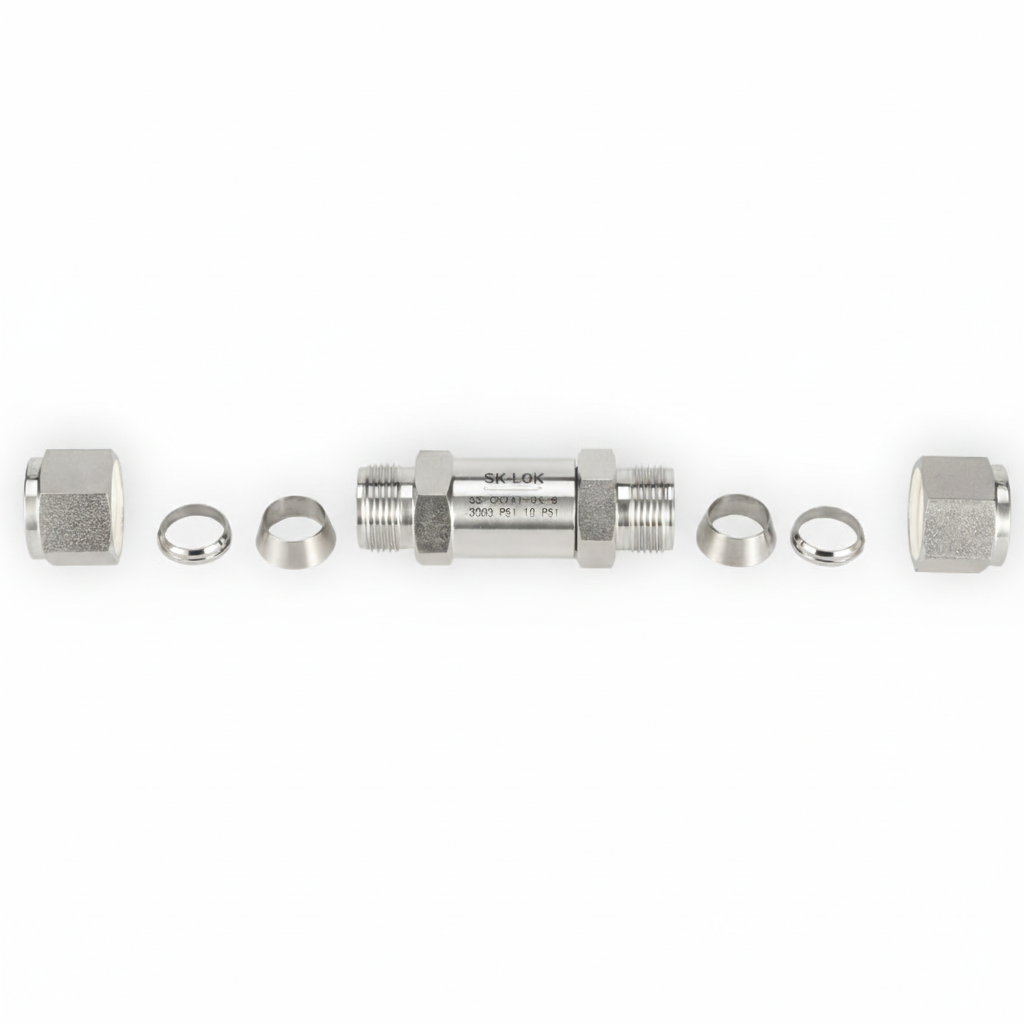

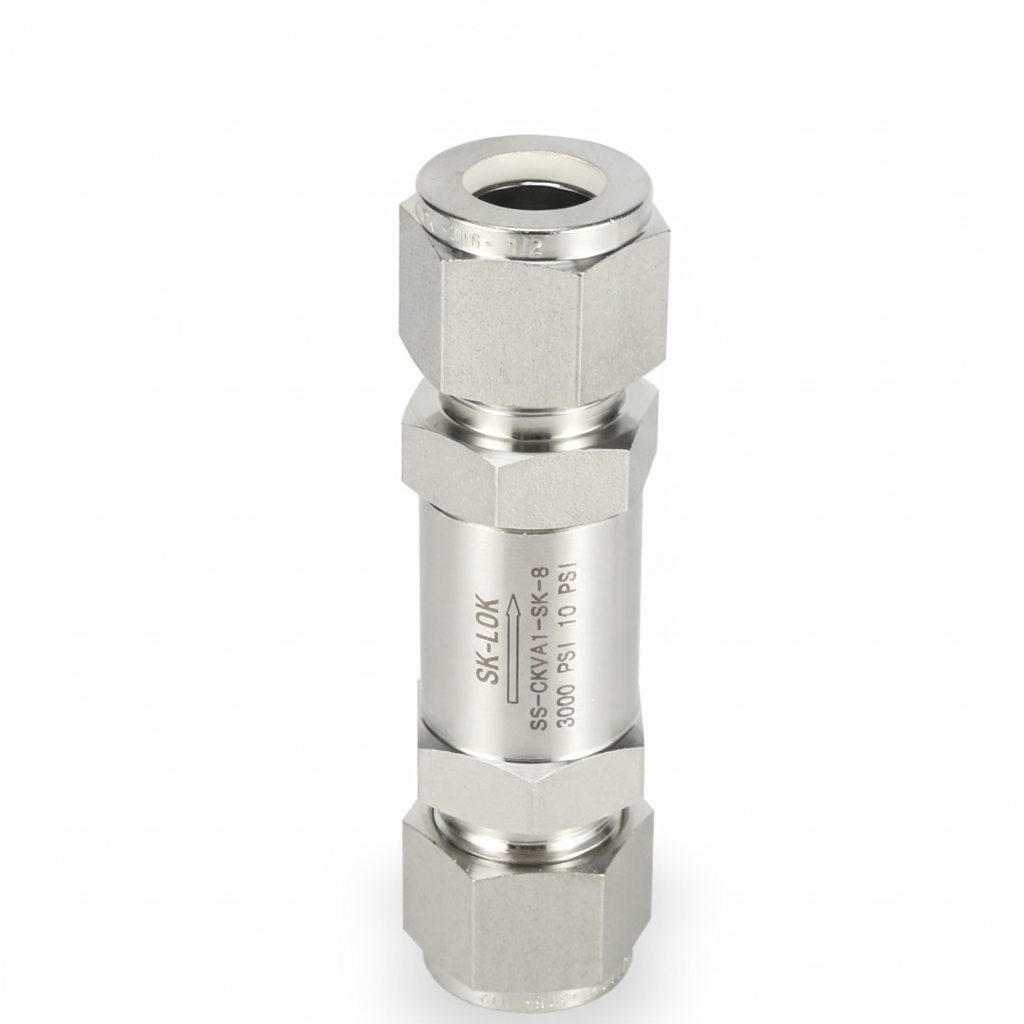

CKVA1 Non-return Valve / Compression High Pressure Cracking 6000 PSI Double Ferrule Non Return Instrument Check Valves / 1/2" Stainless Steel Non return one-way Instrument Check Valve







With the compact structure, CKV series check valve is applicable for instrument panels and systems, which can be
operated accurately. CKV series valves are usually used as check valves of normally closed type. When the drop pressure between the inlet and the outlet is higher than the set value of the spring, the spring inside the valve would move the plug afterwards to form a channel for passing through.

1.Compactstructure,smallsize&beautifulappearance

2.Thecomponentsareallofcommontypeandcanbe interchangeable.

3.Springwithfixedopeningpressurecanbeadjusted.

4.Thepressurecanbeupto6000psi(413bar)

5.Materials316SS&brasscanbeselected.

6.Multipleendconnectionsforselection.



-CKVA1 Check Valve

Order information
End Connection
A
W
(in)
(mm)
(in)
(mm)
(in)
(mm)
-CKVA1-SK-2
1/8
3.17
2.20
56.0
0.63
15.88
-CKVA1-SK-4
1/4
6.3 5
2.38
60.5
0.6 3
15.88
-CKVA1-SK-6
3/8
9.5 2
2.4 8
63.0
0.6 9
17.4
-CKVA1-SK-8
1/2
12.7
3.0 3
77.0
0.9 4
23.8
-CKVA1-SK-12
3/4
19.05
3.4 8
88.5
1.1 3
28.6
-CKVA1-SK-16
1
25.4
4.7 2
120.0
1.3 7
34.9
-CKVA1-SK-6mm
0.24
6
2.3 8
60.5
0.6 3
15.88
-CKVA1-SK-10mm
0.39
10
2.5 0
63.5
0.6 9
17.4
-CKVA1-SK-12mm
0.47
12
3.0 3
77.0
0.9 4
23.8
-CKVA1-LWF-2
NPT1/8
1.8 9
48.0
0.6 3
15.88
-CKVA1-LWF-4
NPT1/4
2.1 5
54.6
0.7 5
19.05
-CKVA1-LWF-6
NPT3/8
2.9 8
75.7
0.8 7
22.2
-CKVA1-LWF-8
NPT1/2
3.5 8
91.0
1.0 6
27.0
-CKVA1-LWF-12
NPT3/4
4.0 9
104.0
1.2 6
32.0
-CKVA1-LWF-16
NPT1
4.8 4
123.0
1.6 2
41.2
-CKVA1-LWM-2
NPT1/8
1.7 1
43.4
0.6 3
15.88
-CKVA1-LWM-4
NPT1/4
2.0 9
53.1
0.6 3
15.88
-CKVA1-LWM-6
NPT3/8
2.7 8
70.6
0.8 7
22.2
-CKVA1-LWM-8
NPT1/2
3.1 6
80.3
0.8 7
22.2
-CKVA1-LWM-12
NPT3/4
4.0 9
104.0
1.2 6
32.0
-CKVA1-LWM-16
NPT1
4.5 3
115.0
1.6 2
41.2
