QFT10-LWF Female Closedown Ball Valve/ 1/8" to 1" SS 304 High Pressure BSP 2-Way Male or Female Ball Valve / Stainless Steel 316 / Ball Seat High Pressure Instrumentation 2 way Mini Female Ball Valve



1.Size 1/8~1" and 3~25mm end connection
2.Working temperature:-17℃ to 232℃
3.Material grades: SS 304/304L ,SS 316/316L,Alloy.
4.Sealing test with nitrogen of 1.1 times of operating pressure should be done to each valve.
5.Zero leakage even under tough working conditions.
6.The valve stem is split from the valve ball and the top seal packing can be adjusted online.
7.The medium is of bidirectional flow and can be installed on plates or pads.
8.Available in wide variety of configurations.

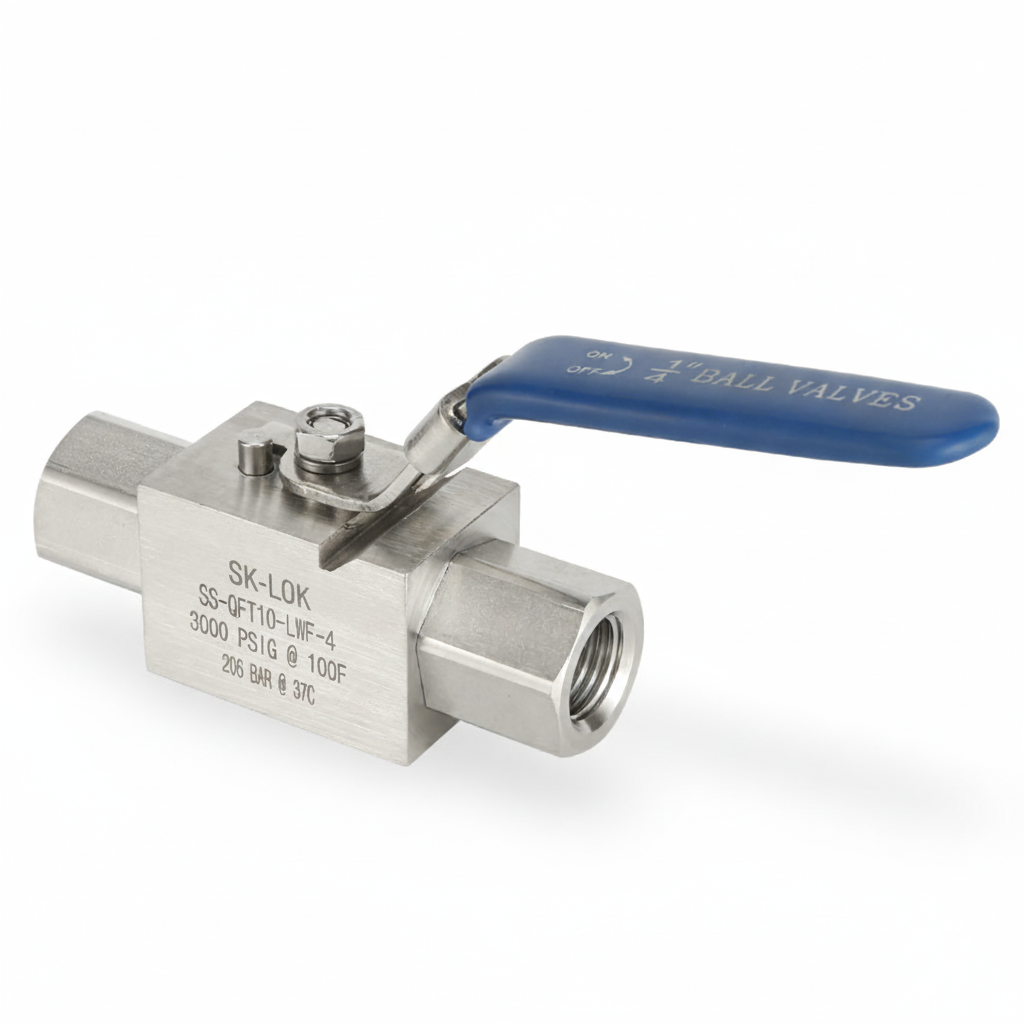

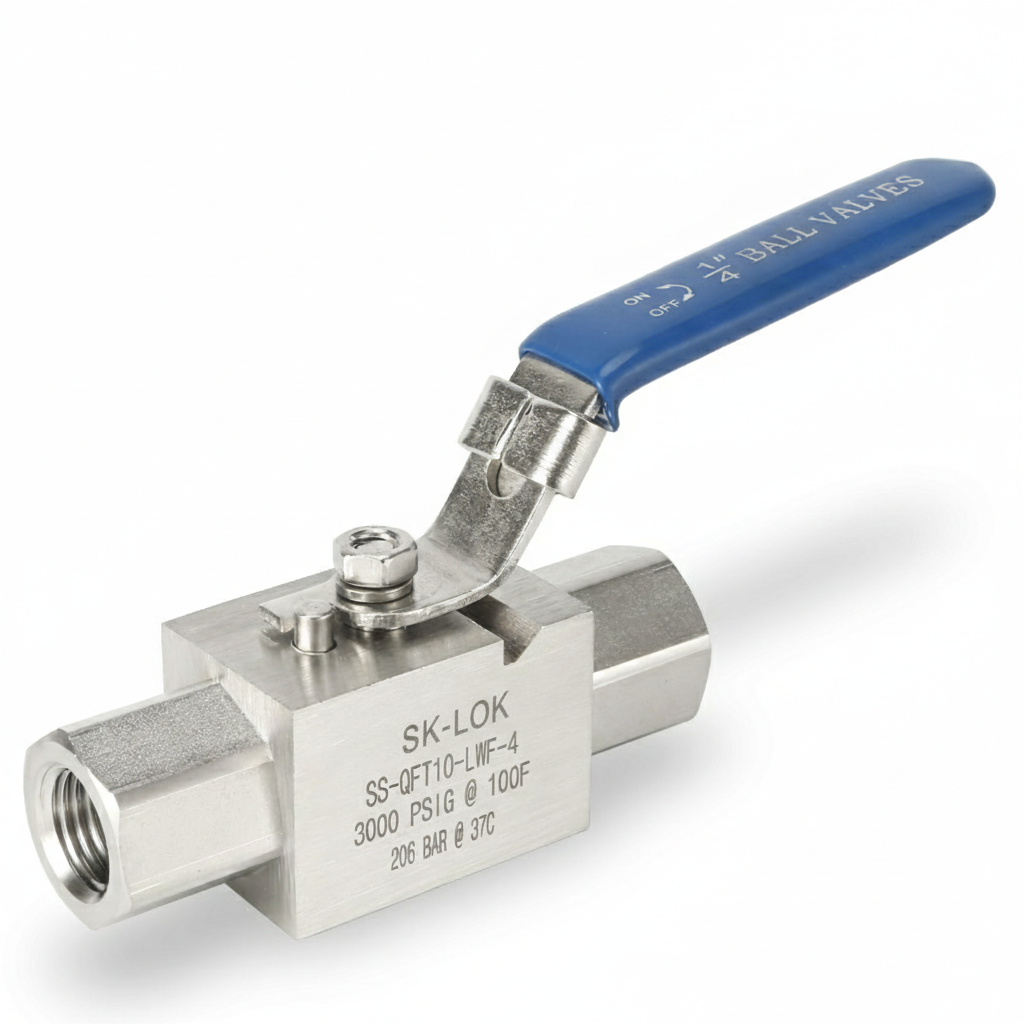

-QFT10-LWF Female closedown ball valve

Order information
P
L
Orifice
(in)
(mm)
(in)
(mm)
-QFT10-LWF-4
NPT1/4
1.97
50
0.2
5
-QFT10-LWF-6
NPT3/8
2.3 6
60
0.2 8
7
-QF T10-LWF-8
NPT1/2
2.9 5
75
0.3 5
9
-QF T10-LWF-R4
R1/4
1.9 7
50
0.2 0
5
-QF T10-LWF-R6
R3/8
2.3 6
60
0.2 8
7
-QF T10-LWF-R8
R1/2
2.9 5
75
0.3 5
9
