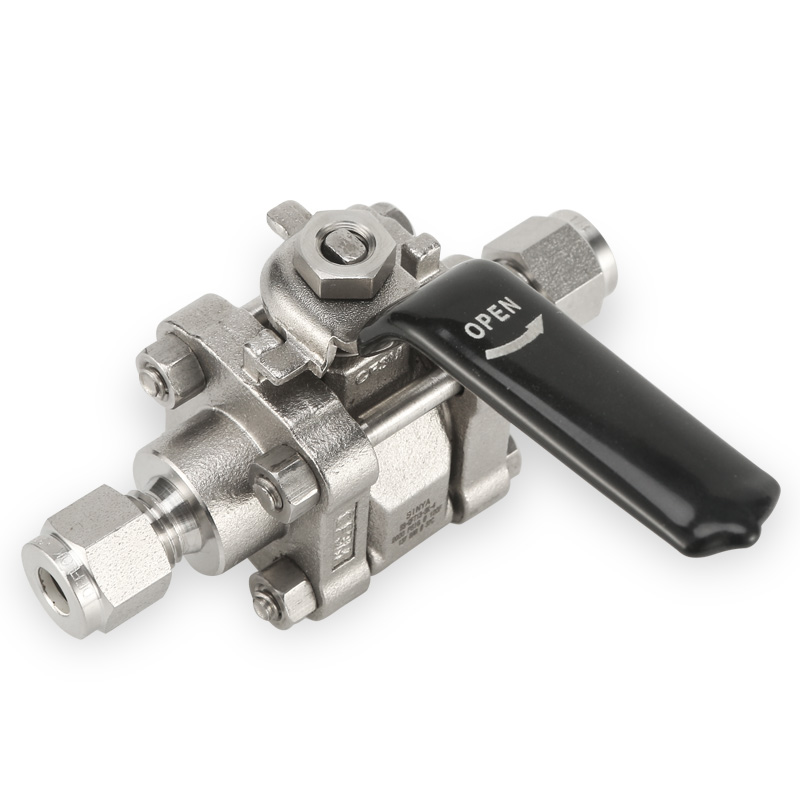

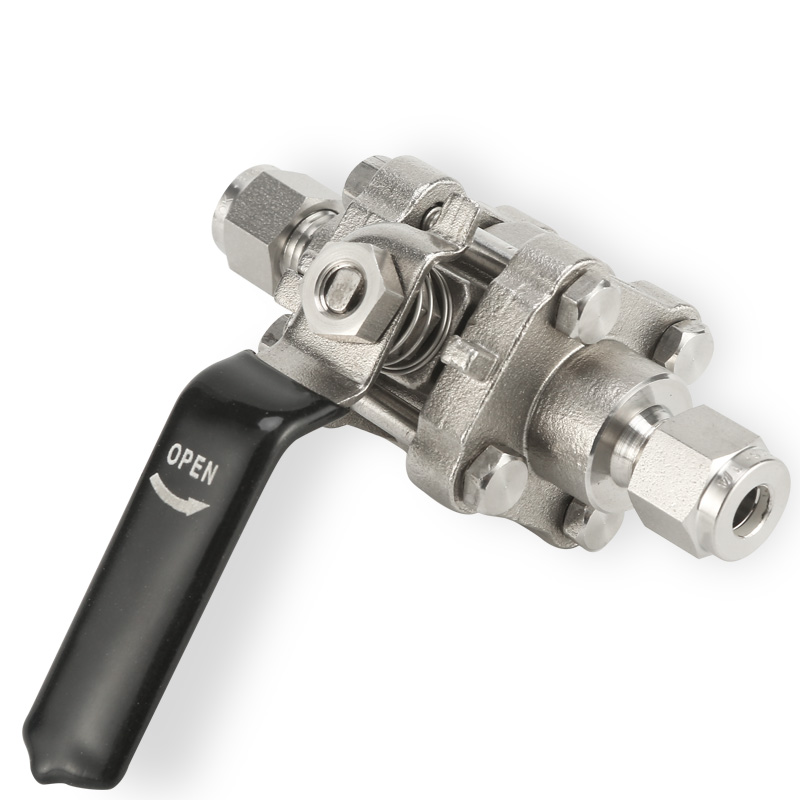

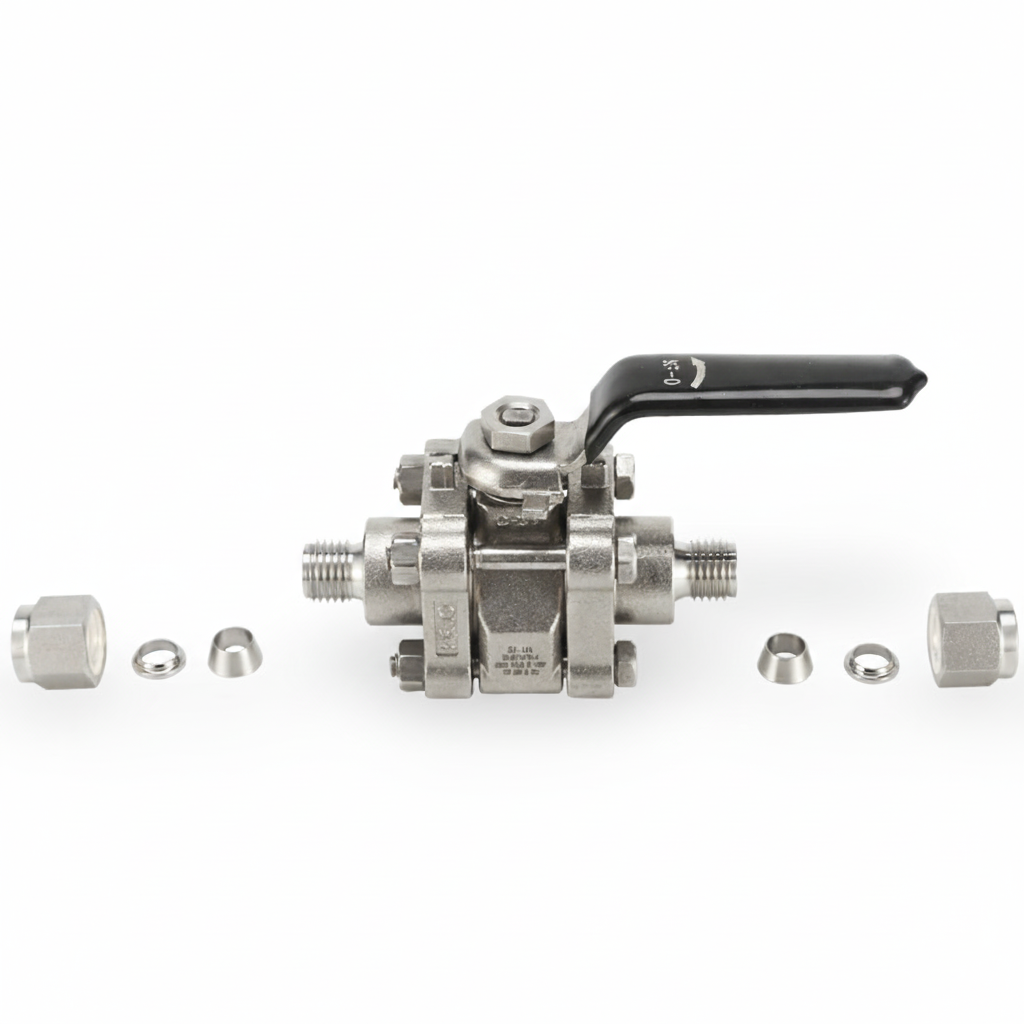

QFT13-SK Wafer ball valve with ferrules / Forged 316 Stainless Steel / Double Ferrules Ends Ball Valve / 2PC Design Sanitary Welding 1" Swing Out Ball Valve / Butt Weld End Ball Valve







1.Size 1/8~1" and 3~25mm end connection
2.Working temperature:-17℃ to 232℃
3.Material grades: SS 304/304L ,SS 316/316L,Alloy.
4.Sealing test with nitrogen of 1.1 times of operating pressure should be done to each valve.
5.Zero leakage even under tough working conditions.
6.The valve stem is split from the valve ball and the top seal packing can be adjusted online.
7.The medium is of bidirectional flow and can be installed on plates or pads.
8.Available in wide variety of configurations.





-QFT13-SK Wafer ball valve with ferrules

Order information
DN
T
A
B
C

Cv
(mm)
(mm)
(in)
(mm)
(in)
(mm)
(in)
(mm)
-QFT13-SK-4
4.8
1/4
2.28
58
2.24
57
4.80
122
1.2
-QFT13-SK-6
7.1
3/8
2.3 6
60
2.2 4
57
4.8 0
122
3.8
-QFT13-SK-8
10.5
1/2
2.6 8
68
2.2 4
57
4.8 0
122
7.6
-QFT13-SK-12
13
3/4
2.8 3
72
2.3 6
60
4.8 0
122
14
-QFT13-SK-16
19.5
1
4.8 0
122
2.9 5
75
5.9 4
151
24
-QFT13-SK-6mm
4.8
6mm
2.2 8
58
2.2 4
57
4.8 0
122
1.2
-QFT13-SK-10mm
7.1
10mm
2.3 6
60
2.2 4
57
4.8 0
122
3.8
-QFT13-SK-12mm
10.5
12mm
2.6 8
68
2.2 4
57
4.8 0
122
7.6
-QFT13-SK-20mm
13
20mm
2.8 3
72
2.3 6
60
4.8 0
122
14
-QFT13-SK-25mm
19.5
25mm
4.8 0
122
2.9 5
75
5.9 4
151
24
