KK2 Male Elbow Connector / 1/8 Hydraulic Adaptor / JIC compression tube fittings / NPT to JIC / JIC Flared 37 Tube Fittings Male Elbow / Flare Twin Fitting / Fittings Manufactur / Forged tube Fitting

If required, see SAE Standard J514 for a complete list of dimnesions. NPT Tapered Pipe Threads meet the requirements of ASME/ANSI B.I.20.1.

All 37° Flared tube fittings-3 piece tube assembly, can be used with metric tube by using a metric 37° sleeve, instead of an inch sleeve. Each dimension table shows which metric sleeve should be used for every size.

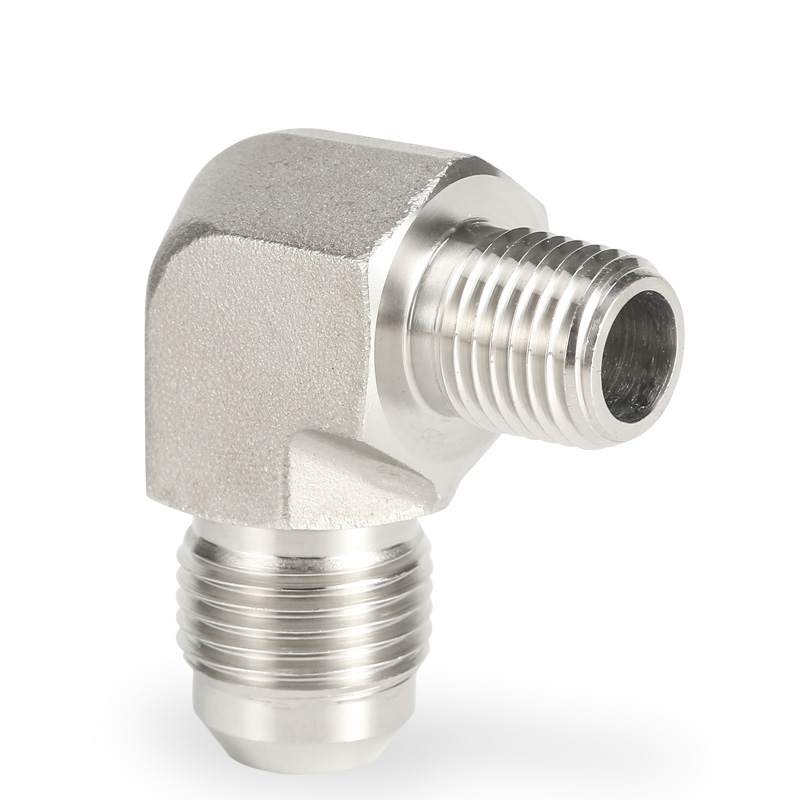

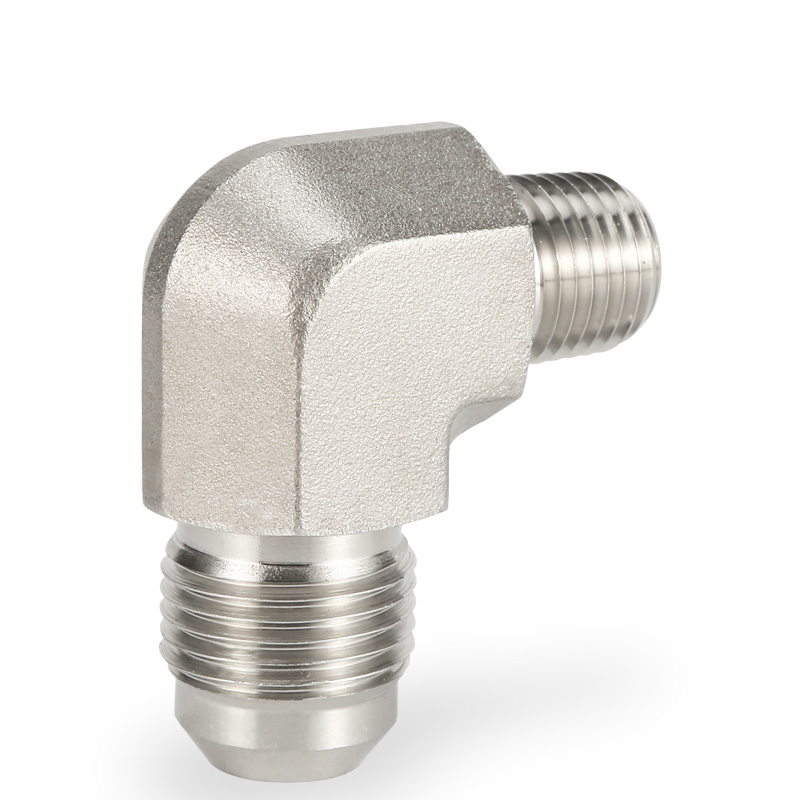

-KK2 Male Elbow Connector

Order information
Tubing OD
T
D
(in)
(mm)
(NPT)
(in)
(mm)
-KK2-2-2
1/8
-
1/8
0.062
1.6
-KK2-3-2
3/16
-
1/8
0.125
3.2
-KK2 -4-2
1/4
6
1/8
0.172
4.4
-KK2 -4-4
1/4
6
1/4
0.172
4.4
-KK2 -5-2
5/16
8
1/8
0.190
4.8
-KK2 -5-4
5/16
8
1/4
0.234
6
-KK2 -6-2
3/8
10
1/8
0.190
4.8
-KK2 -6-4
3/8
10
1/4
0.280
7.1
-KK2 -6-6
3/8
10
3/8
0.297
7.5
-KK2 -6-8
3/8
10
1/2
0.297
7.5
-KK2 -8-4
1/2
12
1/4
0.280
7.1
-KK2 -8-6
1/2
12
3/8
0.380
9.5
-KK2 -8-8
1/2
12
1/2
0.391
9.9
-KK2 -8-12
1/2
12
3/4
0.391
9.9
-KK2 -10-6
5/8
16
3/8
0.380
9.5
-KK2 -10-8
5/8
16
1/2
0.470
11.9
-KK2 -10-12
5/8
16
3/4
0.484
12.3
-KK2 -12-8
3/4
18
1/2
0.470
11.9
-KK2 -12-12
3/4
18
3/4
0.69
15.5
-KK2 -14-12
7/8
20
3/4
0.719
18.3
-KK2 -16-12
1
25
3/4
0.719
18.3
-KK2 -16-16
1
25
1
0.844
21.5
-KK2 -20-16
1 1/4
32
1
0.844
21.5
-KK2 -20-20
1 1/4
32
1 1/4
1.078
27.5
-KK2 -24-24
1 1/2
38
1 1/2
1.312
33
-KK2 -32-32
2
-
2
1.781
45

Order information
W
M
N
(in)
(in)
(mm)
(in)
(mm)
-KK2-2-2
7/16
0.77
19.6
0.72
18.3
-KK2-3-2
1/2
0.83
21.1
0.7 2
18.3
-KK2 -4-2
1/2
0.89
22.6
0.7 8
19.8
-KK2 -4-4
5/8
1.06
26.9
1.0 9
27.7
-KK2 -5-2
5/8
0.95
24.1
0.7 8
19.8
-KK2 -5-4
5/8
1.06
26.9
1.0 9
27.7
-KK2 -6-2
5/8
1.06
26.9
0.9 0
22.8
-KK2 -6-4
5/8
1.06
26.9
1.0 9
27.7
-KK2 -6-6
13/16
1.14
29
1.2 2
31
-KK2 -6-8
15/16
1.23
31.2
1.4 7
37.3
-KK2 -8-4
15/16
1.25
31.8
1.2 2
31
-KK2 -8-6
15/16
1.25
31.8
1.2 2
31
-KK2 -8-8
15/16
1.33
33.7
1.4 7
37.3
-KK2 -8-12
11/8
1.42
36
1.5 9
40.4
-KK2 -10-6
15/16
1.45
36.8
1.3 0
33
-KK2 -10-8
15/16
1.45
36.8
1.4 7
37.3
-KK2 -10-12
11/8
1.53
38.9
1.5 9
40.4
-KK2 -12-8
11/8
1.66
41
1.5 9
40.4
-KK2 -12-12
11/8
1.66
41
1.5 9
40.4
-KK2 -14-12
13/8
1.73
43.9
1.6 9
42.9
-KK2 -16-12
13/8
1.81
46
1.7 8
45.2
-KK2 -16-16
13/8
1.81
46
1.9 7
50
-KK2 -20-16
111/16
2.06
52.3
2.3 5
59.6
-KK2 -20-20
111/16
2.06
52.3
2.3 8
60.5
-KK2 -24-24
2
2.33
59.2
2.6 4
67.1
-KK2 -32-32
25/8
3.06
77.7
3.0 0
76.2
