LWUF Female Union / 316 Stainless Steel Union Connector / Threaded NPT / Pipe Fitting Idf Sanitary Union Coupling / Alloy Material Instrumentation Pipe FIttings / Size range from 1/8" to 2".









1.Size range from 1/8" to 2".
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304/304L ,SS 316/316S.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT).
7.Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code.
8.Available in wide variety of configurations.

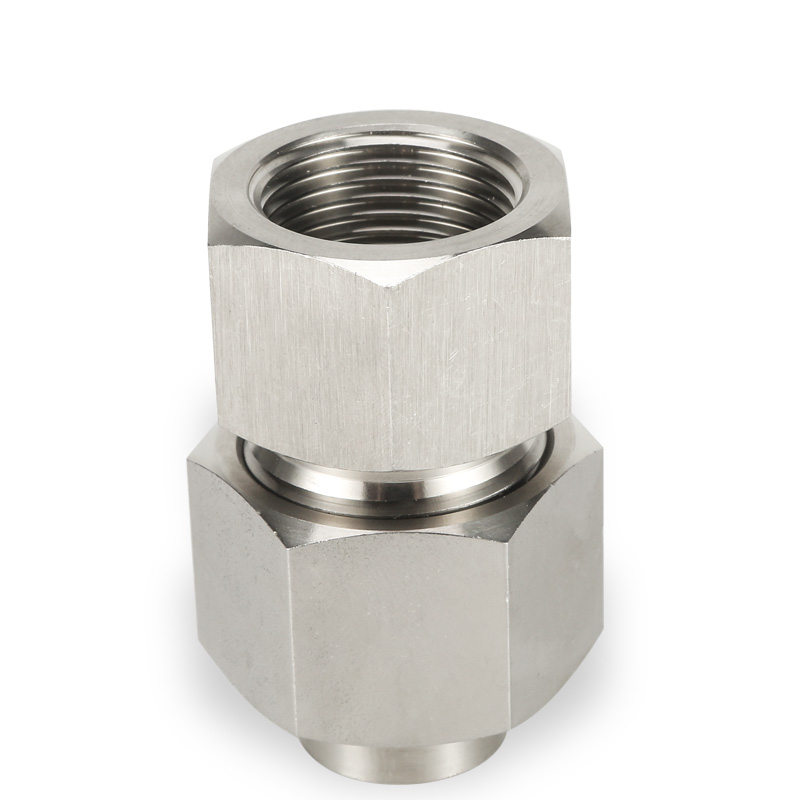

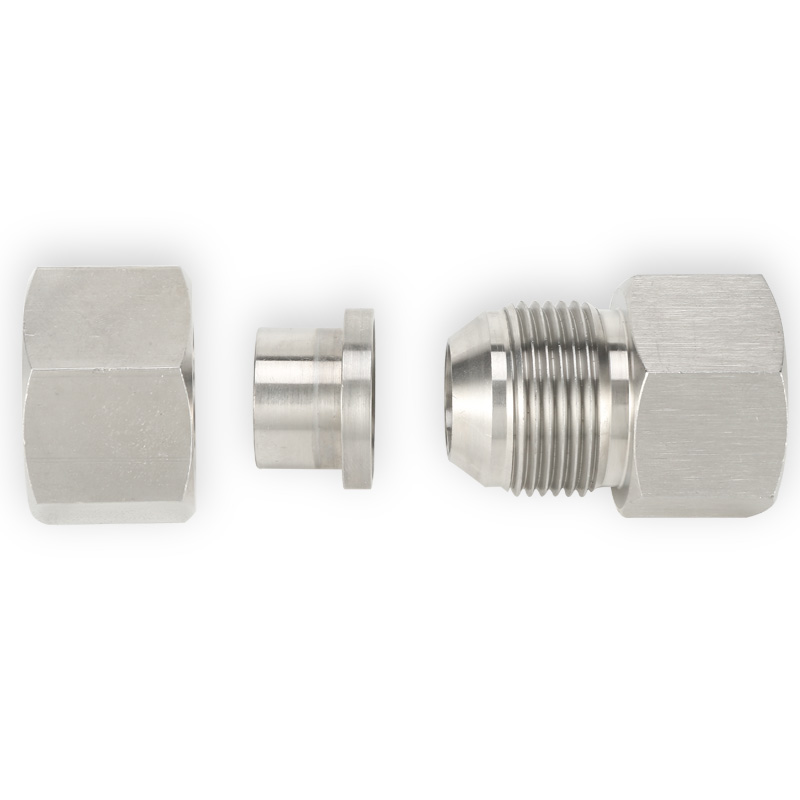

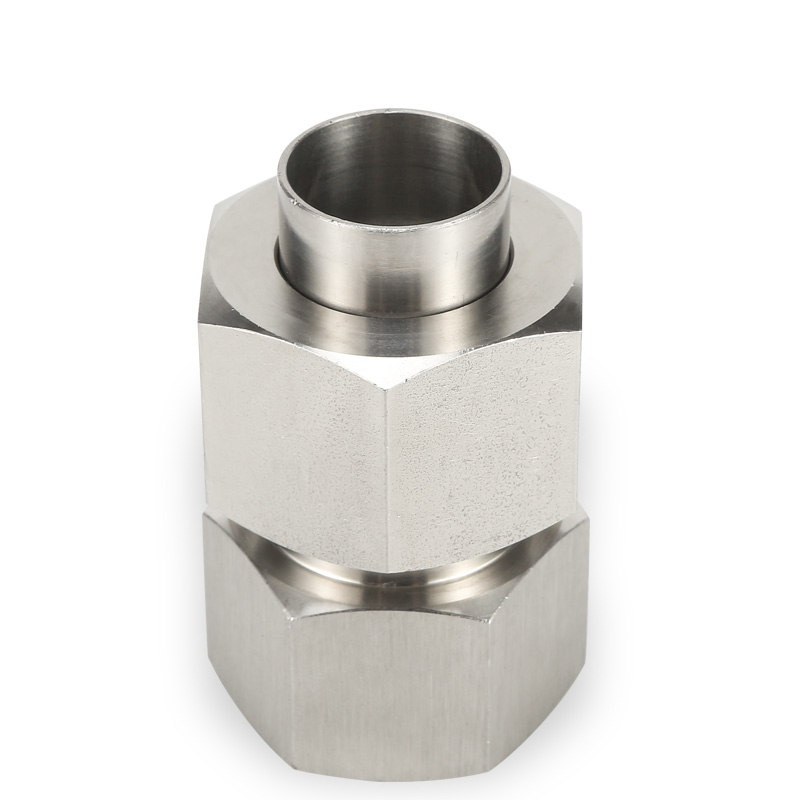

-LWUF Female Union

Order information
T
L
D
W
（HEX）
W
（HEX）
(NPT)
(in)
(mm)
(in)
(mm)
(in)
(mm)
(in)
(mm)
-LWUF-2
1/8
1.81
46.0
0.27
6.9
0.94
23.81
1.13
28.6
-LWUF-4
1/4
2.34
59.4
0.36
9.1
1.19
30.16
1.38
35.1
-LWUF-6
3/8
2.50
63.5
0.52
13.2
1.31
33.34
1.50
38.1
-LWUF-8
1/2
2.69
68.3
0.62
15.7
1.63
41.28
1.75
44.4
-LWUF-12
3/4
3.12
79.2
0.88
22.4
1.88
47.63
2.00
50.8
-LWUF-16
1
3.56
90.4
1.03
26.2
2.38
60.33
2.50
63.5
Created on：2021-01-06 10:07
