LWAR Adapter / Size range from 1/8" to 2" / SS 304/304L ,SS 316/316S / NPT, BSP, BSPT, UNF, ISO, SAE / Female Pipe Adaptor / Forged Steel Compression Connector / Pipe Fittings Hex Reducing Bushing







1.Size range from 1/8" to 2".
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304/304L ,SS 316/316S.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT).
7.Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code.
8.Available in wide variety of configurations.

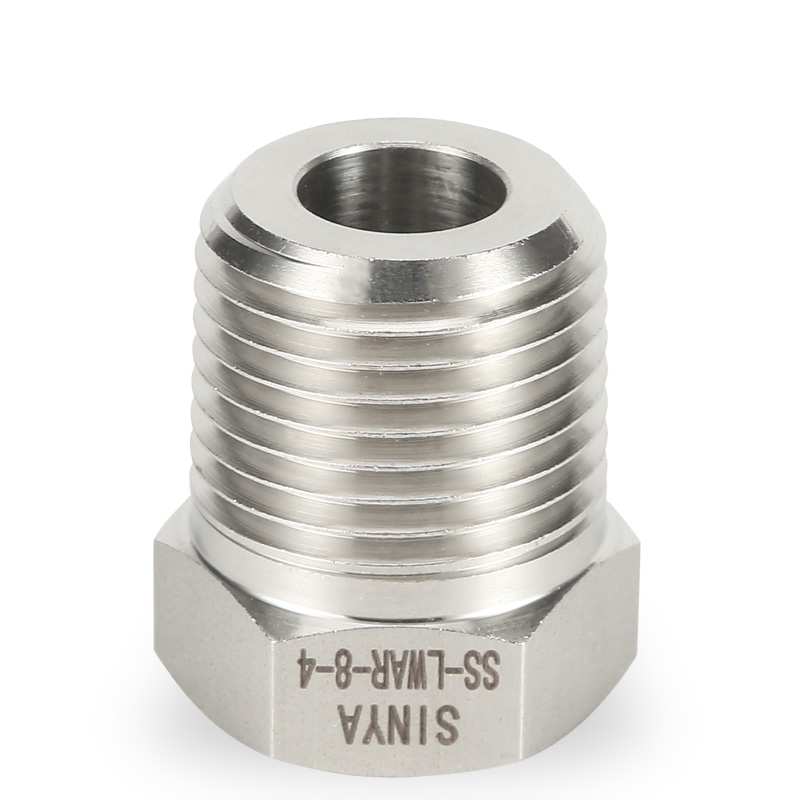

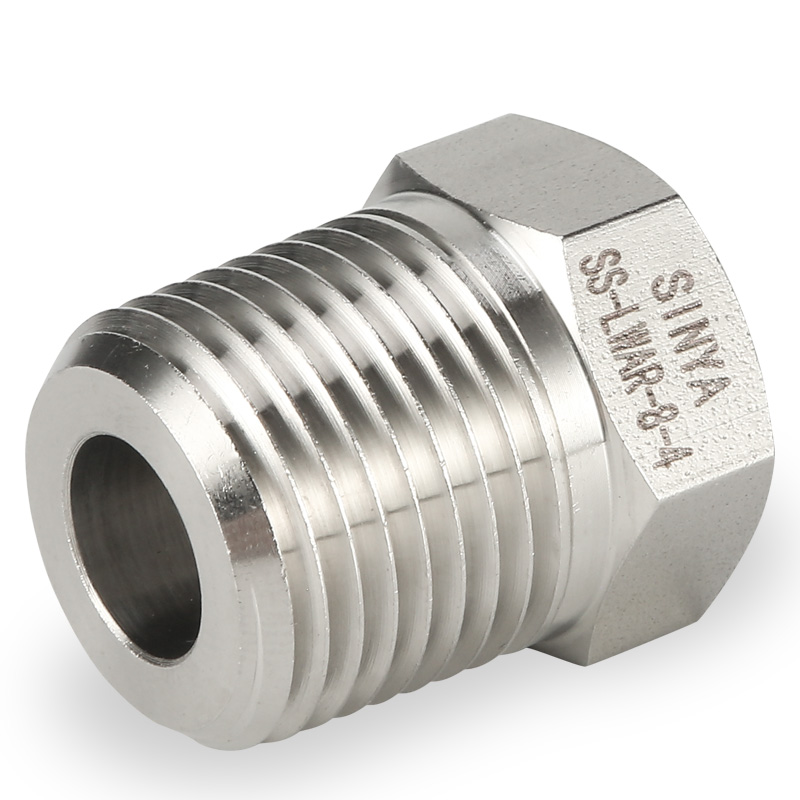

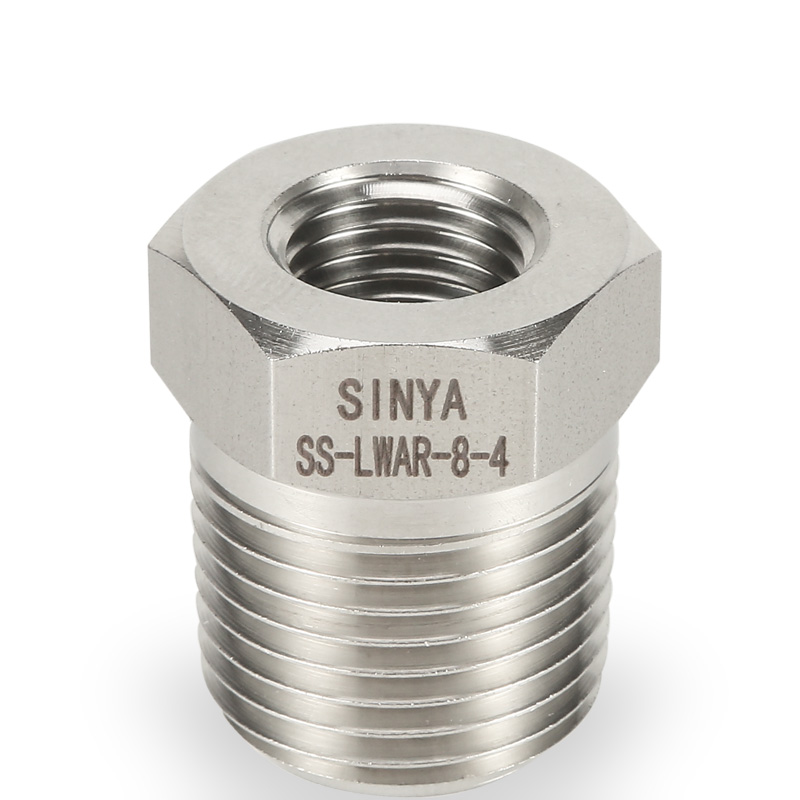

-LWAR Adapter

Order information
T
T1
L
D
W
（HEX）
(NPT)
(NPT)
(in)
(mm)
(in)
(mm)
(in)
(mm)
-LWAR-2-1
1/8
1/16
1.03
26.2
0.19
4.8
0.43
11.1
-LWAR-4-2
1/4
1/8
1.06
26.9
0.28
7.1
0.56
14.2
-LWAR-6-2
3/8
1/8
0.86
21.8
0.34
8.6
0.68
17.4
-LWAR-6-4
3/8
1/4
1.19
30.2
0.37
9.5
0.75
19
-LWAR-8-2
1/2
1/8
1.08
27.4
0.34
8.6
0.87
22.2
-LWAR-8-4
1/2
1/4
1.08
27.4
0.45
11.4
0.87
22.2
-LWAR-8-6
1/2
3/8
1.41
35.8
0.47
11.9
0.87
22.2
-LWAR-12-4
3/4
1/4
1.08
27.4
0.45
11.4
1.06
27
-LWAR-12-6
3/4
3/8
1.08
27.4
0.59
15
1.06
27
-LWAR-12-8
3/4
1/2
1.63
41.4
0.62
15.7
1.06
27
-LWAR-16-4
1
1/4
1.37
34.8
0.45
11.4
1.38
35.1
-LWAR-16-6
1
3/8
1.37
34.8
0.59
15
1.38
35.1
-LWAR-16-8
1
1/2
1.37
34.8
0.73
18.5
1.38
35.1
-LWAR-16-12
1
3/4
1.85
47
0.88
22.4
1.38
35.1
-LWAR-20-8
1-1/4
1/2
1.46
37.1
0.73
18.5
1.75
44.4
-LWAR-20-12
1-1/4
3/4
1.47
37.3
0.94
23.9
1.75
44.4
-LWAR-20-16
1-1/4
1
1.94
49.3
1.17
29.7
1.75
44.4
-LWAR-24-8
1-1/2
1/2
1.61
40.9
0.73
18.5
2.13
54
-LWAR-24-12
1-1/2
3/4
1.61
40.9
0.94
23.9
2.13
54
-LWAR-24-16
1-1/2
1
1.61
40.9
1.17
29.7
2.13
54
-LWAR-24-20
1-1/2
1-1/4
2.31
58.7
1.5
38.1
2.13
54
-LWAR-32-8
2
1/2
1.83
46.5
0.73
18.5
2.74
70
-LWAR-32-12
2
3/4
1.83
46.5
0.94
23.9
2.74
70
-LWAR-32-16
2
1
1.83
46.5
1.17
29.7
2.74
70
-LWAR-32-20
2
1-1/4
1.83
46.5
1.5
38.1
2.74
70
-LWAR-32-24
2
1-1/2
1.83
46.5
1.73
43.9
2.74
70
