LW1L Hex Long Nipple / Hydraulic Stainless Steel 6000psi Threaded Male Pipe to Male Pipe Adapter / Manufacturers Exporters / NPT Hex Long Nipple 2" 3" 4" inch long Instrumentation Pipe Fittings







1.Size range from 1/8" to 2".
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304/304L ,SS 316/316S.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT).
7.Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code.
8.Available in wide variety of configurations.

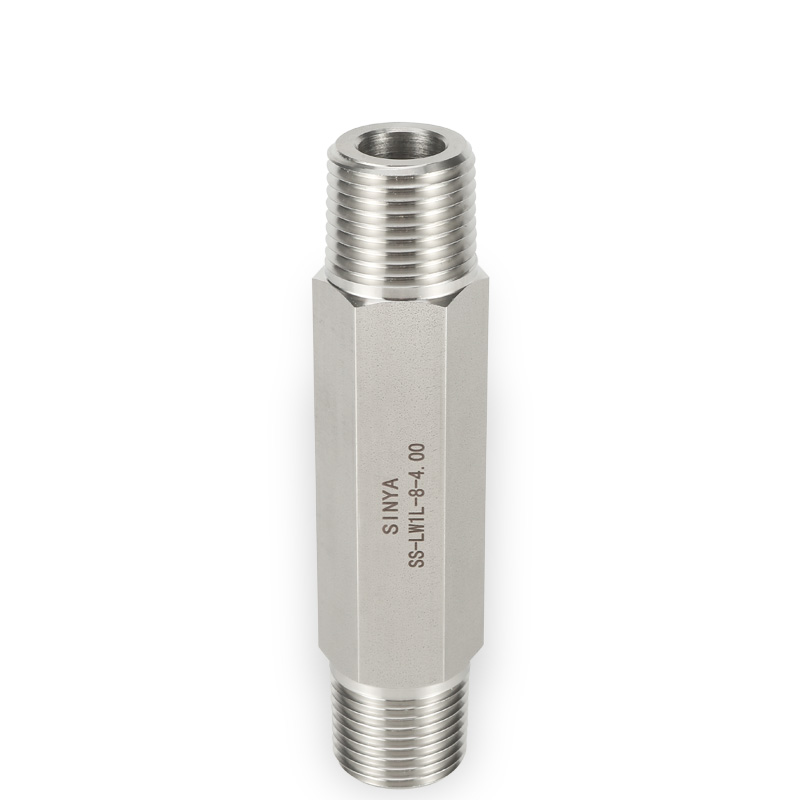

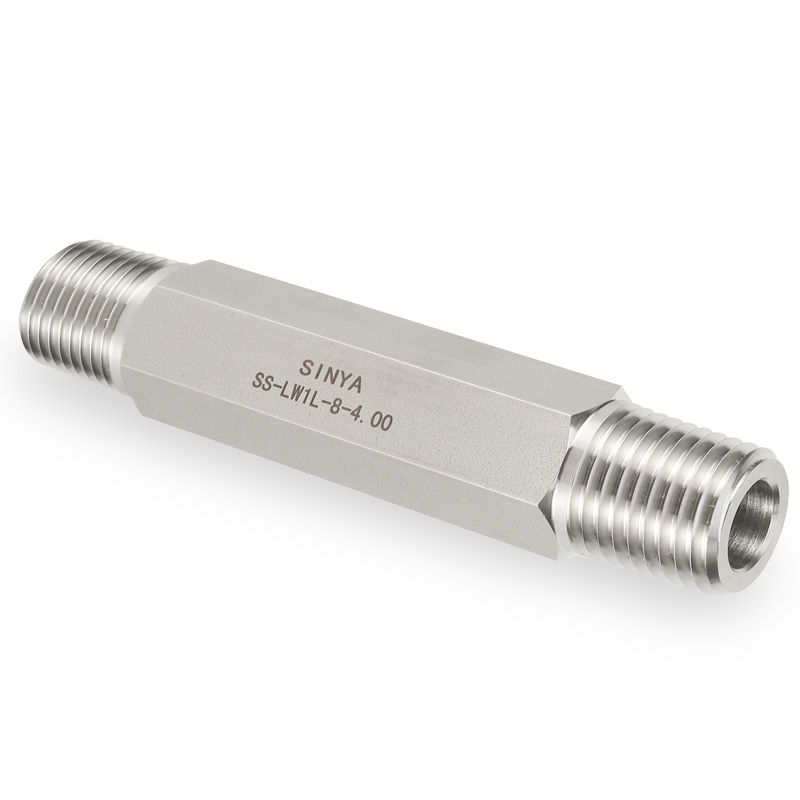

-LW1L Hex Long Nipple

Order information
T
L
D
W
（HEX）
(NPT)
(in)
(mm)
(in)
(mm)
(in)
(mm)
-LW1L-2
1/8
1.5-3.00
38.1-76.2
0.19
4.8
0.43
11.1
-LW1L-4
1/4
1.5-4.00
38.1-101.6
0.28
7.1
0.56
14.2
-LW1L-6
3/8
1.5-4.00
38.1-101.6
0.38
9.6
0.68
17.4
-LW1L-8
1/2
2.0-4.00
50.8-101.6
0.47
11.9
0.87
22.2
-LW1L-12
3/4
2.0-4.00
50.8-101.6
0.62
15.8
1.06
27.0
-LW1L-16
1
3.0-4.00
76.2-101.6
0.88
22.4
1.38
35.1
