SK-LOK    Fittings    LW7 Hex Coupling / 3/4 in. Female Pipe Fitting / Swagelok Type Stainless Steel Quick Connect Coupling / Threaded NPT 316ss HexCoupling / Size range from 1/8" to 2" / -325℉~800℉ (-198℃~426℃)

LW7 Hex Coupling / 3/4 in. Female Pipe Fitting / Swagelok Type Stainless Steel Quick Connect Coupling / Threaded NPT 316ss HexCoupling / Size range from 1/8" to 2" / -325℉~800℉ (-198℃~426℃)


1.Size range from 1/8" to 2".
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304/304L ,SS 316/316S.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT).
7.Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code.
8.Available in wide variety of configurations.

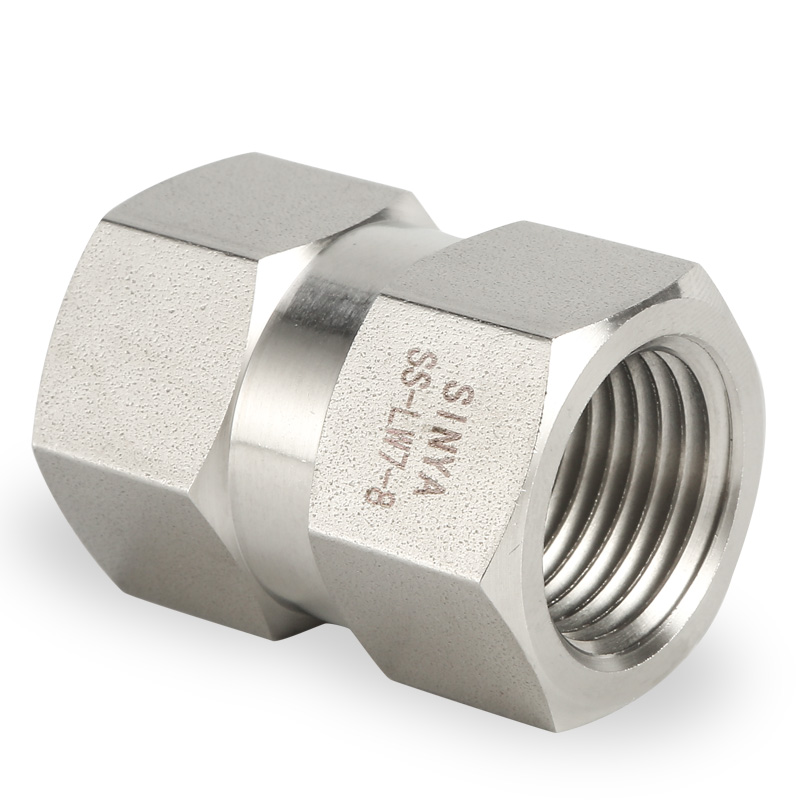

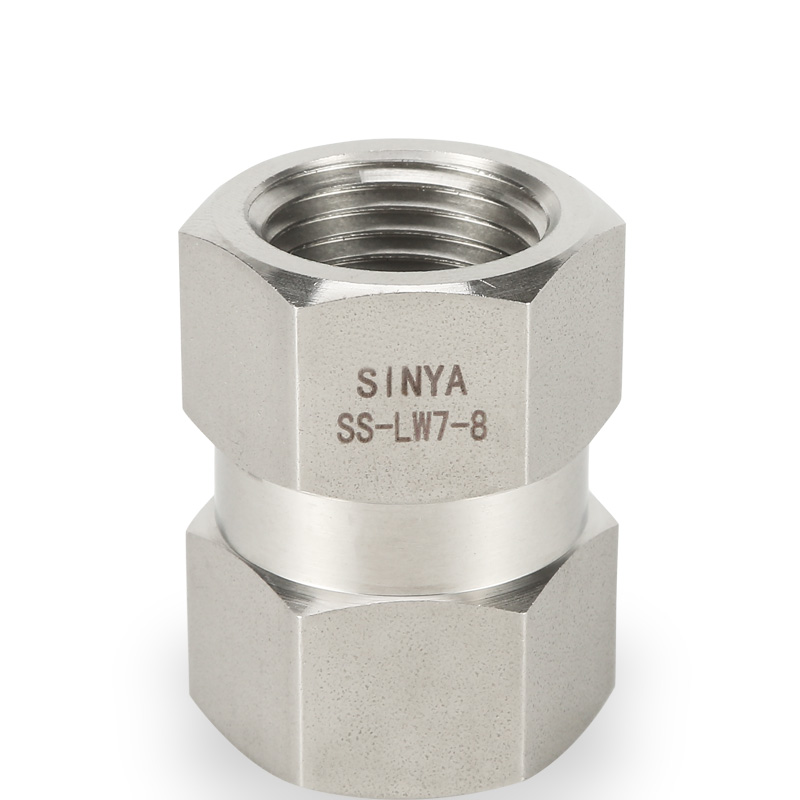

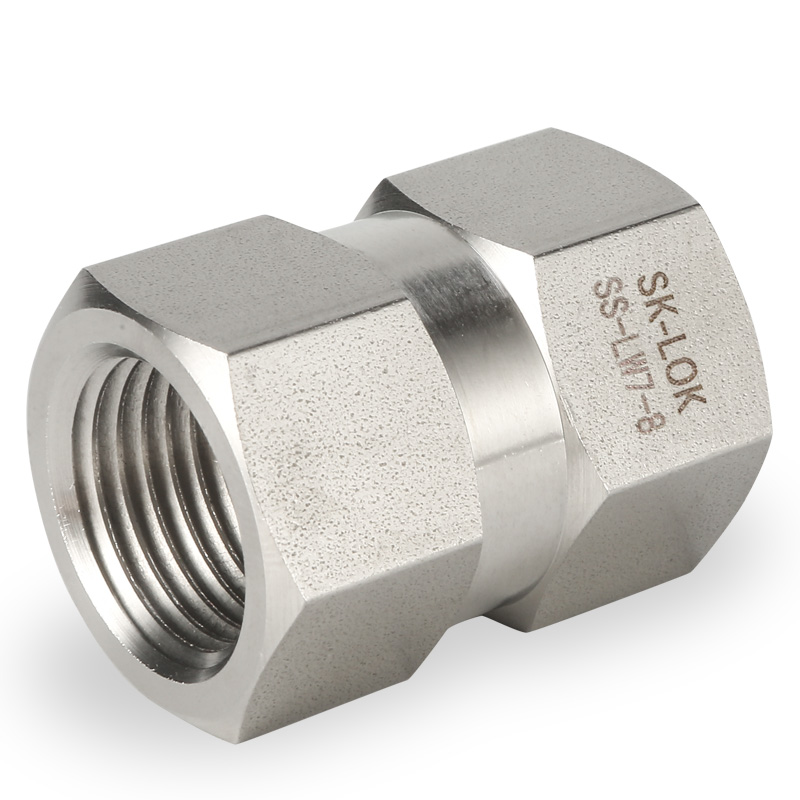

-LW7 Hex Coupling

Order information
T
L
D
W
(HEX)
(NPT)
(in)
(mm)
(in)
(mm)
(in)
(mm)
-LW7-2
1/8
0.81
20.6
0.34
8.6
0.56
14.2
-LW7-4
1/4
1.19
30.2
0.45
11.4
0.75
19.0
-LW7-6
3/8
1.31
33.3
0.59
15.0
0.87
22.2
-LW7-8
1/2
1.56
39.6
0.73
18.5
1.06
27.0
-LW7-12
3/4
1.62
41.1
0.94
23.9
1.31
33.3
-LW7-16
1
2.00
50.8
1.17
29.7
1.62
41.2
