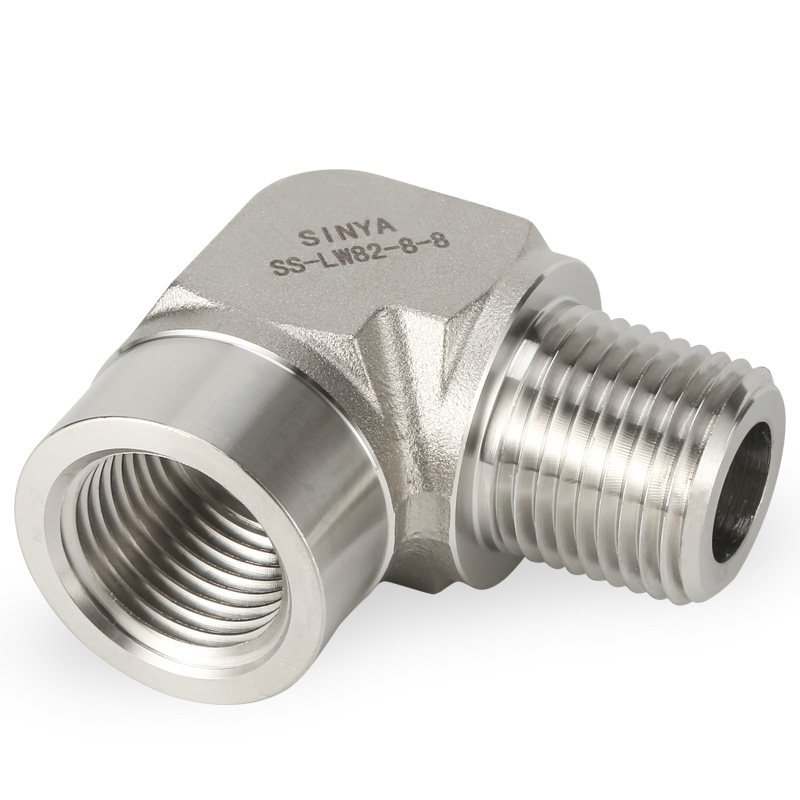

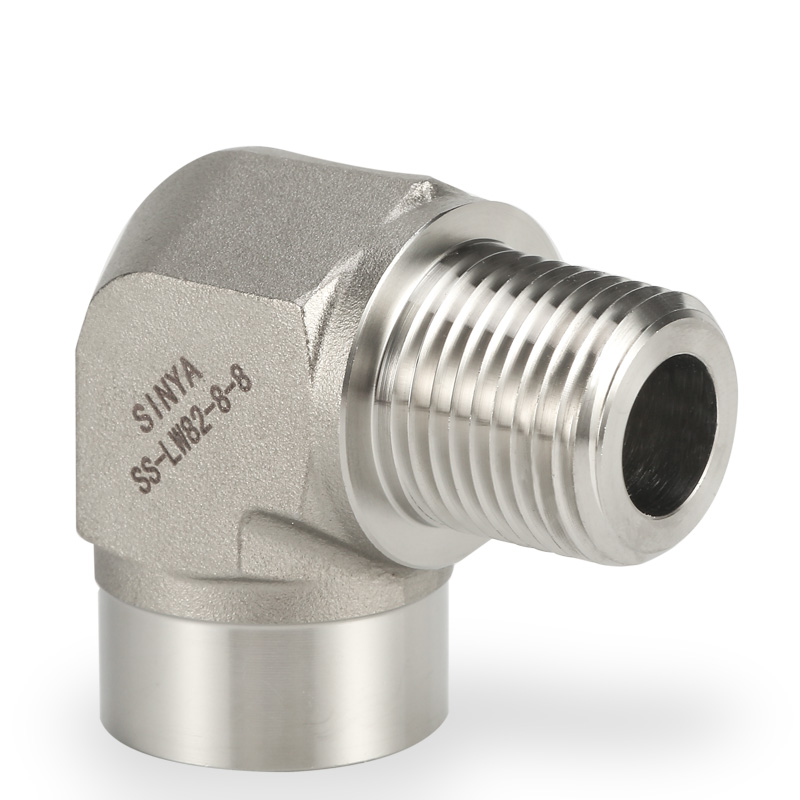

LW82 Street Elbow / 1/2NPT Male Female Instrument Pipe Fittings / Street Elbow / 6000 Psi / Size range from 1/8" to 2" /  SS 304/304L ,SS 316 / 316S




1.Size range from 1/8" to 2".
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304/304L ,SS 316/316S.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT).
7.Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code.
8.Available in wide variety of configurations.



-LW82 Street Elbow

Order information
T
T1
N
(NPT)
(NPT)
(in)
(mm)
-LW82-1-1
1/16
1/16
0.86
21.8
-LW82-2-1
1/8
1/16
1.04
26.4
-LW82-2-2
1/8
1/8
1.04
26.4
-LW82-4-2
1/4
1/8
1.17
29.7
-LW82-4-4
1/4
1/4
1.17
29.7
-LW82-6-4
3/8
1/4
1.42
36.1
-LW82-6-6
3/8
3/8
1.42
36.1
-LW82-8-4
1/2
1/4
1.56
39.6
-LW82-8-6
1/2
3/8
1.56
39.6
-LW82-8-8
1/2
1/2
1.56
39.6
-LW82-12-12
3/4
3/4
1.92
48.8
-LW82-16-16
1
1
1.91
48.5
-LW82 Street Elbow

Order information
N1
D
W
(HEX)
(in)
(mm)
(in)
(mm)
(in)
(mm)
-LW82-1-1
0.88
22.4
0.12
3.10
0.37
9.5
-LW82-2-1
0.87
22.1
0.12
3.10
0.68
17.4
-LW82-2-2
0.87
22.1
0.19
4.80
0.68
17.4
-LW82-4-2
1.00
25.4
0.19
4.80
0.82
20.8
-LW82-4-4
1.17
29.7
0.28
7.10
0.82
20.8
-LW82-6-4
1.26
32.0
0.28
7.10
0.94
23.8
-LW82-6-6
1.26
32.0
0.38
9.60
0.94
23.8
-LW82-8-4
1.38
35.1
0.28
7.10
1.06
27.0
-LW82-8-6
1.38
35.1
0.38
9.60
1.06
27.0
-LW82-8-8
1.56
39.6
0.47
11.9
1.06
27.0
-LW82-12-12
1.67
42.4
0.62
15.8
1.30
33.0
-LW82-16-16
1.94
49.3
0.88
22.4
1.50
38.0
