LW1N Hex Nipple / Stainless Steel 304 Pipe Fitting / BSPT Steel 1/8 Inch NPT Male Pipe Nipple / Tube Connection Male Thread Hex Nipple / Instrumentation Pipe Fittings / 6000 PSI Monel Duplex







1.Size range from 1/8" to 2".
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304/304L ,SS 316/316S.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT).
7.Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code.
8.Available in wide variety of configurations.

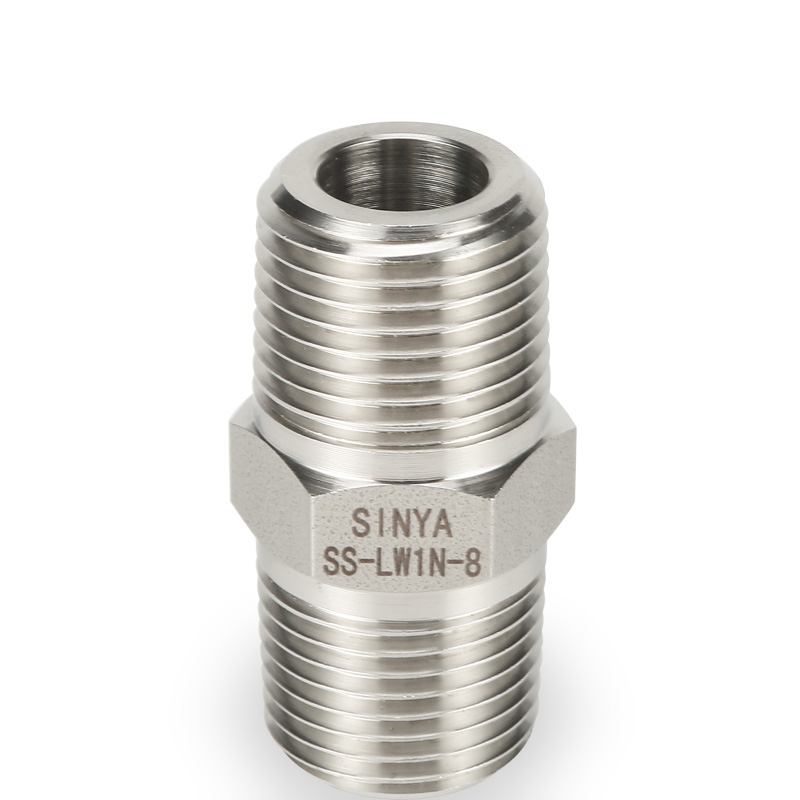

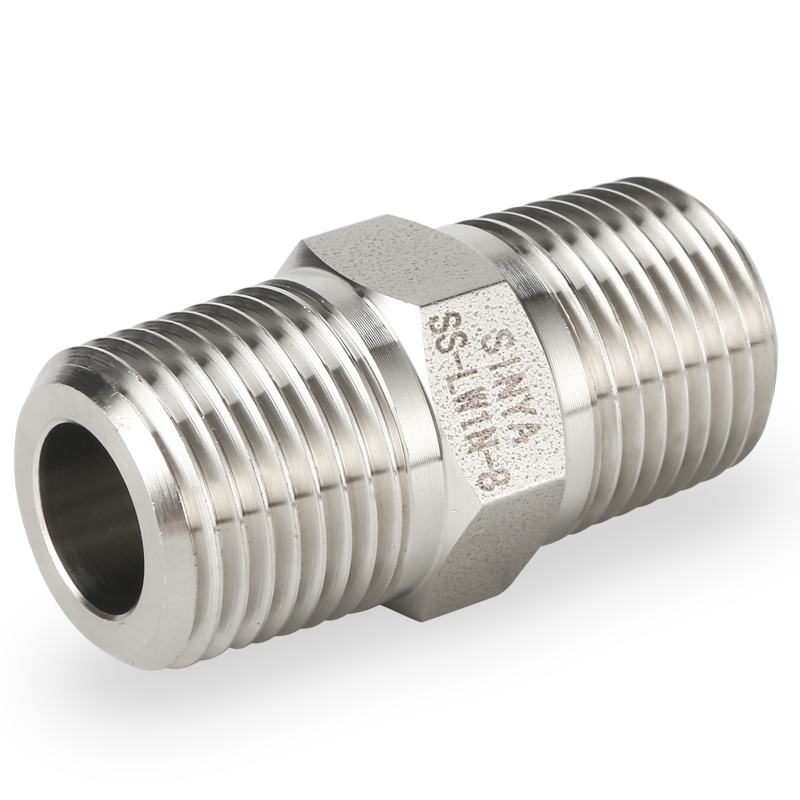

-LW1N Hex Nipple

Order information
T
L
D
W
（HEX）
(NPT)
(in)
(mm)
(in)
(mm)
(in)
(mm)
-LW1N-1
1/16
1.01
25.7
0.12
3.0
0.31
7.9
-LW1N-2
1/8
1.01
25.7
0.19
4.8
0.43
11.1
-LW1N-4
1/4
1.40
35.6
0.28
7.1
0.56
14.2
-LW1N-6
3/8
1.43
36.3
0.38
9.6
0.68
17.4
-LW1N-8
1/2
1.84
46.7
0.47
11.9
0.87
22.2
-LW1N-12
3/4
1.84
46.7
0.62
15.8
1.06
27.0
-LW1N-16
1
2.32
58.9
0.88
22.4
1.38
35.1
