LWAA Adapter / Instrumentation Pipe Fittings / Butt-Weld Adapter / 3/8" Tube Size 1/4" Pipe Size / Pipe Fitting Metal 9/16" Hex Reducing Adaptor / Size range from 1/8" to 2"



1.Size range from 1/8" to 2".
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304/304L ,SS 316/316S.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT).
7.Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code.
8.Available in wide variety of configurations.

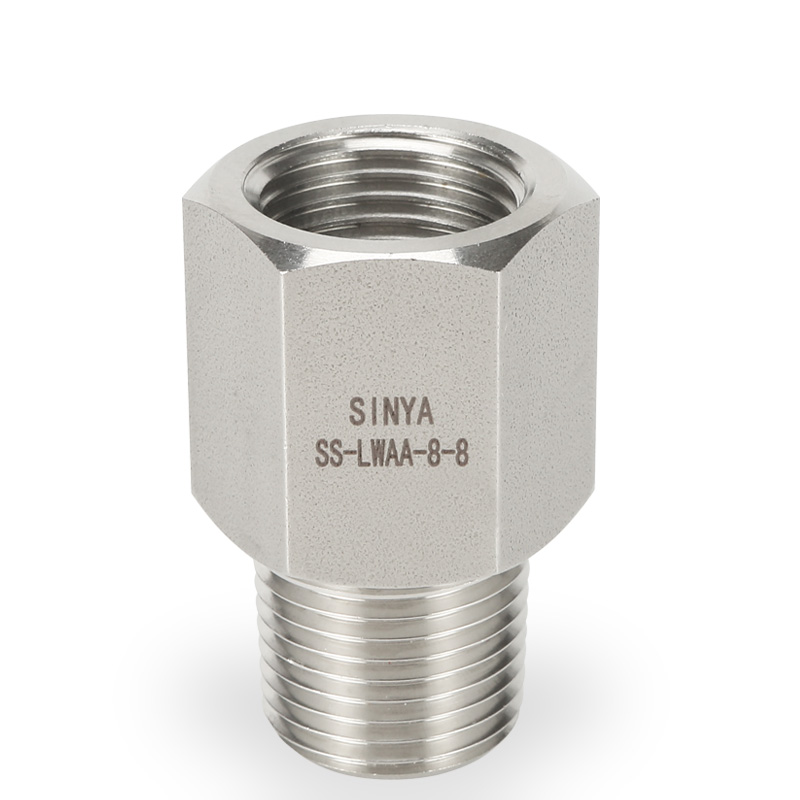

-LWAA Adapter

Order information
T
T1
L
D
W
（HEX）
(NPT)
(NPT)
(in)
(mm)
(in)
(mm)
(in)
(mm)
-LWAA-2-1
1/8
1/16
1.09
27.7
0.12
3.0
0.56
14.2
-LWAA-2-2
1/8
1/8
1.10
27.9
0.19
4.8
0.56
14.2
-LWAA-4-2
1/4
1/8
1.26
32.0
0.19
4.8
0.75
19.0
-LWAA-4-4
1/4
1/4
1.40
35.6
0.28
7.1
0.75
19.0
-LWAA-6-2
3/8
1/8
1.33
33.8
0.19
4.8
0.87
22.2
-LWAA-6-4
3/8
1/4
1.50
38.1
0.28
7.1
0.87
22.2
-LWAA-6-6
3/8
3/8
1.51
38.4
0.38
9.6
0.87
22.2
-LWAA-8-2
1/2
1/8
1.58
40.1
0.19
4.8
1.06
27.0
-LWAA-8-4
1/2
1/4
1.76
44.7
0.28
7.1
1.06
27.0
-LWAA-8-6
1/2
3/8
1.75
44.5
0.37
9.5
1.06
27.0
-LWAA-8-8
1/2
1/2
1.94
49.3
0.47
11.9
1.06
27.0
-LWAA-12-4
3/4
1/4
1.82
46.2
0.28
7.1
1.31
33.3
-LWAA-12-6
3/4
3/8
1.82
46.2
0.37
9.5
1.31
33.3
-LWAA-12-8
3/4
1/2
2.02
51.3
0.47
11.9
1.31
33.3
-LWAA-12-12
3/4
3/4
2.02
51.3
0.62
15.8
1.31
33.3
-LWAA-16-4
1
1/4
1.96
49.8
0.28
7.1
1.62
41.2
-LWAA-16-8
1
1/2
2.16
54.9
0.47
11.9
1.62
41.2
-LWAA-16-12
1
3/4
2.17
55.1
0.62
15.7
1.62
41.2
-LWAA-16-16
1
1
2.28
57.9
0.88
22.4
1.62
41.2
