LW1NN Hex Reducing Nipple / Size range from 1/8" to 2" / Instrument Pipe Fittings / Hex Reducing Nipple / -325℉~800℉ (-198℃~426℃)/ SS 304/304L ,SS 316/316S



1.Size range from 1/8" to 2".
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304/304L ,SS 316/316S.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT).
7.Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code.
8.Available in wide variety of configurations.

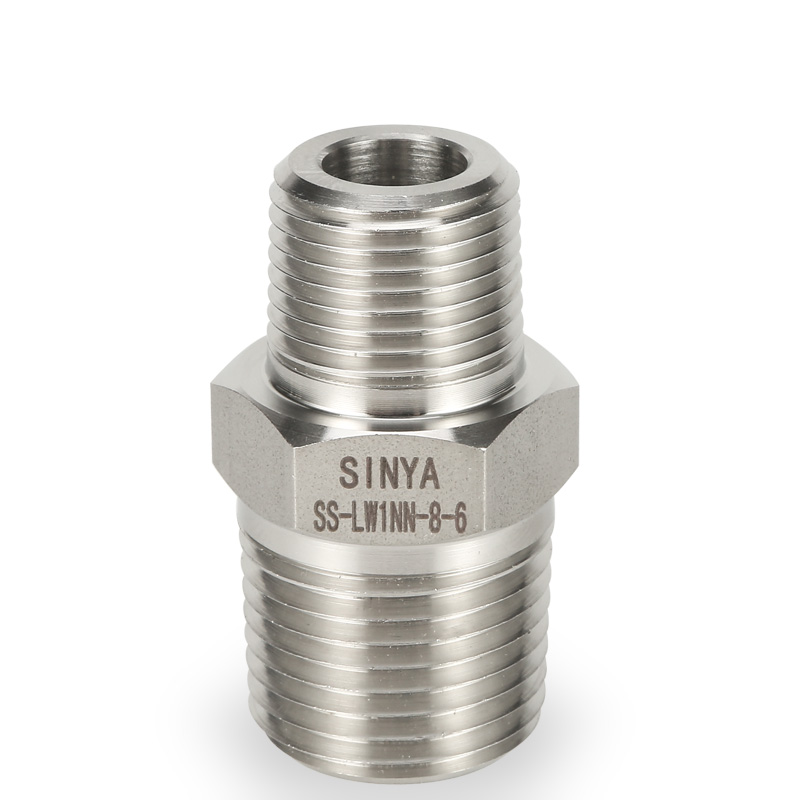

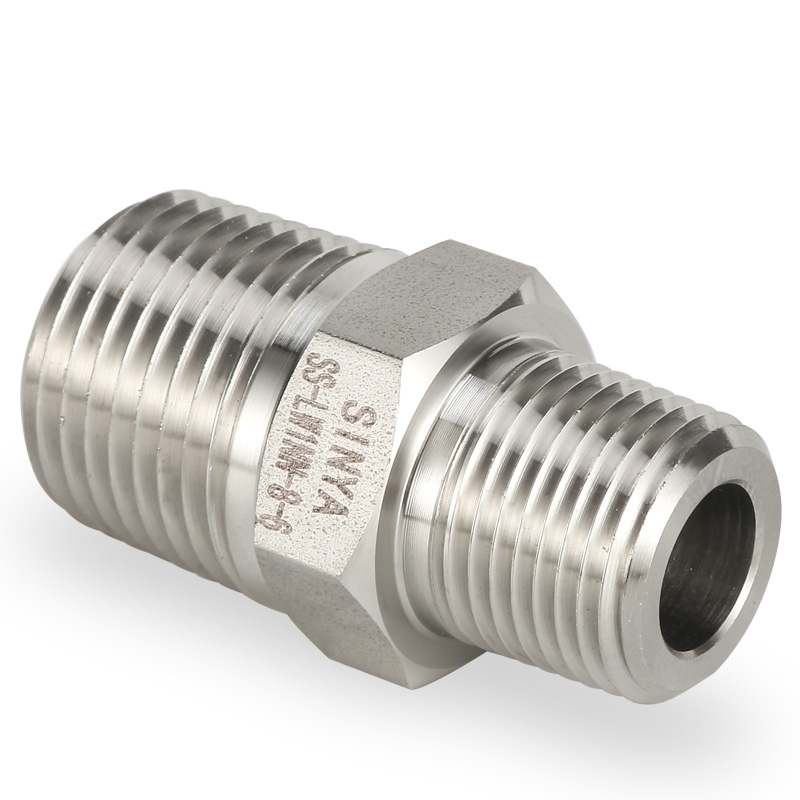

LW1NN Hex Reducing Nipple

Order information
T
T1
L
D
W
（HEX）
(NPT)
(NPT)
(in)
(mm)
(in)
(mm)
(in)
(mm)
-LW1NN-2-1
1/8
1/16
1.01
25.7
0.12
3.0
0.43
11.1
-LW1NN-4-2
1/4
1/8
1.22
31.0
0.19
4.8
0.56
14.2
-LW1NN-6-2
3/8
1/8
1.25
31.8
0.19
4.8
0.68
17.4
-LW1NN-6-4
3/8
1/4
1.43
36.3
0.28
7.1
0.68
17.4
-LW1NN-8-2
1/2
1/8
1.47
37.3
0.19
4.8
0.87
22.2
-LW1NN-8-4
1/2
1/4
1.65
41.9
0.28
7.1
0.87
22.2
-LW1NN-8-6
1/2
3/8
1.65
41.9
0.38
9.6
0.87
22.2
-LW1NN-12-4
3/4
1/4
1.65
41.9
0.28
7.1
1.06
27.0
-LW1NN-12-8
3/4
1/2
1.84
46.7
0.47
11.9
1.06
27.0
-LW1NN-16-8
1
1/2
2.13
54.1
0.47
11.9
1.38
35.1
-LW1NN-16-12
1
3/4
2.13
54.1
0.62
15.8
1.38
35.1
