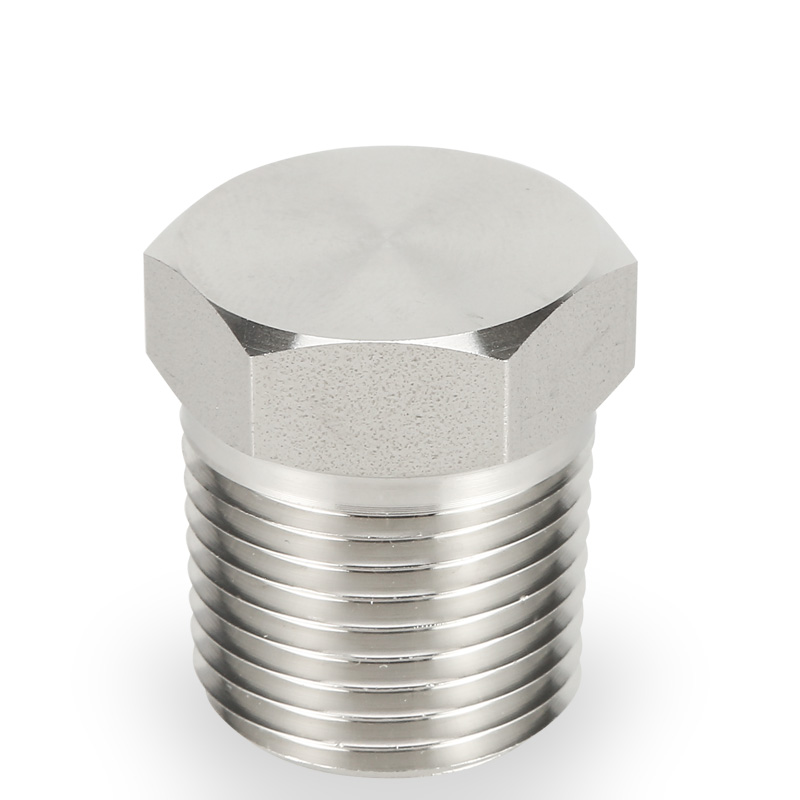

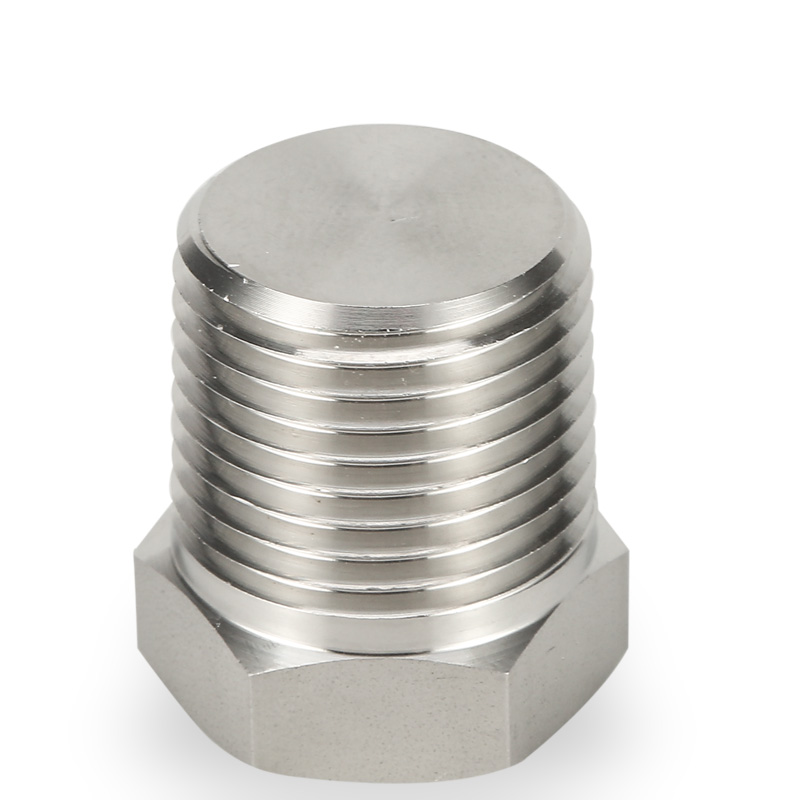

LWP Pipe Plug / S.S. Stainless Steel Size 3/4 Inch 316 Compression fittings / Tubing connections / Hex Plug Solid Plug / Size range from 1/8" to 2" / SS 304/304L ,SS 316/316S Plug Solid Plug







1.Size range from 1/8" to 2".
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304/304L ,SS 316/316S.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT).
7.Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code.
8.Available in wide variety of configurations.



-LWP Pipe Plug

Order information
T
L
W
（HEX）
(NPT)
(in)
(mm)
(in)
(mm)
-LWP-1
1/16
0.75
19.0
0.31
7.9
-LWP-2
1/8
0.75
19.0
0.43
11.1
-LWP-4
1/4
0.96
24.4
0.56
14.2
-LWP-6
3/8
0.99
25.2
0.68
17.4
-LWP-8
1/2
1.21
30.7
0.87
22.2
-LWP-12
3/4
1.21
30.7
1.06
27.0
-LWP-16
1
1.50
38.1
1.38
35.1
