SK-LOK    Fittings    LW8 Female Elbow / 316 SS Instrumentation / lbow Nipple Adaptors / Female Elbow Pipe Weld Fittings / Stainless Steel Instrumentation Pipe Fittings / SS Female Elbow Hex Coupling

LW8 Female Elbow / 316 SS Instrumentation / lbow Nipple Adaptors / Female Elbow Pipe Weld Fittings / Stainless Steel Instrumentation Pipe Fittings / SS Female Elbow Hex Coupling




1.Size range from 1/8" to 2".
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304/304L ,SS 316/316S.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT).
7.Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code.
8.Available in wide variety of configurations.

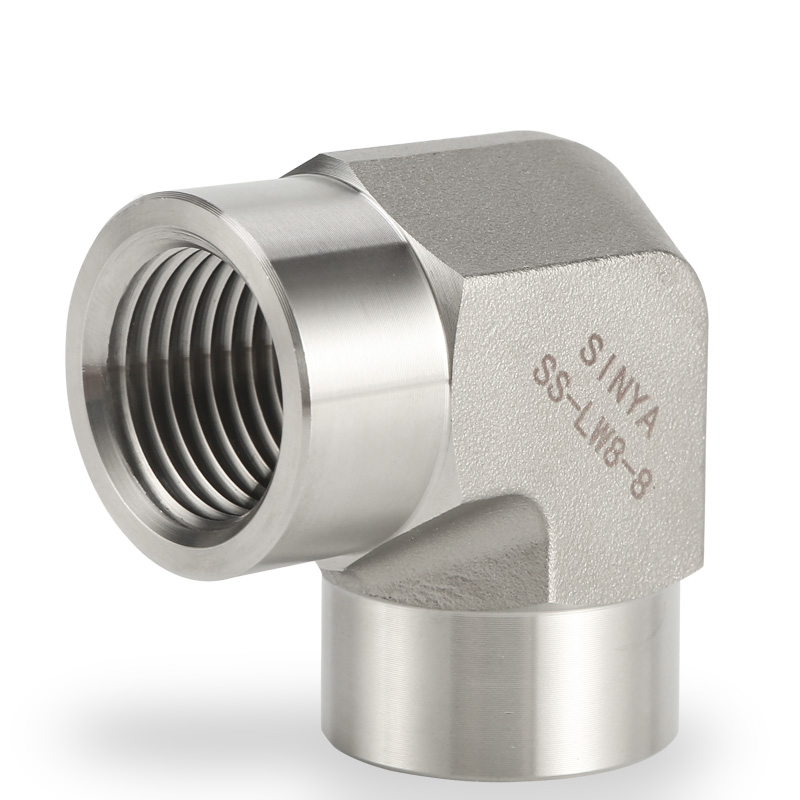

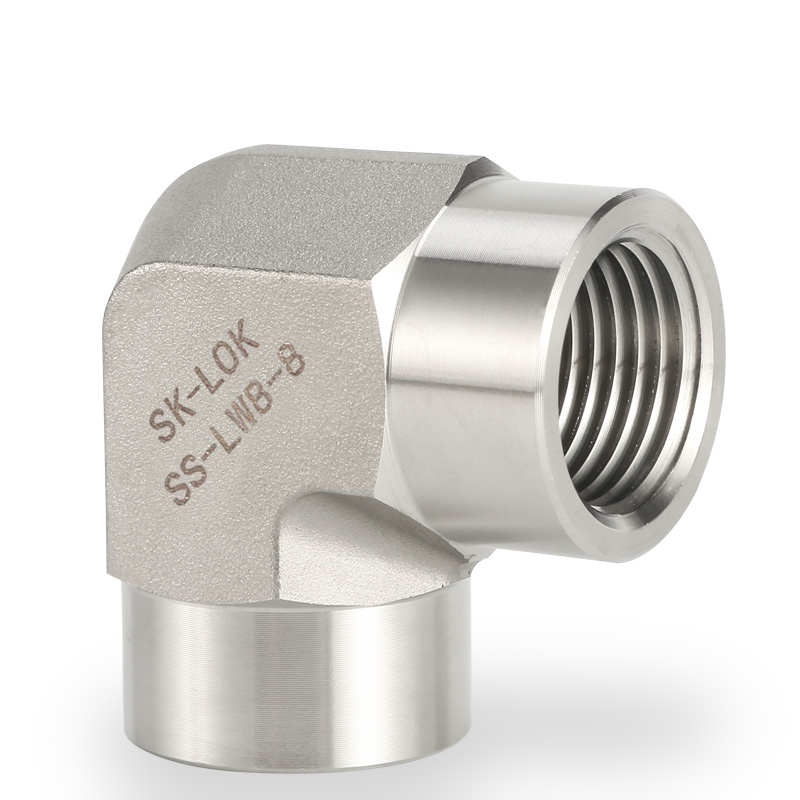

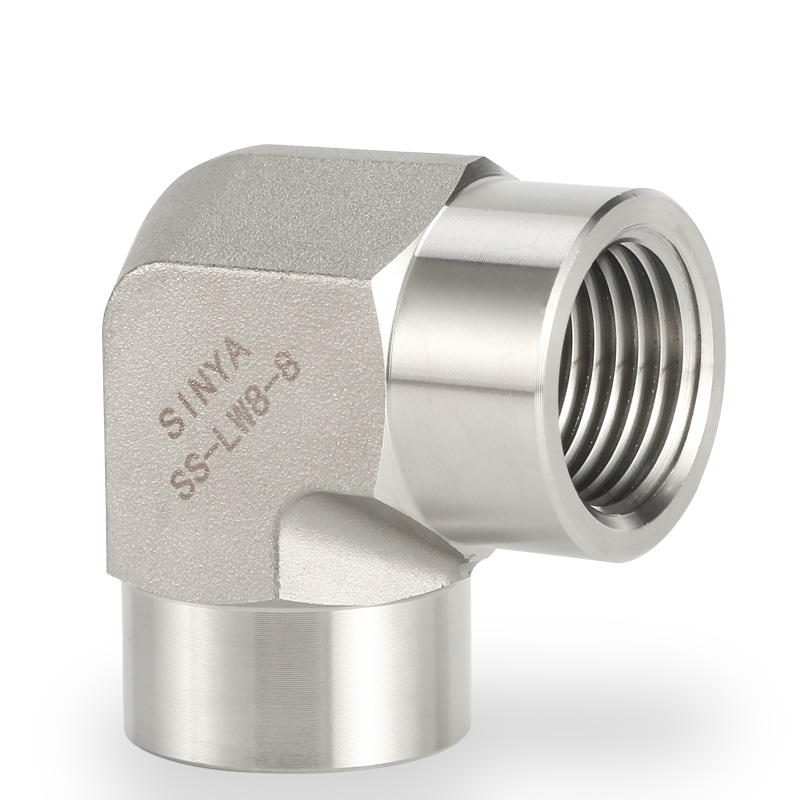

-LW8 Female Elbow

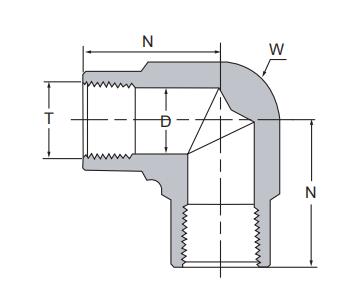

Order information
T
N
D
W
(HEX)
(NPT)
(in)
(mm)
(in)
(mm)

(in)
(mm)
-LW8-2
1/8
0.83
21.0
0.34
8.6
0.68
17.4
-LW8-4
1/4
0.94
24.0
0.45
11.4
0.82
20.8
-LW8-6
3/8
1.10
28.0
0.59
15.0
0.94
23.8
-LW8-8
1/2
1.18
30.0
0.73
18.5
1.06
27.0
-LW8-12
3/4
1.46
37.0
0.94
23.9
1.30
33.0
-LW8-16
1
1.55
39.0
1.17
29.7
1.50
38.0
