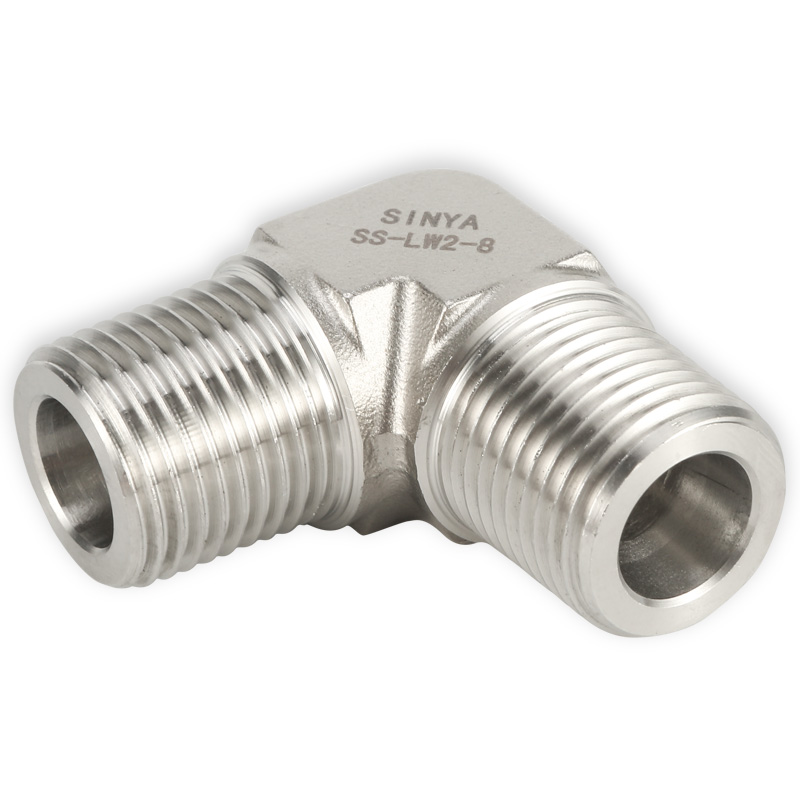

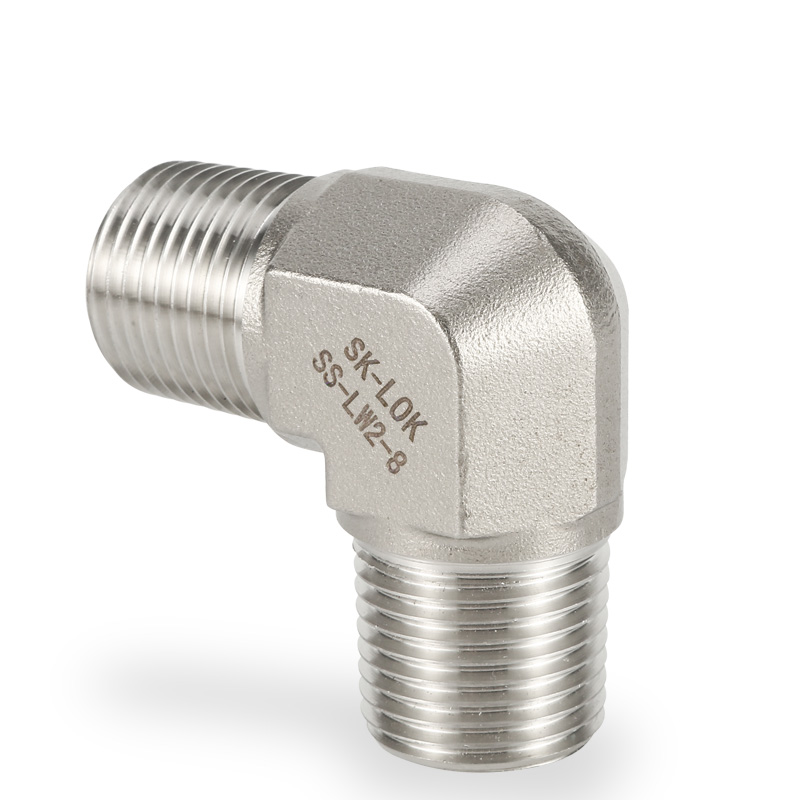

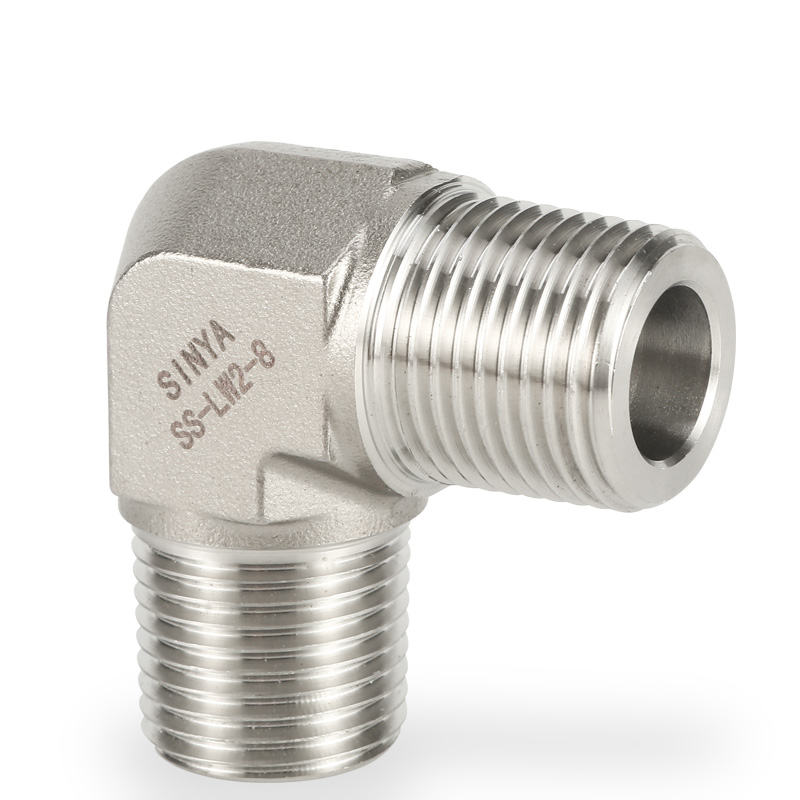

LW2 Male Elbow / 6000 PSI / Stainless steel 316/316L Monel Duplex 6Mo / Instrument Tube Fittings / Pipe Fitting / Male Thread 90 Degree Elbow / Male Adapters 1/2" 1/8 Inch / SS Pipe Fittings





1.Size range from 1/8" to 2".
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304/304L ,SS 316/316S.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT).
7.Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code.
8.Available in wide variety of configurations.

-LW2 Male Elbow

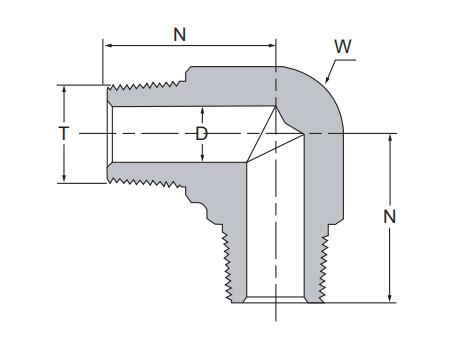

Order information
T
N
D
W
（HEX）
(NPT)
(in)
(mm)
(in)
(mm)
(in)
(mm)
-LW2-2
1/8
0.63
16.0
0.19
4.8
0.37
9.5
-LW2-4
1/4
0.83
21.0
0.28
7.1
0.56
14.2
-LW2-6
3/8
0.94
24.0
0.38
9.6
0.68
17.4
-LW2-8
1/2
1.10
28.0
0.47
11.9
0.94
23.8
-LW2-12
3/4
1.18
30.0
0.59
15.0
1.06
27.0
-LW2-16
1
1.46
37.0
0.73
18.5
1.38
35.1
