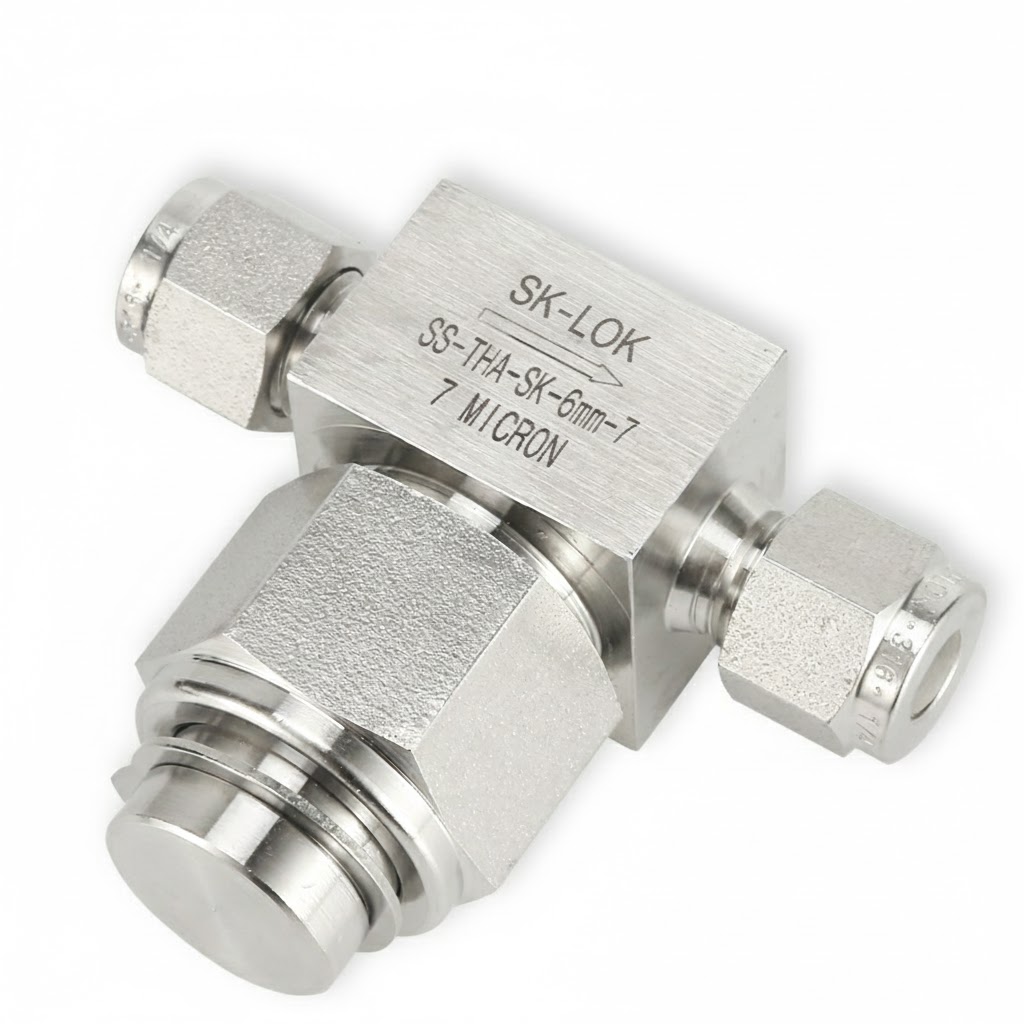

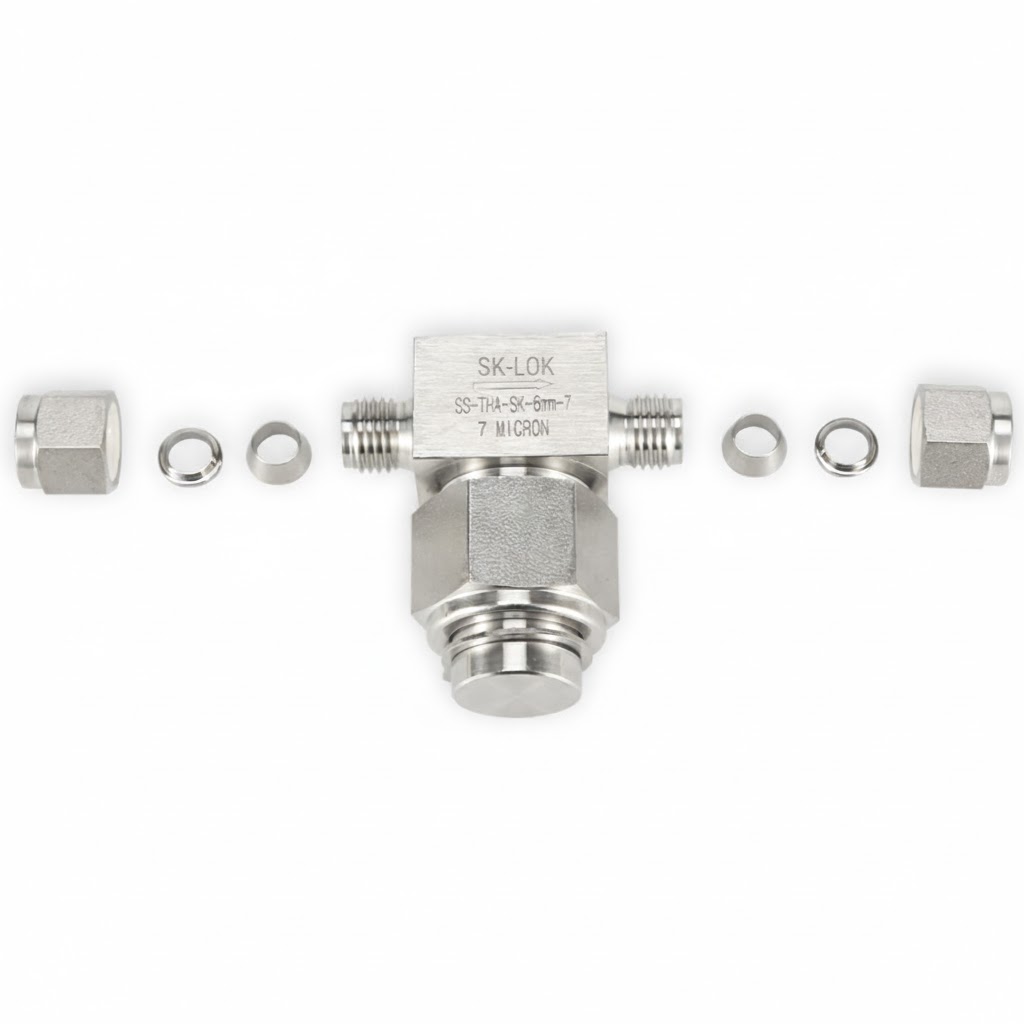

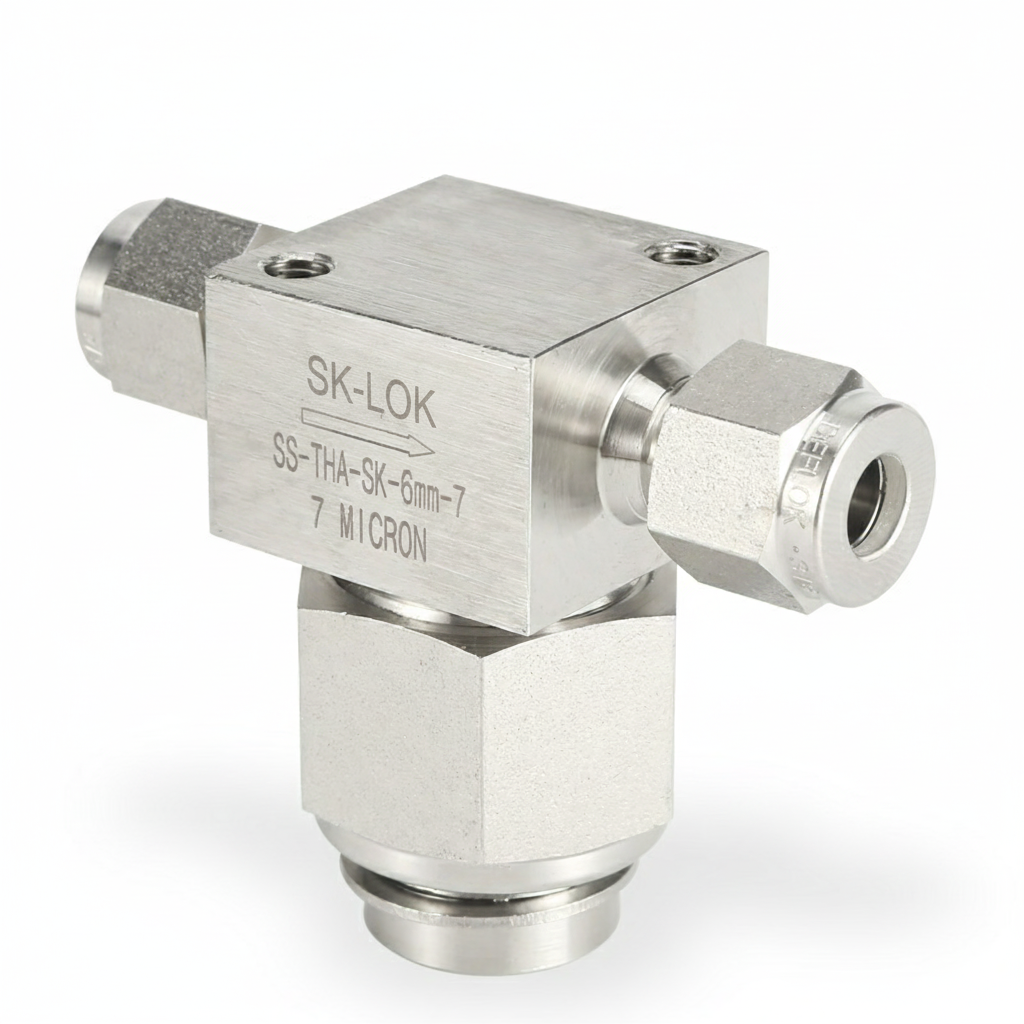

THA T-type Filter / Sintered & Strainer Type / 6000 PSI for 316 Stainless Steel and 2000 PSI for Brass/Instrumenation Tee Filter / Variety of End Connections

1.316 stainless steel and brass.
2.There are two kinds of filtering elements: sintered & strainer type.
3.The filtering accuracy of the filtering element would be six classes: 0.5, 2, 7, 15, 60 & 90 μm.
4.Some other kinds of filtering elements can be supplied according to the customer's requirement.
5.Pressure g rade: 6000 psi for 316 stainless steel and 2000 psi for brass.
6.Variety of end connections.
7. Each and every filters are tested at the factory.

-THA T-type Filter
Order information	End Connection Size		L	H
Order information	in	mm	mm	mm
-THA-SK-2	1/8	3.2	57	47.5
-THA-SK-4	1/4	6.4	63	47.5
-THA-SK-6	3/8	9.5	72	56
-THA-SK-8	1/2	12.7	77	56
-THA-SK-6mm	0.24	6	63	47.5
-THA-SK-8mm	0.32	8	72	56
-THA-SK-10mm	0.39	10	72.5	56
-THA-SK-12mm	0.47	12	77	56
-THA-LWF-2	NPT1/8		51	47.5
-THA-LWF-4	NPT1/4		54	47.5
-THA-LWF-6	NPT3/8		54	47.5
-THA-LWM-4	NPT1/4		54	47.5
-THA-LWM-6	NPT3/8		60	56
-THA-LWM-8	NPT1/2		70	56

-THA T-type Filter
Order information	B		D		W
Order information	in	mm	in	mm	in	mm
-THA-SK-2	0.39	9.8	1.00	25.4	1.00	25.4
-THA-SK-4	0.39	9.8	1.00	25.4	1.00	25.4
-THA-SK-6	0.46	11.6	1.13	28.8	1.13	28.8
-THA-SK-8	0.46	11.6	1.13	28.8	1.13	28.8
-THA-SK-6mm	0.39	9.8	1.00	25.4	1.00	25.4
-THA-SK-8mm	0.46	11.6	1.00	25.4	1.00	25.4
-THA-SK-10mm	0.46	11.6	1.13	28.8	1.13	28.8
-THA-SK-12mm	0.46	11.6	1.13	28.8	1.13	28.8
-THA-LWF-2	0.39	9.8	1.00	25.4	1.00	25.4
-THA-LWF-4	0.39	9.8	1.00	25.4	1.00	25.4
-THA-LWF-6	0.39	9.8	1.00	25.4	1.00	25.4
-THA-LWM-4	0.39	9.8	1.00	25.4	1.00	25.4
-THA-LWM-6	0.46	11.6	1.13	28.8	1.13	28.8
-THA-LWM-8	0.46	11.6	1.13	28.8	1.13	28.8
