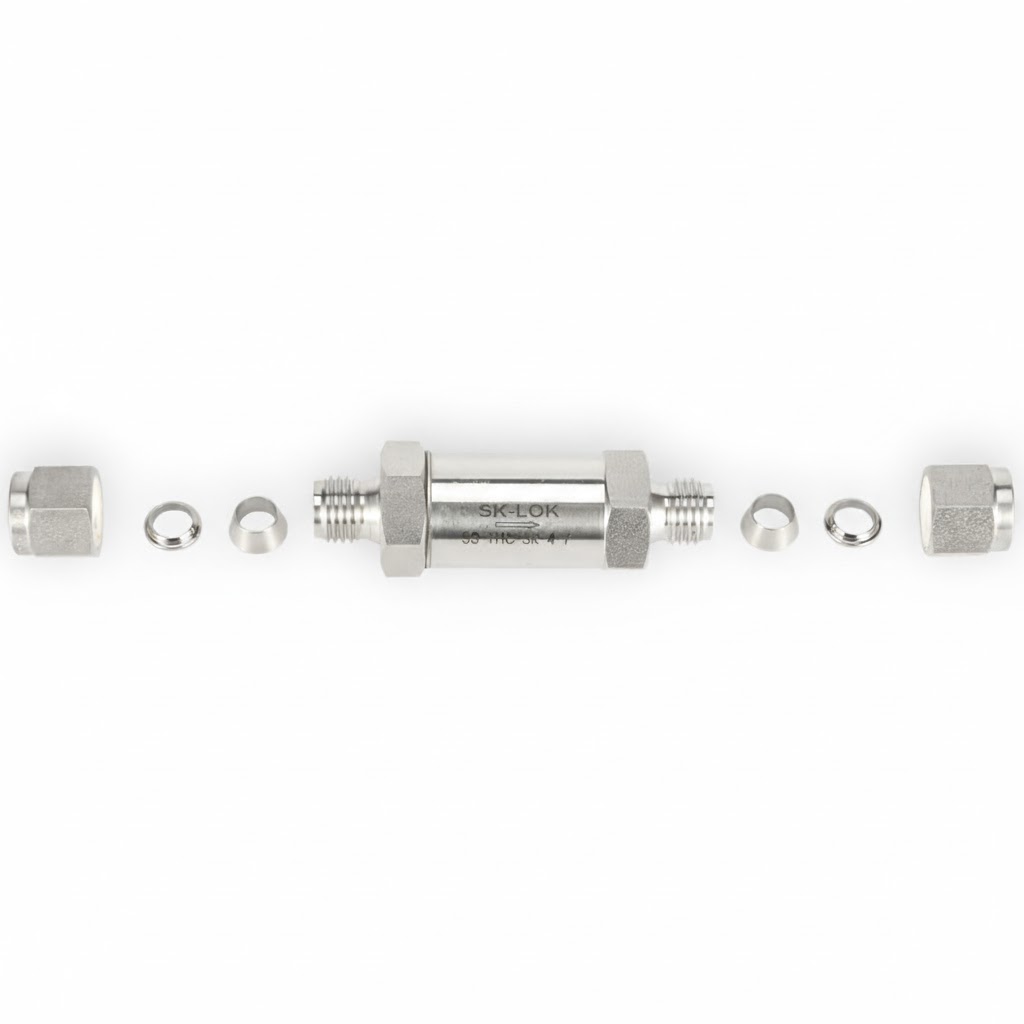

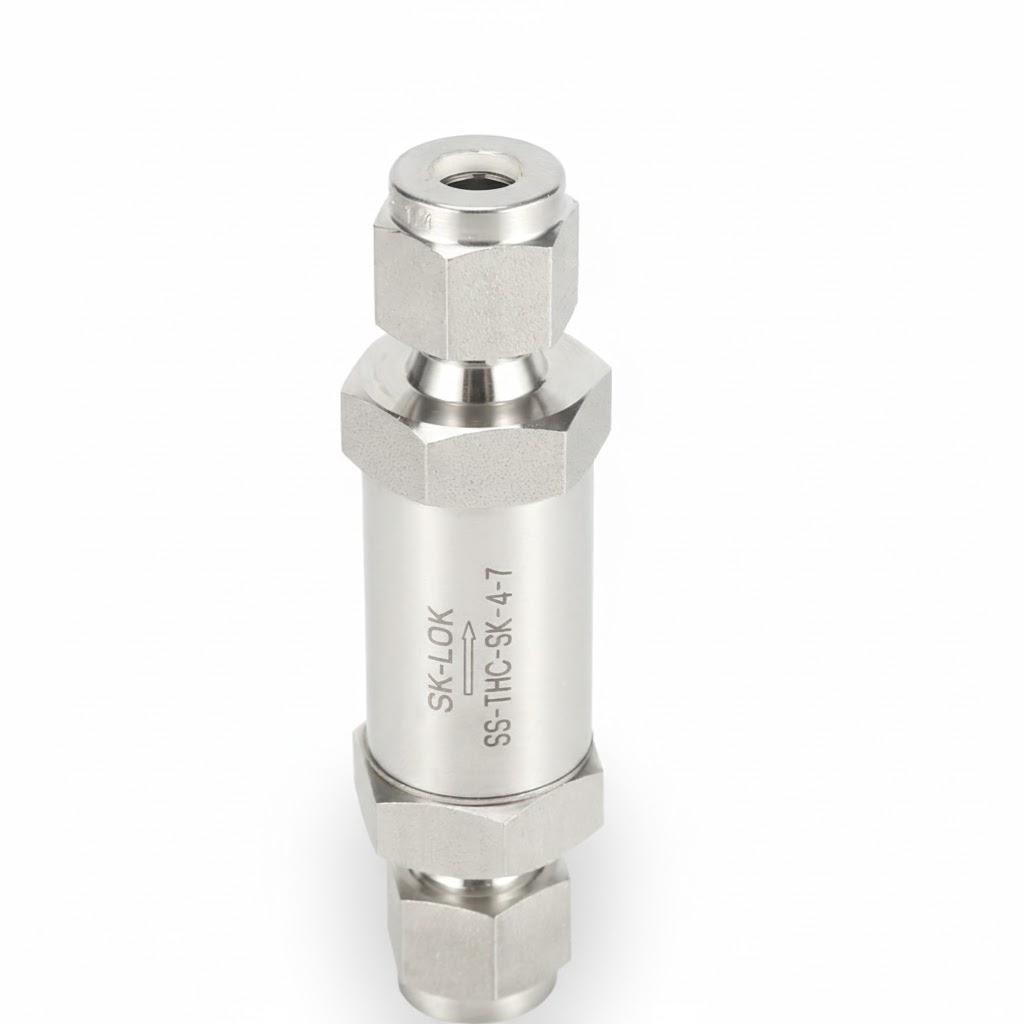

THC In-line Filter / Compression Tube Fittings / Instrumentation Straight In-Line Filter / S316 Micron Filter / 6000 psi for 316 stainless steel and 2000 psi for brass / sintered & strainer type







1.316 stainless steel and brass.
2.There are two kinds of filtering elements: sintered & strainer type.
3.The filtering accuracy of the filtering element would be six classes: 0.5, 2, 7, 15, 60 & 90 μm.
4.Some other kinds of filtering elements can be supplied according to the customer's requirement.
5.Pressure g rade: 6000 psi for 316 stainless steel and 2000 psi for brass.
 6.Variety of end connections.
7. Each and every filters are tested at the factory.
-THC In-line Filter

Order information
End Connection Size
L
W
in
mm
in
mm
in
mm
-THC-SK-2
1/8
3.2
2.26
57.5
0.55
14
-THC-SK-4
1/4
6.4
2.76
70.0
0.75
16
-THC-SK-6
3/8
9.5
3.2 1
81.5
1.0 2
26
-THC-SK-8
1/2
12.7
3.4 8
88.5
1.0 2
26
-THC-SK-3mm
0.1 2
3
2.2 6
57.5
0.5 5
14
-THC-SK-6mm
0.2 4
6
2.9 5
75.0
0.7 5
19
-THC-SK-10mm
0.3 9
10
3.2 1
81.5
1.0 2
26
-THC-SK-12mm
0.4 7
12
3.4 8
88.5
1.0 2
26
-THC-LWF-2
NPT1/8
2.1 7
55.0
0.5 5
14
-THC-LWF-4
NPT1/4
2.4 8
63.0
0.7 5
19
-THC-LWM-4
NPT1/4
2.6 8
68.0
0.7 5
19
-THC-LWM-6
NPT3/8
2.8 3
72.0
0.8 7
22
