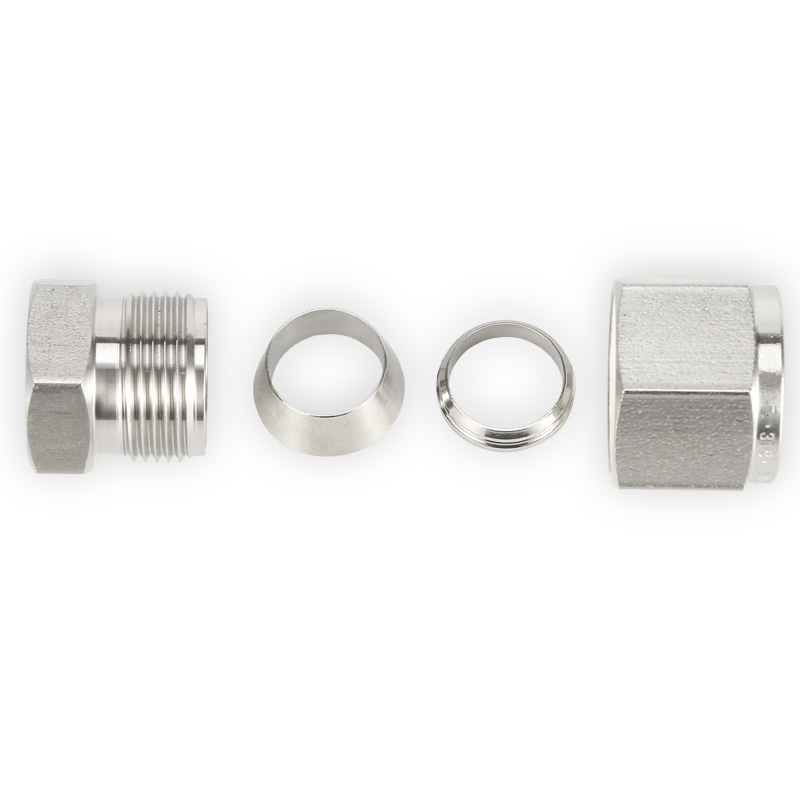

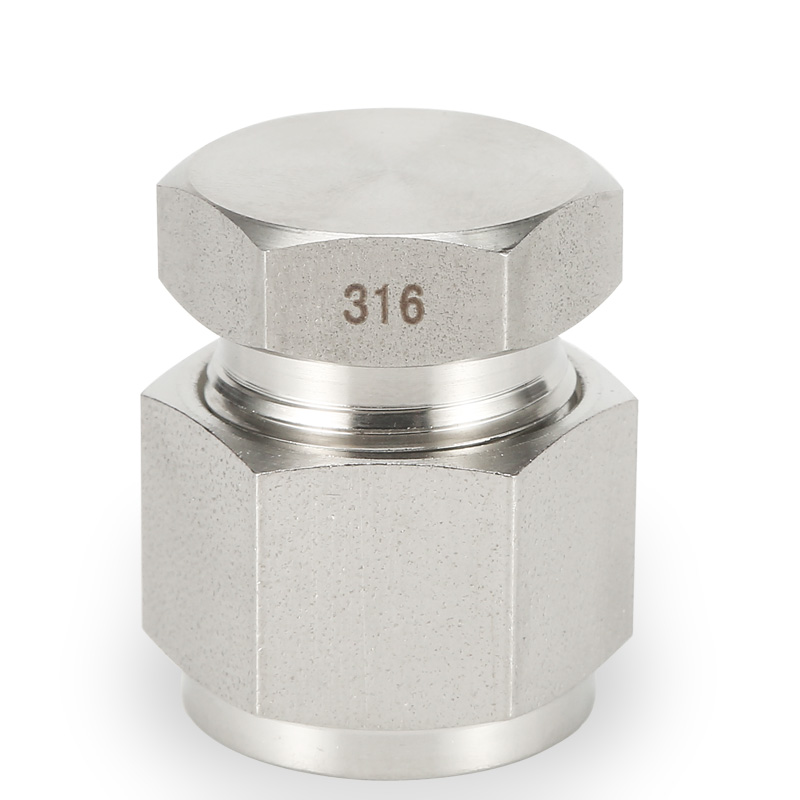

SKC Cap / Stainless Steel Compression Fittings / 3/8" Tube End Instrumentation Connector / 6000PSI / Twin Ferrule Tube Plug / Tubing Plug / Compression Tube End

1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.
-SKC Cap（in）

Order information
A
W
L
in
mm
in
mm
in
mm
-SKC-1
1/16
1.58
5/16
7.93
0.59
14.98
-SKC-2
1/8
3.17
7/16
11.11
0.79
20.06
-SKC-3
3/16
4.76
7/16
11.11
0.84
21.84
-SKC-4
1/4
6.35
1/2
12.70
0.91
23.11
-SKC-5
5/16
7.93
9/16
14.28
0.96
24.38
-SKC-6
3/8
9.52
5/8
15.87
1.01
26.65
-SKC-8
1/2
12.70
13/16
20.63
1.15
29.21
-SKC-10
5/8
15.87
15/16
23.81
1.18
29.97
-SKC-12
3/4
19.05
1 1/16
26.98
1.24
31.49
-SKC-14
7/8
22.22
1 3/16
30.16
1.34
34.04
-SKC-16
1
25.40
1 3/8
34.92
1.51
38.35
-SKC Cap（mm）

Order information
A
W
L
mm
mm
mm
-SKC-2mm
2
12
20.1
-SKC-3mm
3
12
20.1
-SKC-4mm
4
12
21.3
-SKC-6mm
6
14
23.1
-SKC-8mm
8
15
24.6
-SKC-10mm
10
18
26.6
-SKC-12mm
12
22
29.1
-SKC-15mm
15
24
29.9
-SKC-16mm
16
24
29.9
-SKC-18mm
18
27
31.4
-SKC-20mm
20
30
34.0
-SKC-22mm
22
30
34.0
-SKC-25mm
25
35
38.5
