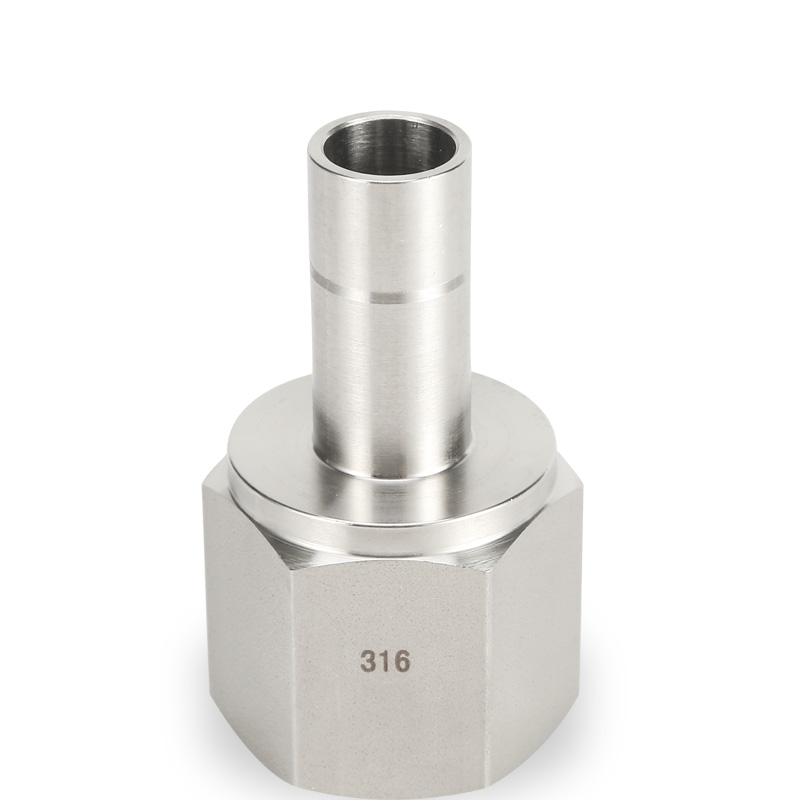

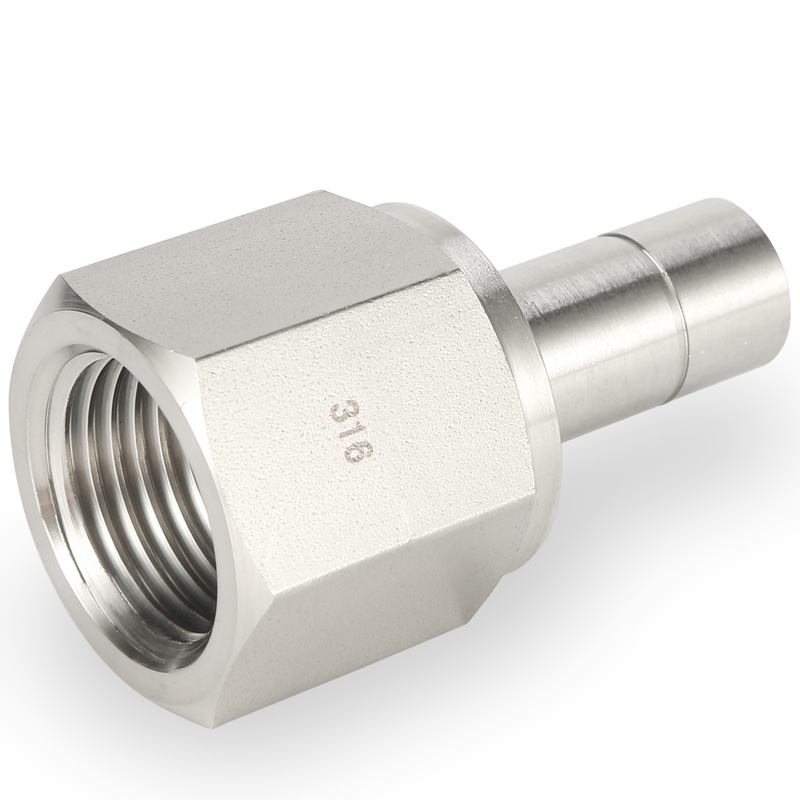

SKAF Female Adapter / NPT Threaded Reducing Adapte / 6000 PSI / 316 SS Female Adaptor / Pipe Weld Couplings and Adapte / Compression Fittings / Instrumentation Fittings





1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.





-SKAF Female Adapter（in）

Order information
A
P
D
w
L
in
mm
NPT
mm
in
mm
mm
-SKAF-2-2
1/8
3.17
1/8
2.28
9/16
14.28
31.5
-SKAF-2-4
1/8
3.17
1/4
2.28
1/4
19.05
35.3
-SKAF-3-2
3/16
4.76
1/8
3.04
9/16
14.28
32
-SKAF-3-4
3/16
4.76
1/4
3.04
1/4
19.05
35.8
-SKAF-4-2
1/4
6.35
1/8
4.82
9/16
14.28
33.02
-SKAF-4-4
1/4
6.35
1/4
4.82
1/4
19.05
37.08
-SKAF-4-6
1/4
6.35
3/8
4.82
7/8
22.22
39.37
-SKAF-4-8
1/4
6.35
1/2
4.82
11/16
26.98
45.46
-SKAF-5-2
5/16
7.93
1/8
6.35
9/16
14.28
34.29
-SKAF-5-4
5/16
7.93
1/4
6.35
1/4
19.05
37.6
-SKAF-6-2
3/8
9.52
1/8
7.11
9/16
14.28
34.3
-SKAF-6-4
3/8
9.52
1/4
7.11
1/4
19.05
38.1
-SKAF-6-6
3/8
9.52
3/8
7.11
7/8
22.22
40.4
-SKAF-6-8
3/8
9.52
1/2
7.11
1 1/16
26.98
46.73
-SKAF-8-4
1/2
12.7
1/4
9.9
1/4
19.05
43.43
-SKAF-8-6
1/2
12.7
3/8
9.9
7/8
22.22
45.47
-SKAF-8-8
1/2
12.7
1/2
9.9
1 1/16
26.98
51.82
-SKAF-10-6
5/8
15.87
3/8
12.7
7/8
22.22
48.26
-SKAF-10-8
5/8
15.87
1/2
12.7
1 1/16
26.98
53.08
-SKAF-10-12
5/8
15.87
3/4
12.7
1 1/4
31.75
55.37
-SKAF-12-8
3/4
19.05
1/2
14.98
1 1/16
26.98
52.8
-SKAF-12-12
3/4
19.05
3/4
14.98
1 5/16
31.75
54.86
-SKAF-12-16
3/4
19.05
1
14.98
1 5/16
41.27
58.42
-SKAF Female Adapter（mm）

Order information
A
P
D
W
L
mm
NPT
mm
in
mm
mm
-SKAF-3mm-2
3
1/8
1.8
9/16
14
21.6
-SKAF-3mm-4
3
1/4
1.8
3/4
19
34.1
-SKAF-4mm-2
4
1/8
2.4
9/16
14
32.0
-SKAF-4mm-4
4
1/4
2.4
3/4
19
34.8
-SKAF-6mm-2
6
1/8
4.6
9/16
14
32.5
-SKAF-6mm-4
6
1/4
4.6
3/4
19
37.1
-SKAF-6mm-6
6
3/8
4.6
7/8
22
39.6
-SKAF-6mm-8
6
1/2
4.6
11/16
27
37.1
-SKAF-8mm-2
8
1/8
6.4
9/16
14
34.3
-SKAF-8mm-4
8
1/4
6.4
3/4
19
37.6
-SKAF-10mm-2
10
1/8
7.1
9/16
14
35.3
-SKAF-10mm-4
10
1/4
7.7
3/4
19
38.1
-SKAF-10mm-6
10
3/8
7.7
7/8
22
40.1
-SKAF-10mm-8
10
1/2
7.7
11/16
27
46.5
-SKAF-12mm-4
12
1/4
9.1
3/4
19
43.7
-SKAF-12mm-6
12
3/8
9.5
7/8
22
46.7
-SKAF-12mm-8
12
1/2
9.1
11/16
27
52.3
-SKAF-16mm-6
16
3/8
12.7
7/8
22
48.3
-SKAF-16mm-8
16
1/2
12.7
11/16
27
53.9
-SKAF-16mm-12
16
3/4
12.7
11/4
32
55.4
-SKAF-20mm-8
20
1/2
15.1
11/16
27
53.9
-SKAF-20mm-12
20
3/4
15.1
11/4
32
55.4
-SKAF-20mm-16
20
1
15.1
15/8
41
62.5
