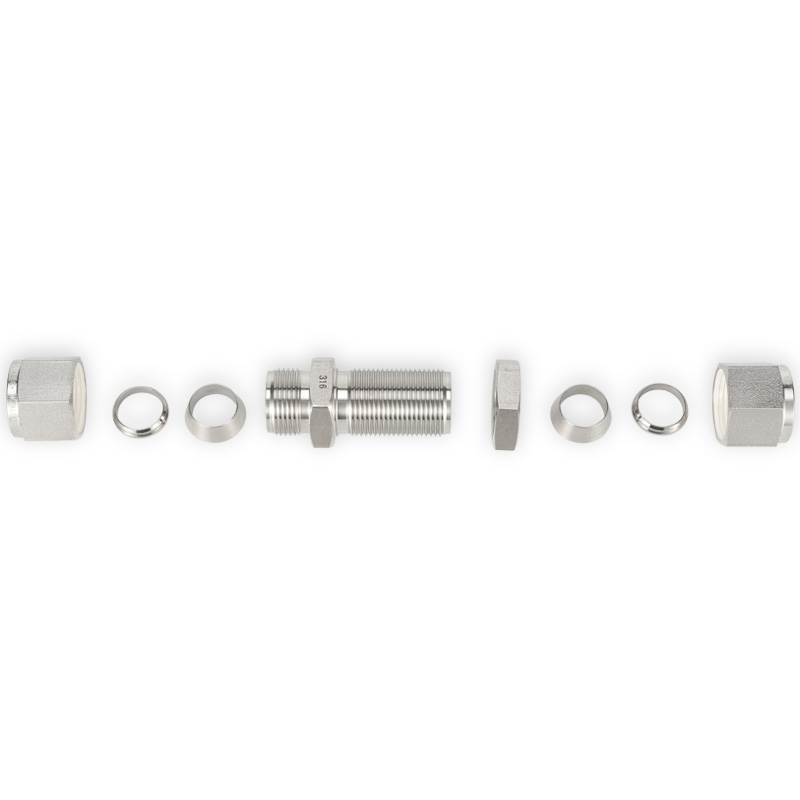

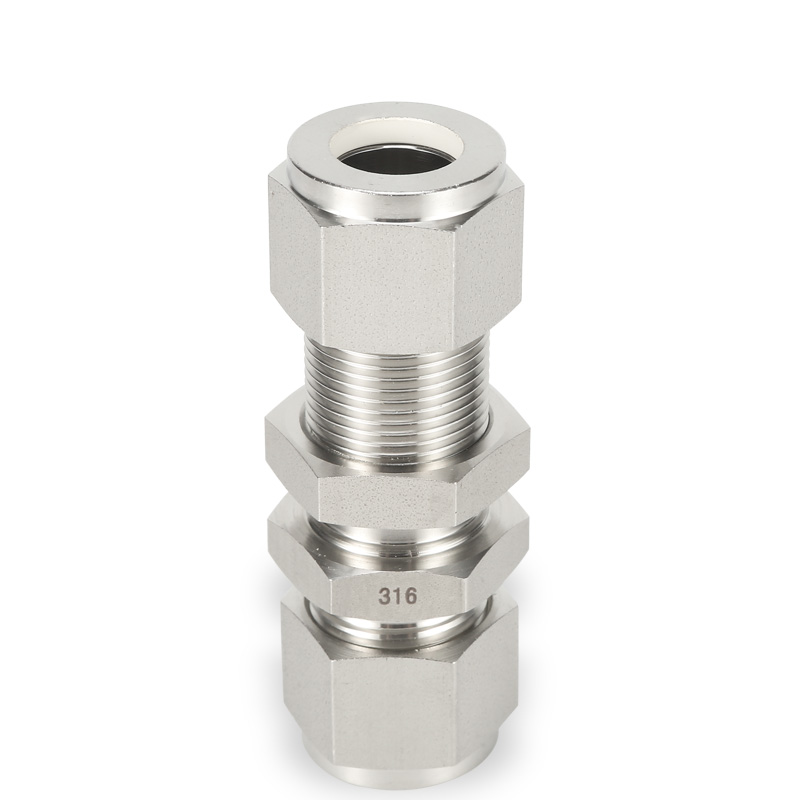

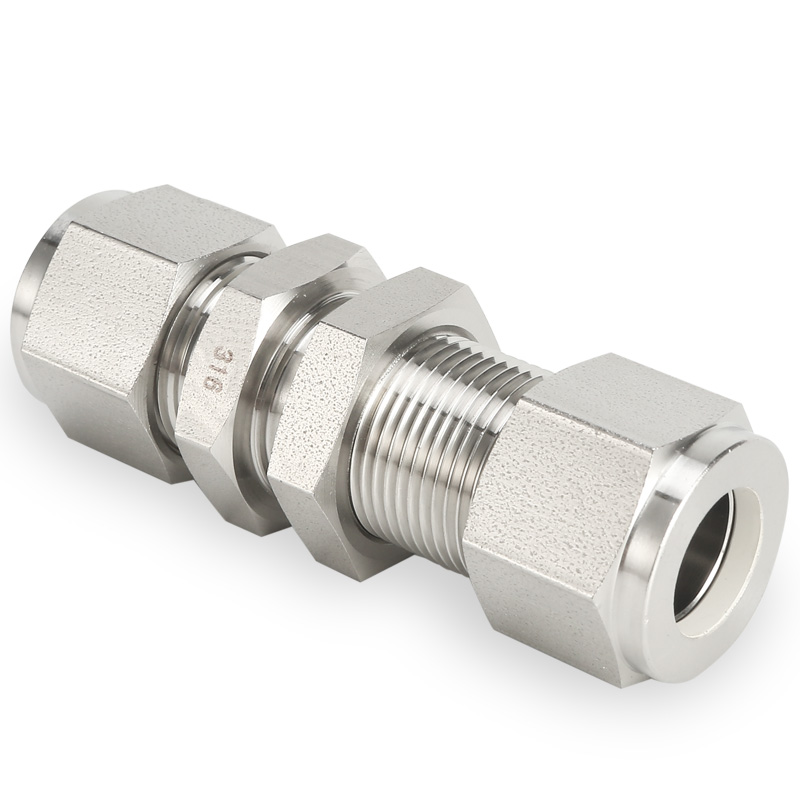

SK61 Bulkhead Union / 1/2" Tube OD 1/8" Tube Size / Hex 316 Stainless Steel 1/4" Compression Tube Fitting / Hydraulic Bulkhead Union / Double Ferrule Fittings / Duplex Monel 6Mo Bulkhead Union





1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.



  -SK61 Bulkhead Union（in）

Order information
A
D
W
L
Hole Size
in
mm
mm
in
mm
mm
in
mm
-SK61-1
1/16
1.58
1.27
5/16
7.93
31.50
13/64
5.16
-SK61-2
1/8
3.17
2.28
1/2
12.70
51.30
21/64
8.33
-SK61-3
3/16
4.76
3.04
9/16
14.28
53.59
25/64
9.92
-SK61-4
1/4
6.35
4.82
5/8
15.87
57.65
29/64
11.50
-SK61-5
5/16
7.93
6.35
11/16
17.46
60.70
33/64
13.09
-SK61-6
3/8
9.52
7.11
3/4
19.05
62.20
37/64
14.68
-SK61-8
1/2
12.70
10.41
15/16
23.81
71.12
49/64
19.44
-SK61-10
5/8
15.87
12.70
1 1/16
26.98
72.64
57/64
22.62
-SK61-12
3/4
19.05
12.70
1 3/16
30.16
78.99
1 1/64
25.79
-SK61-16
1
25.40
22.35
1 5/8
41.27
95.76
1 21/64
33.73
  -SK61 Bulkhead Union（mm）

Ordering Number
A
D
W
L
Hole Size
mm
mm
mm
mm
mm
-SK61-3mm
3
2.4
14
51.3
8.3
-SK61-4mm
4
2.4
14
53.6
9.9
-SK61-6mm
6
4.8
16
57.7
11.5
-SK61-8mm
8
6.4
18
61
13.1
-SK61-10mm
10
7.9
22
63.7
16.25
-SK61-12mm
12
9.5
24
71
19.5
-SK61-15mm
15
11.9
27
72.5
22.8
-SK61-16mm
16
12.7
27
72.5
22.8
-SK61-18mm
18
15.1
30
78.9
26
-SK61-20mm
20
15.9
35
84.5
29
-SK61-25mm
25
21.8
40
96
33.7
