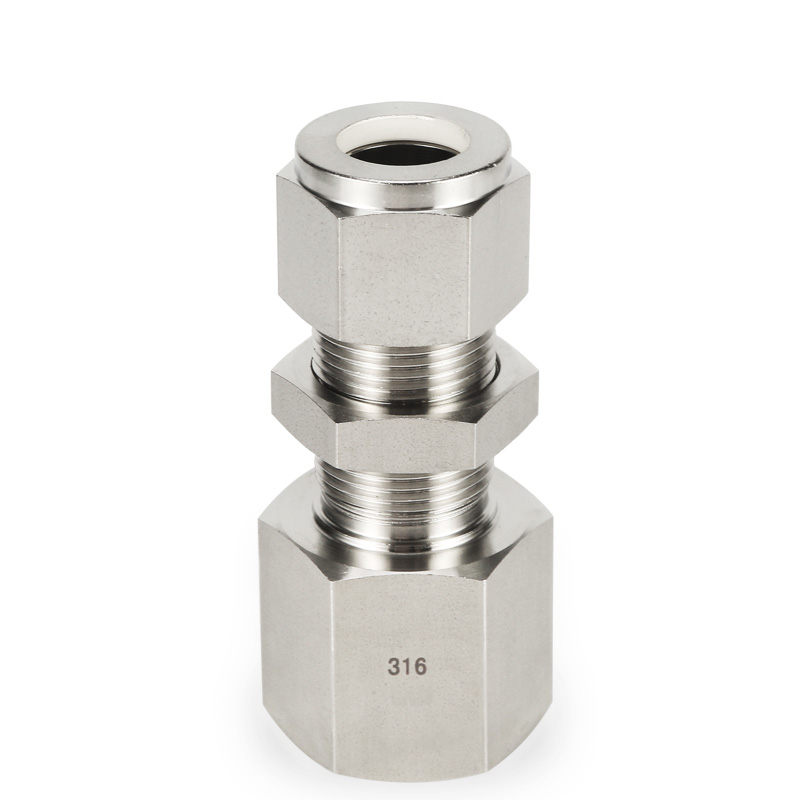

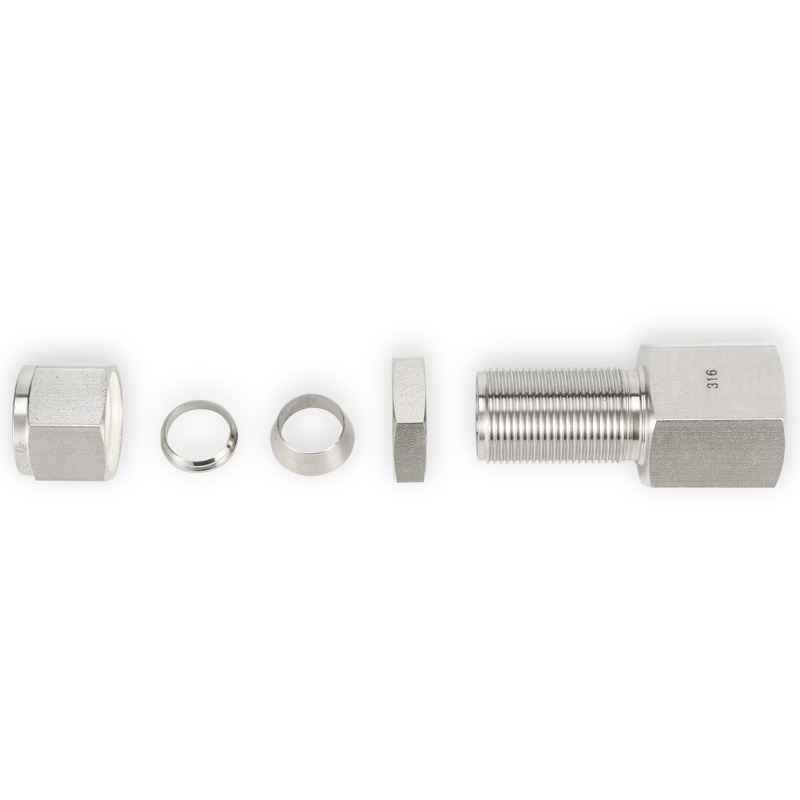

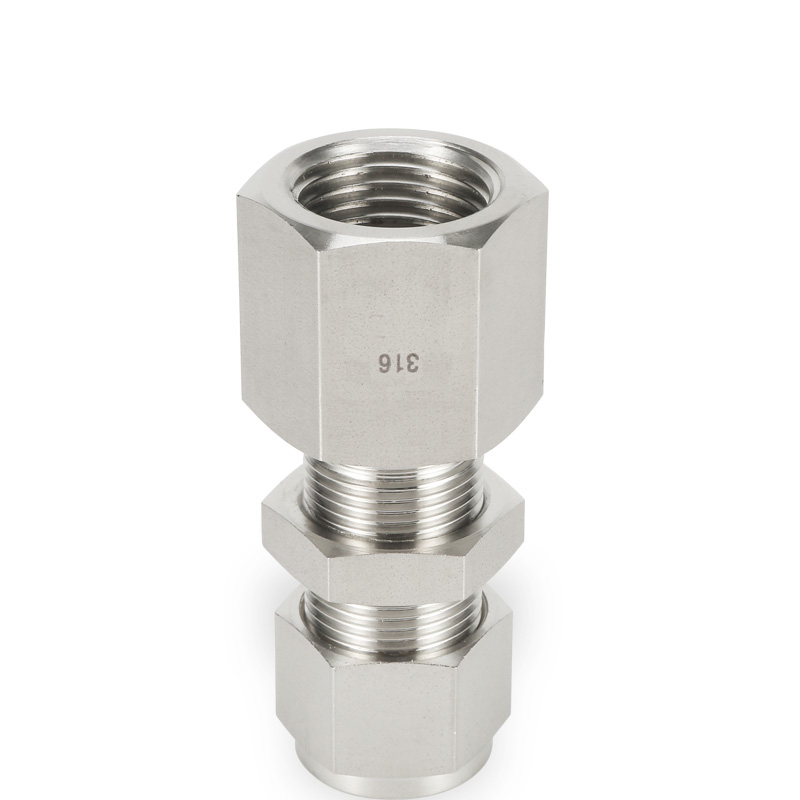

SK71 Bulkhead Female Connector / 316 Stainless Steel Compression Fitting / Swagelok Type Pipe Fitting / Double Ferrule Tube Fitting / NPT Bulkhead Female Connector / 1/16" to 1", and 2mm to 25mm





1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.
 -SK71 Bulkhead Female Connector（in）

Order information
A
P
D
W
L
Hole Size
in
mm
NPT
mm
in
mm
mm
in
mm
-SK71-2-2
1/8
3.17
1/8
2.28
1/2
12.70
44.7
21/64
8.33
-SK71-4-2
1/4
6.35
1/8
4.82
5/8
15.87
46.99
29/64
11.50
-SK71-4-4
1/4
6.35
1/4
4.82
5/8
15.87
51.81
29/64
11.50
-SK71-6-4
3/8
9.52
1/4
7.11
3/4
19.05
55.11
37/64
14.68
-SK71-8-6
1/2
12.70
3/8
10.41
15/16
23.81
61.72
49/64
19.44
-SK71-8-8
1/2
12.70
1/2
10.41
15/16
23.81
66.54
49/64
19.44
