SKPC Port Connector / Connector Unions / SS Instrumentation / 316L Tube Fittings / 3/8 Tube Adaptor / Compression Tube Port / 1/16" to 1", and 2mm to 25mm / NPT, BSP, BSPT, UNF, ISO, SAE







1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.

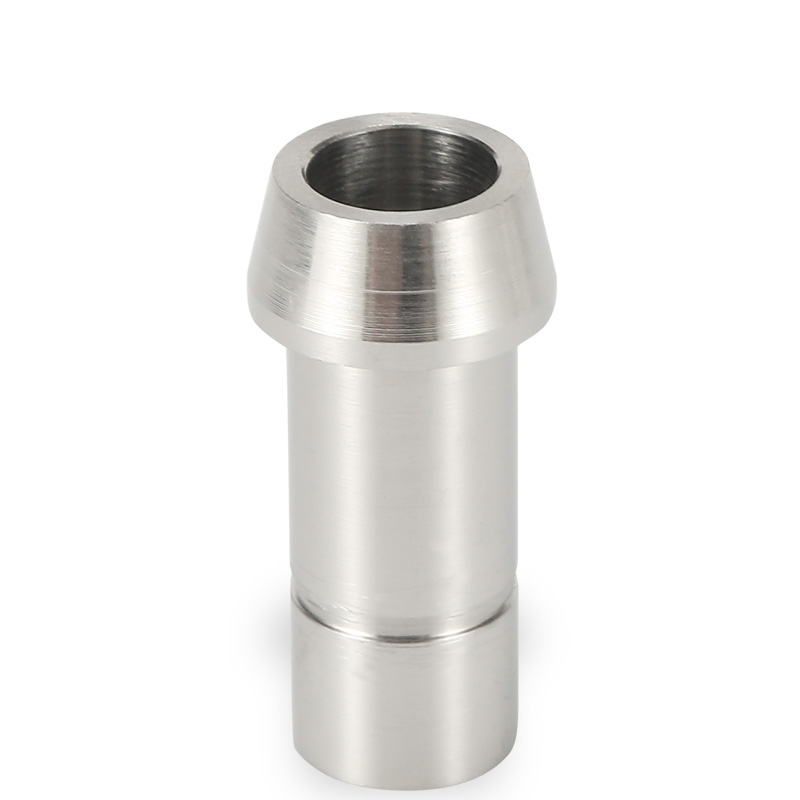

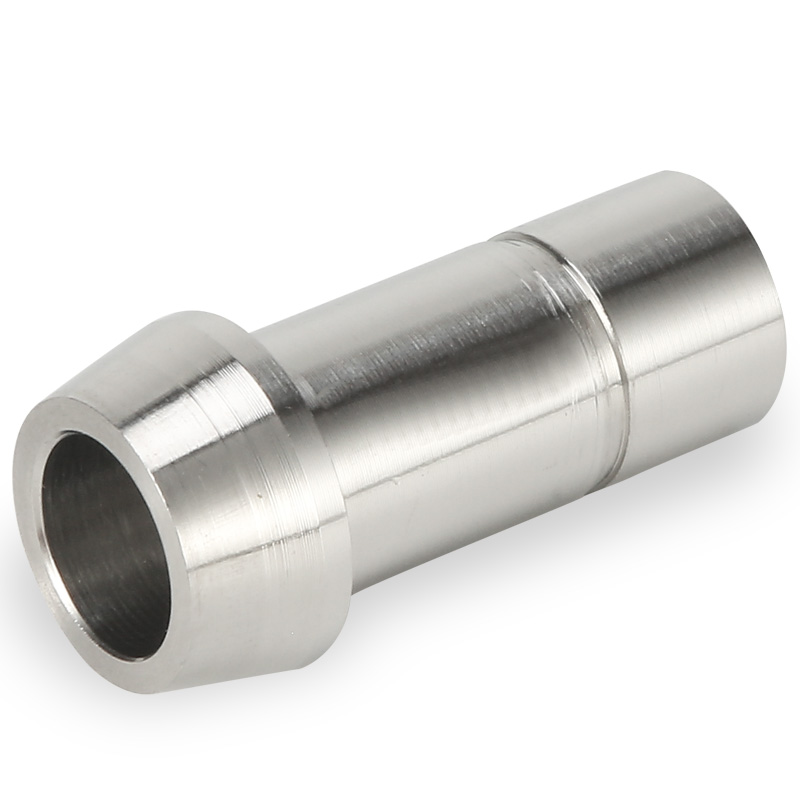

 -SKPC Port Connector(in)

Order information
A
D
L
J
in
mm
mm
mm
in
mm
-SKPC-1
1/16
1.58
0.76
13.72
0.13
3.30
-SKPC-2
1/8
3.17
2.28
22.35
0.24
6.10
-SKPC-4
1/4
6.35
4.82
24.64
0.37
9.40
-SKPC-5
5/16
7.93
6.35
25.90
0.43
10.92
-SKPC-6
3/8
9.52
7.62
26.16
0.50
12.70
-SKPC-8
1/2
12.70
9.90
35.81
0.62
15.75
-SKPC-12
3/4
19.05
14.58
37.34
0.87
22.10
-SKPC-16
1
25.40
20.32
48.26
1.12
28.45
  -SKPC Port Connector(mm)

Order information
A
D
L
J
mm
mm
mm
mm
-SKPC-3mm
3
2.1
22.2
6.0
-SKPC-6mm
6
4.4
24.6
9.0
-SKPC-8mm
8
6.2
25.9
11.0
-SKPC-10mm
10
8.2
26.1
13.1
-SKPC-12mm
12
9.1
35.8
15.0
-SKPC-16mm
16
12.7
37.4
19.0
-SKPC-18mm
18
13.9
37.4
21.1
