SK-LOK    Fittings    Tube Fittings    SK8 Female Elbow / Metric Tube 90 Degrees Compression Tube Fitting / 316 Stainless Steel / Twin Ferrule Female Elbows / Forged Body Double Ferrule Compression 90degree Tube Fittings

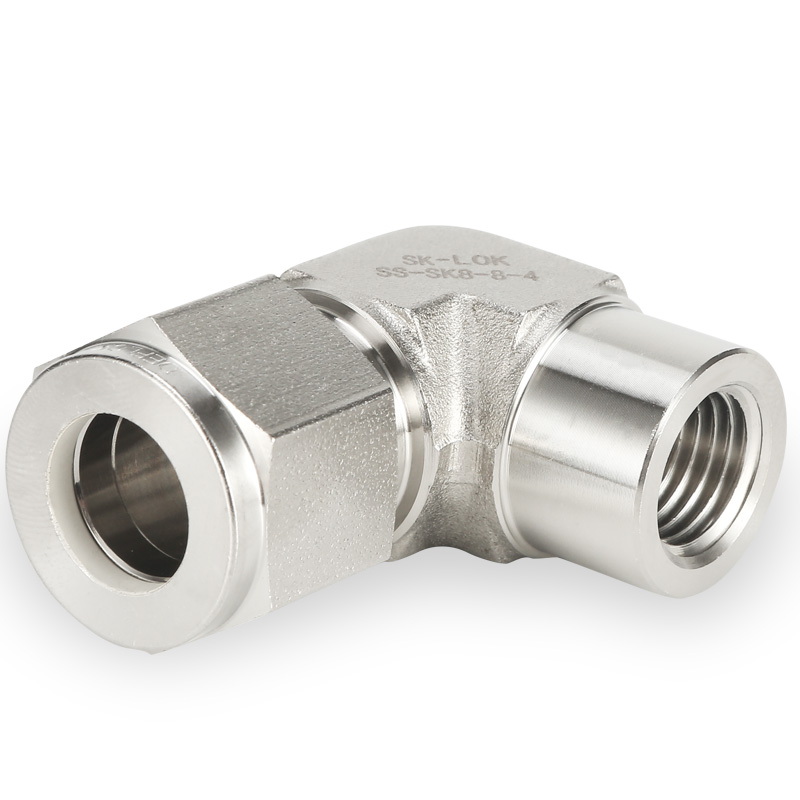

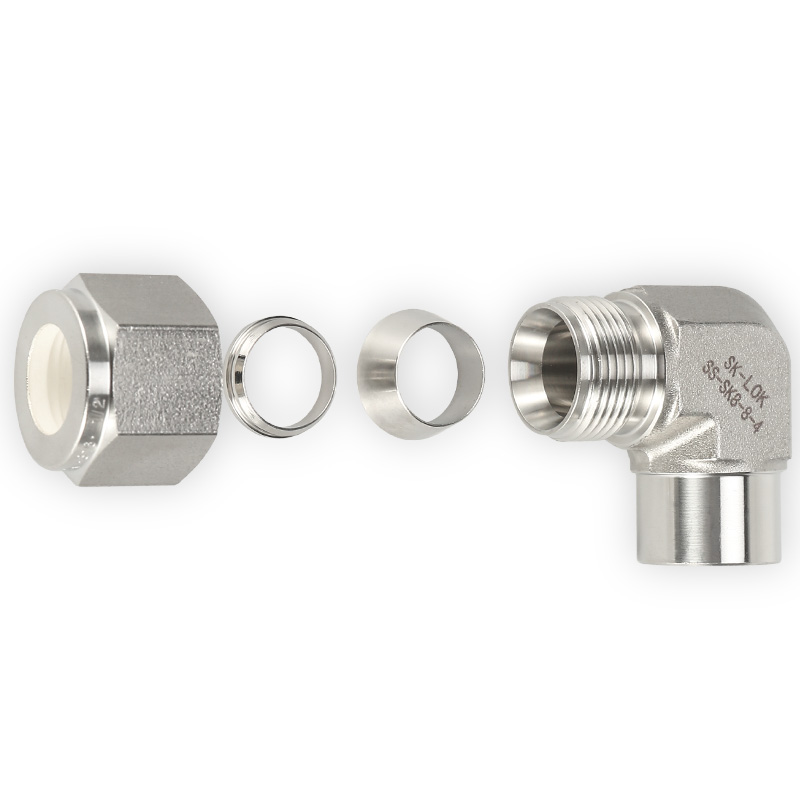

SK8 Female Elbow / Metric Tube 90 Degrees Compression Tube Fitting / 316 Stainless Steel / Twin Ferrule Female Elbows / Forged Body Double Ferrule Compression 90degree Tube Fittings



1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.
  -SK8 Female Elbow(in)

Ordering Number
      A
P
D
W
E
E1
in
mm
 NPT-F
mm
in
mm
mm
mm
-SK8-2-2
1/8
3.17
1/8
2.28
5/8
15.87
24.64
19.05
-SK8-2-4
1/8
3.17
1/4
2.28
13/16
20.63
27.43
22.35
-SK8-3-2
3/16
4.76
1/8
3.04
5/8
15.87
25.90
19.05
-SK8-4-2
1/4
6.35
1/8
4.82
5/8
15.87
26.92
19.05
-SK8-4-4
1/4
6.35
1/4
4.82
13/16
20.63
29.72
22.35
-SK8-4-6
1/4
6.35
3/8
4.82
15/16
23.81
31.75
22.35
-SK8-4-8
1/4
6.35
1/2
4.82
11/8
28.60
34.54
28.45
-SK8-5-2
5/16
9.52
1/8
6.35
5/8
15.87
28.70
19.05
-SK8-5-4
5/16
7.93
1/4
6.35
13/16
20.63
30.48
22.35
-SK8-6-2
3/8
7.93
1/8
7.11
5/8
15.87
30.48
19.05
--SK8-6-4
3/8
9.52
1/4
7.11
13/16
20.63
31.24
22.35
-SK8-6-6
3/8
9.52
3/8
7.11
15/16
23.81
33.27
22.35
-SK8-6-8
3/8
9.52
1/2
7.11
11/8
28.60
36.07
28.45
-SK8-8-4
1/2
12.70
1/4
10.41
13/16
20.63
36.07
22.35
-SK8-8-6
1/2
12.70
3/8
10.41
15/16
23.81
36.07
22.35
-SK8-8-8
1/2
12.70
1/2
10.41
11/8
28.60
36.86
28.44
-SK8-10-6
5/8
15.87
3/8
12.70
15/16
28.60
38.10
22.35
-SK8-10-8
5/8
15.87
1/2
12.70
1 1/8
28.60
39.88
28.44
-SK8-12-8
3/4
19.05
1/2
15.74
1 1/8
28.60
39.88
28.44
-SK8-12-12
3/4
19.05
3/4
15.74
1 3/8
34.92
44.70
31.75
-SK8-14-12
7/8
22.22
3/4
18.28
1 3/8
34.92
44.70
31.75
-SK8-16-12
1
25.40
3/4
22.35
1 3/8
34.92
49.02
31.75
-SK8-16-16
1
25.40
1
22.35
1 11/16
42.86
53.59
38.10
 -SK8 Female Elbow(mm)

Order information
A
P
D
W
E
E1
mm
NPT
mm
in
mm
mm
mm
-SK8-6mm-2
6
1/8
4.80
5/8
15.90
27.00
19.10
-SK8-6mm-4
6
1/4
4.80
13/16
20.60
29.80
22.40
-SK8-10mm-4
10
1/4
7.90
13/16
20.60
33.50
22.40
-SK8-12mm-4
12
1/4
9.50
13/16
20.60
36.00
22.40
-SK8-12mm-8
12
1/2
9.50
11/8
30.00
38.80
28.50
