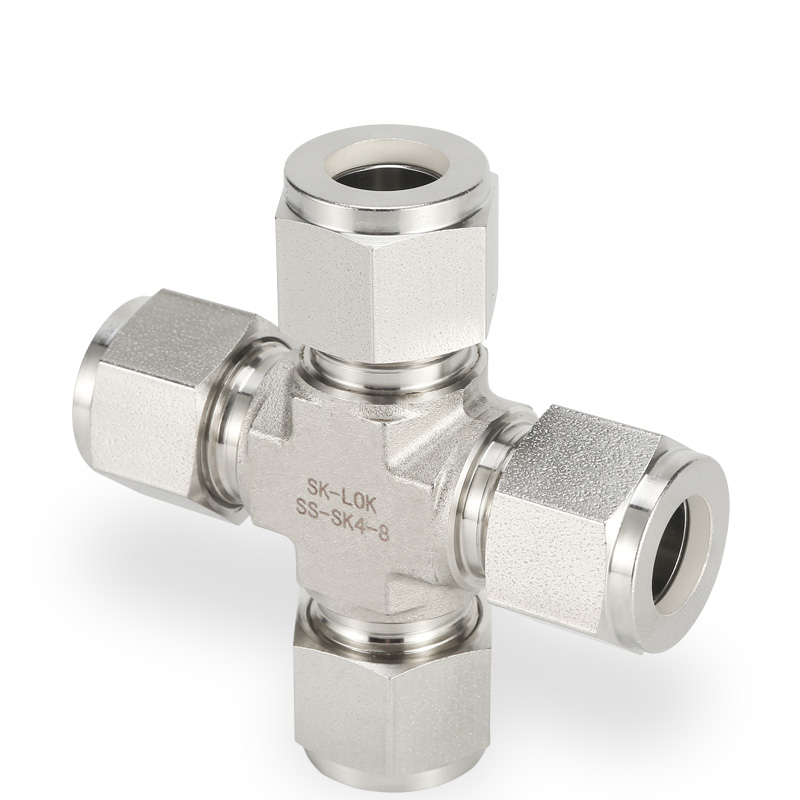

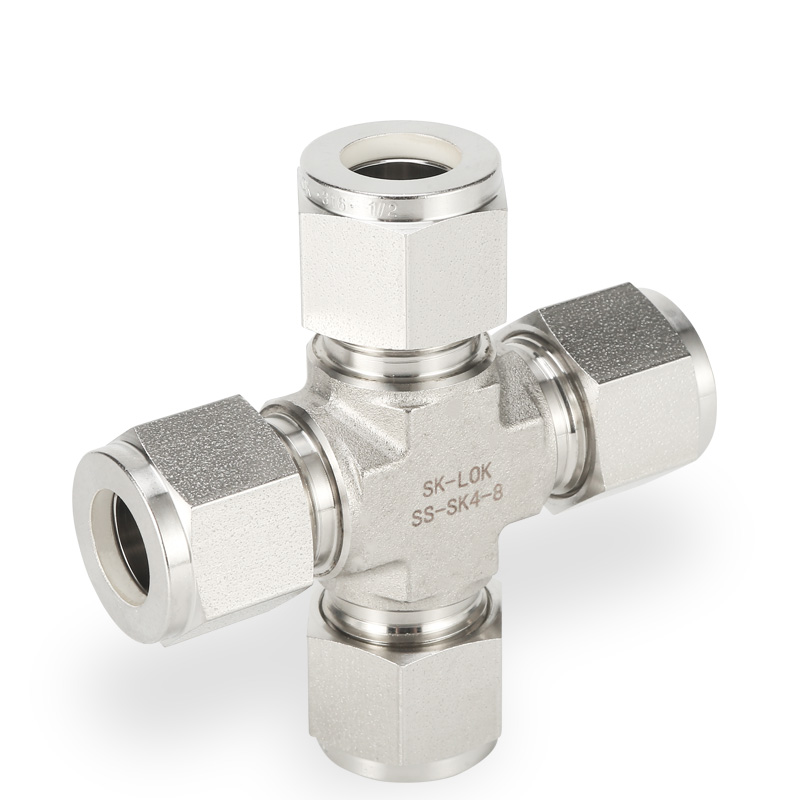

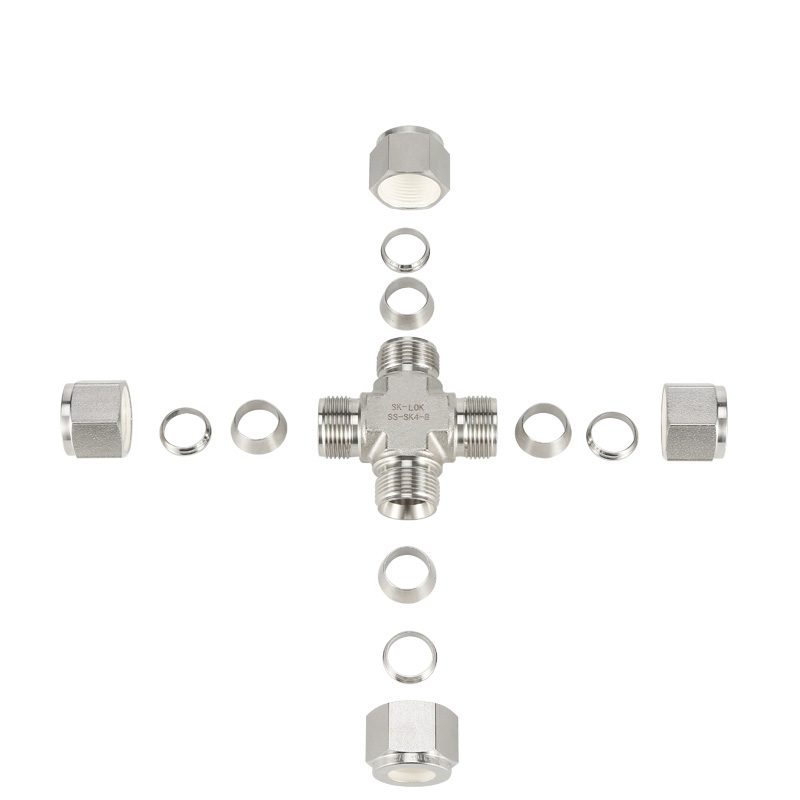

SK4 Union Cross / Npt Pipe Fittings / 316 SS Instrument Tube Fittings / Cross Type Compression / 4 Way Union Cross Fittings / -325℉~800℉ (-198℃~426℃)







1.Available in size: 1/8" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.
  -SK4 Union Cross（in）

Order information
A
D
W
E
in
mm
mm
in
mm
mm
-SK4-2
1/8
3.17
2.28
3/8
9.52
22.35
-SK4-4
1/4
6.35
4.82
1/2
12.70
27.18
-SK4-5
5/16
7.93
6.35
5/8
15.87
29.71
-SK4-6
3/8
9.52
7.11
5/8
15.87
30.48
-SK4-8
1/2
12.70
10.41
13/16
20.63
36.07
-SK4-12
3/4
19.05
15.74
11/16
26.98
39.98
-SK4-16
1
25.40
22.35
13/8
34.90
49.02
  -SK4 Union Cross（mm）

Order information
A
D
W
E
mm
mm
mm
mm
-SK4-3mm
3
2.4
9.5
22.3
-SK4-6mm
6
4.8
12.7
27.0
-SK4-8mm
8
6.4
15.9
29.9
-SK4-10mm
10
7.9
20.6
33.5
-SK4-12mm
12
9.5
20.6
36.0
-SK4-16mm
16
12.7
23.8
37.0
-SK4-18mm
18
15.1
27.0
38.3
-SK4-20mm
20
15.9
34.9
44.6
