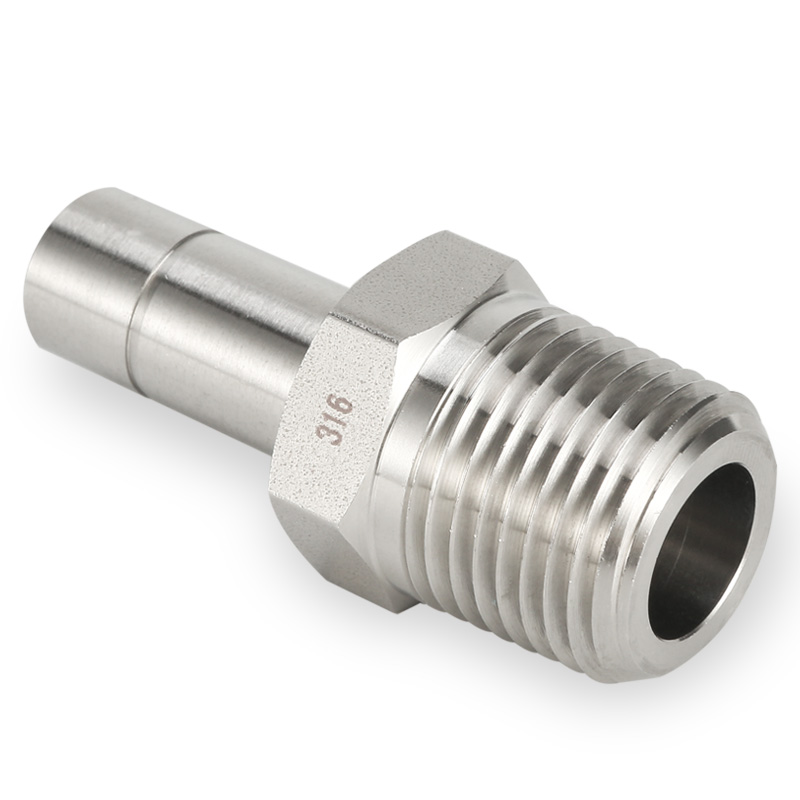

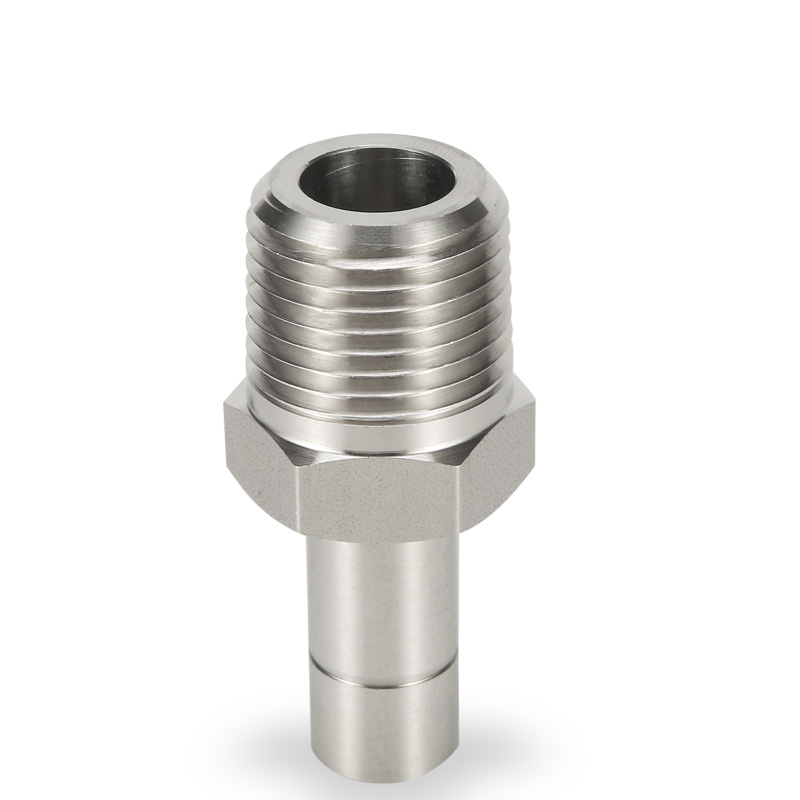

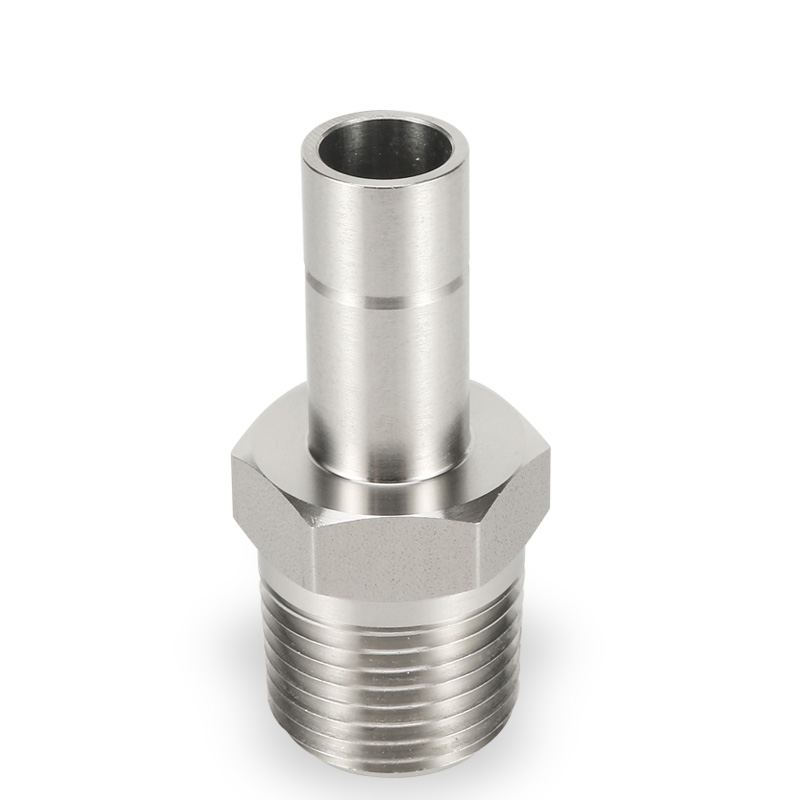

SKAM Male Adapter / 1/8" to 3/4", and 3mm to 20mm / NPT, BSP, BSPT, UNF, ISO, SAE / 316 SS Compression Connector / Tube Fittings / compression Fittings / Straight Connector









1.Available in size: 1/8" to 3/4", and 3mm to 20mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.
 -SKAM Male Adapter（in）

Ordering Number
A
P
D
W
L
in
mm
NPT
mm
in
mm
mm
-SKAM-2-2
1/8
3.17
1/8
2.28
7/16
11.11
29.46
-SKAM-2-4
1/8
3.17
1/4
2.28
9/16
14.28
34.80
-SKAM-3-2
3/16
4.76
1/8
3.04
7/16
11.11
30.22
-SKAM-3-4
3/16
4.76
1/4
3.04
9/16
14.28
35.56
-SKAM-4-2
1/4
6.35
1/8
4.82
7/16
11.11
31.75
-SKAM-4-4
1/4
6.35
1/4
4.82
9/16
14.28
37.08
-SKAM-4-6
1/4
6.35
3/8
4.82
11/16
17.46
37.85
-SKAM-4-8
1/4
6.35
1/2
4.82
7/8
22.22
43.43
-SKAM-5-2
5/16
7.93
1/8
6.35
7/16
11.11
32.76
-SKAM-5-4
5/16
7.93
1/4
6.35
9/16
14.28
38.10
-SKAM-6-2
3/8
9.52
1/8
7.11
7/16
11.11
33.53
-SKAM-6-4
3/8
9.52
1/4
7.11
9/16
14.28
38.86
-SKAM-6-6
3/8
9.52
3/8
7.11
11/16
17.46
39.62
-SKAM-6-8
3/8
9.52
1/2
7.11
7/8
22.22
45.21
-SKAM-8-4
1/2
12.70
1/4
9.90
9/16
14.28
44.45
-SKAM-8-6
1/2
12.70
3/8
9.90
11/16
17.46
45.21
-SKAM-8-8
1/2
12.70
1/2
9.90
7/8
22.22
50.80
-SKAM-10-6
5/8
15.87
3/8
12.70
11/16
17.46
45.97
-SKAM-10-8
5/8
15.87
1/2
12.70
7/8
22.22
52.34
-SKAM-10-12
5/8
15.87
3/4
12.70
1 1/16
26.98
52.32
-SKAM-12-8
3/4
19.05
1/2
14.98
7/8
22.22
52.32
-SKAM-12-12
3/4
19.05
3/4
14.98
1 1/16
26.98
52.32
-SKAM-12-16
3/4
19.05
1
14.98
1 3/8
34.92
57.91
  -SKAM Male Adapter（mm）

  Ordering Number
A
P
D
W
L
mm
NPT
in
mm
mm
-SKAM-3mm-2
3
1/8
1.8
11
28.5
-SKAM-3mm-4
3
1/4
1.8
14
33.3
-SKAM-4mm-2
4
1/8
2.4
11
29.2
-SKAM-4mm-4
4
1/4
2.4
14
34.0
-SKAM-6mm-2
6
1/8
4.6
11
32.8
-SKAM-6mm-4
6
1/4
4.6
14
38.1
-SKAM-6mm-6
6
3/8
4.6
17
36.3
-SKAM-6mm-8
6
1/2
4.6
22
41.9
-SKAM-8mm-2
8
1/8
6.4
11
31.8
-SKAM-8mm-4
8
1/4
6.4
14
39.1
-SKAM-10mm-2
10
1/8
7.1
11
33.3
-SKAM-10mm-4
10
1/4
7.1
14
39.9
-SKAM-10mm-6
10
3/8
7.7
17
40.6
-SKAM-10mm-8
10
1/2
7.7
22
46.2
-SKAM-12mm-4
12
1/4
7.1
14
46.5
-SKAM-12mm-6
12
3/8
9.5
17
44.5
-SKAM-12mm-8
12
1/2
9.1
22
52.0
-SKAM-16mm-6
16
3/8
12.7
17
46.0
-SKAM-16mm-8
16
1/2
12.7
22
50.1
-SKAM-16mm-12
16
3/4
12.7
27
51.6
-SKAM-20mm-8
20
1/2
15.1
22
50.8
-SKAM-20mm-12
20
3/4
15.1
27
51.6
-SKAM-20mm-16
20
1
15.1
35
57.9
