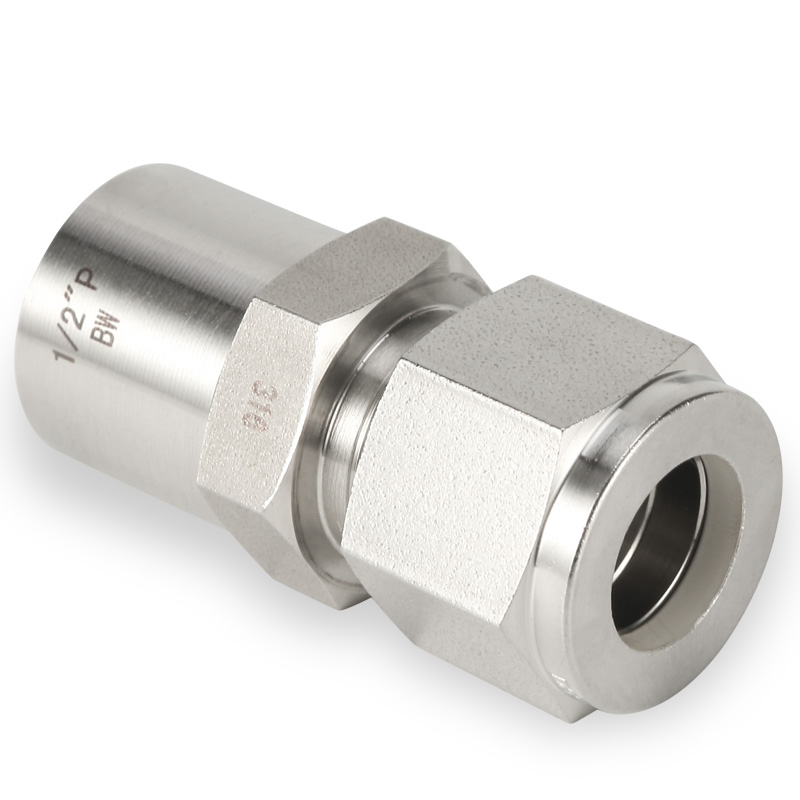

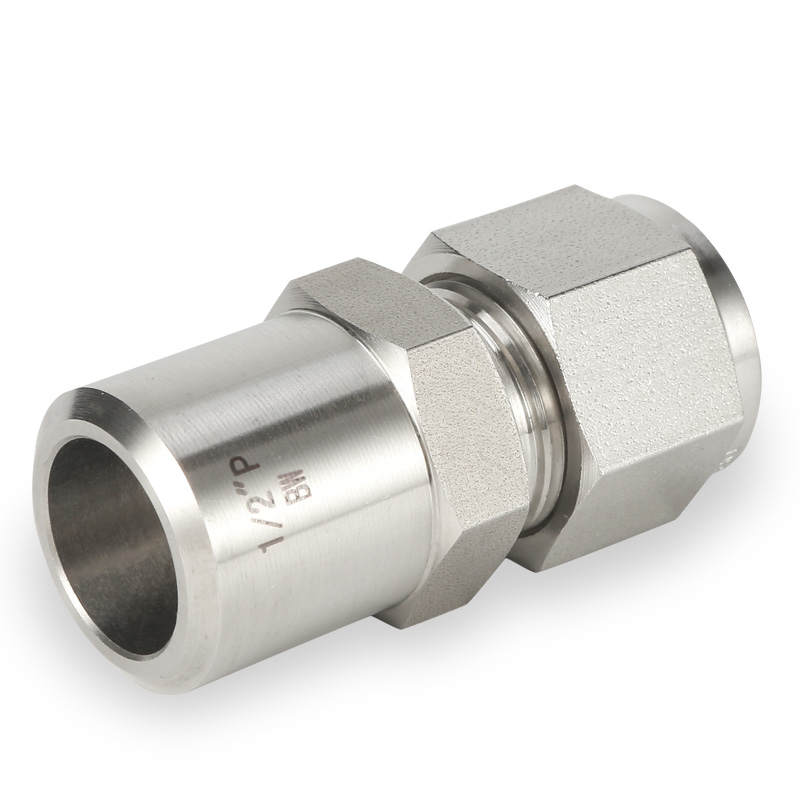

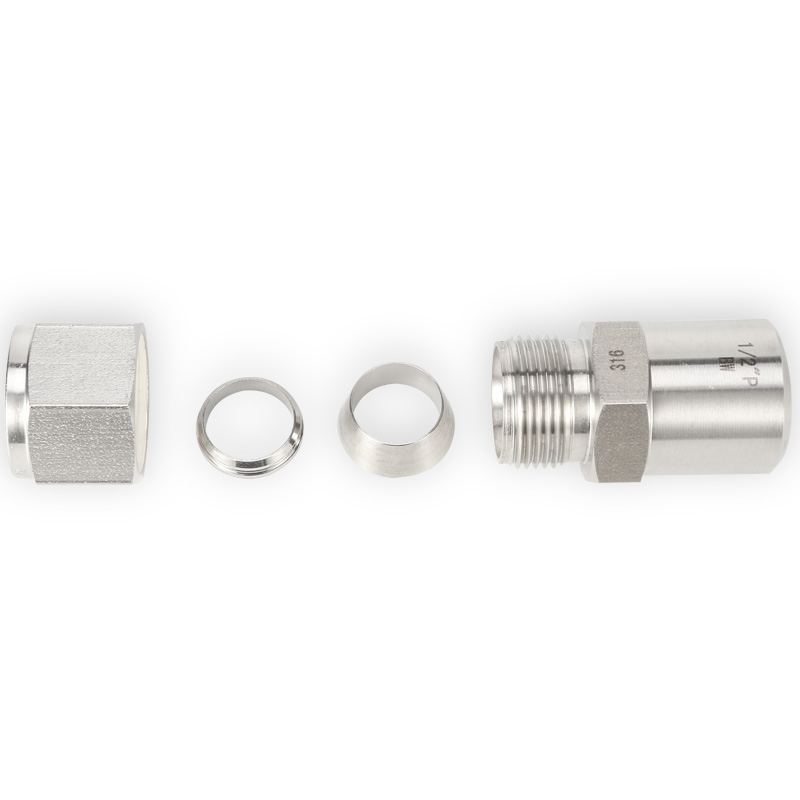

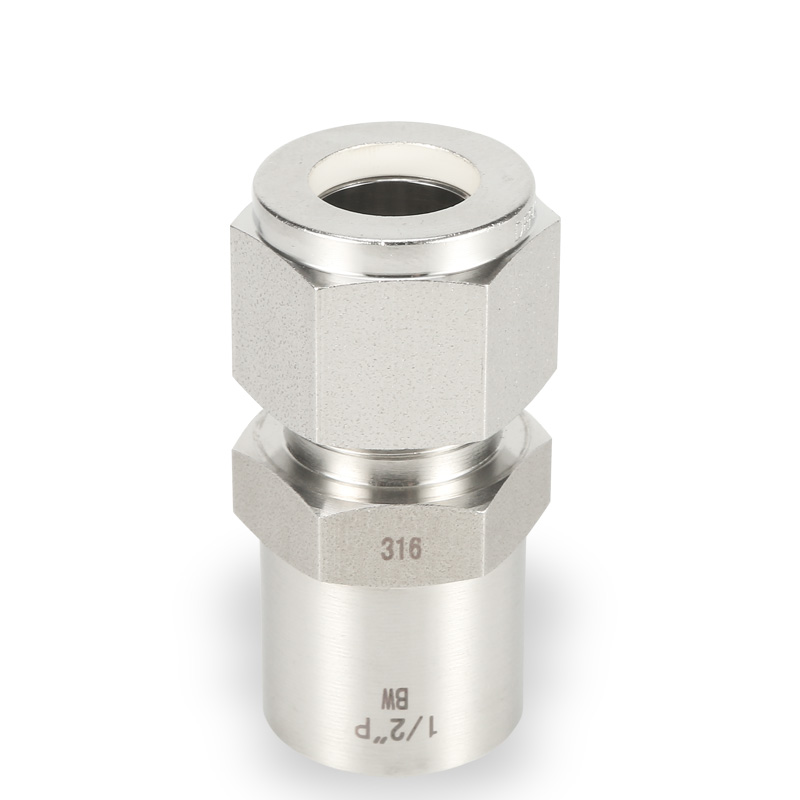

SK1-CH Weld Connector / 6000psi / Tube to Weld End Manufacturer of Compression / weld adapters / 316 Stainless Steel / Compression Fittings / Butt Weld Tube Connector







1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.
 -SK1-CH Weld Connector（in）

Order information
A
F
D
W
L
in
mm
in
mm
mm
in
mm
mm
-SK1-CH-2
1/8
3.17
1/8
10.30
2.28
7/16
11.11
30.48
-SK1-CH-3
3/16
4.76
1/8
10.30
3.04
7/16
11.11
30.98
-SK1-CH-4
1/4
6.35
1/8
10.30
4.82
1/2
12.70
33.02
-SK1-CH-4
1/4
6.35
1/4
13.70
4.82
9/16
14.28
37.59
-SK1-CH-5
5/16
7.93
1/8
10.30
5.08
9/16
14.28
34.04
-SK1-CH-5
5/16
7.93
1/4
13.70
6.35
9/16
14.28
38.61
-SK1-CH-6
3/8
9.52
1/4
13.70
7.11
5/8
15.87
39.87
-SK1-CH-6
3/8
9.52
3/8
17.10
7.11
11/16
17.46
39.87
-SK1-CH-6
3/8
9.52
1/2
21.30
7.11
7/8
22.22
46.22
-SK1-CH-8
1/2
12.70
3/8
17.10
10.41
13/16
20.63
44.43
-SK1-CH-8
1/2
12.70
1/2
21.30
10.41
7/8
22.22
49.00
-SK1-CH-8
1/2
12.70
3/4
26.67
10.41
1 1/16
26.98
50.80
-SK1-CH-10
5/8
15.87
1/2
21.30
12.70
15/16
23.81
49.02
-SK1-CH-12
3/4
19.05
3/4
26.67
15.74
1 1/16
26.98
50.80
-SK1-CH-16
1
25.40
1
33.40
22.35
1 3/8
34.92
62.23
  -SK1-CH Weld Connector（mm）

Order information
A
F
D
W
L
mm
mm
mm
mm
mm
-SK1-CH-3mm
3
10.3
2.4
12
30.5
-SK1-CH-4mm
4
10.3
2.4
12
31.2
-SK1-CH-6mm
6
10.3
4.8
14
32.8
-SK1-CH-6mm
6
13.7
4.8
14
37.9
-SK1-CH-8mm
8
10.3
5.1
15
34.2
-SK1-CH-8mm
8
13.7
6.4
15
38.7
-SK1-CH-8mm
8
21.3
6.4
22
45.6
-SK1-CH-10mm
10
13.7
7.1
18
40.9
-SK1-CH-10mm
10
17.1
7.9
18
40.9
-SK1-CH-10mm
10
21.3
7.9
22
46.5
-SK1-CH-12mm
12
13.7
7.1
22
43.4
-SK1-CH-12mm
12
17.1
9.5
22
43.4
-SK1-CH-12mm
12
21.3
9.5
22
49.0
-SK1-CH-15mm
15
21.3
11.9
24
49.0
-SK1-CH-16mm
16
21.3
12.7
24
49.0
-SK1-CH-18mm
18
21.3
13.5
27
50.5
