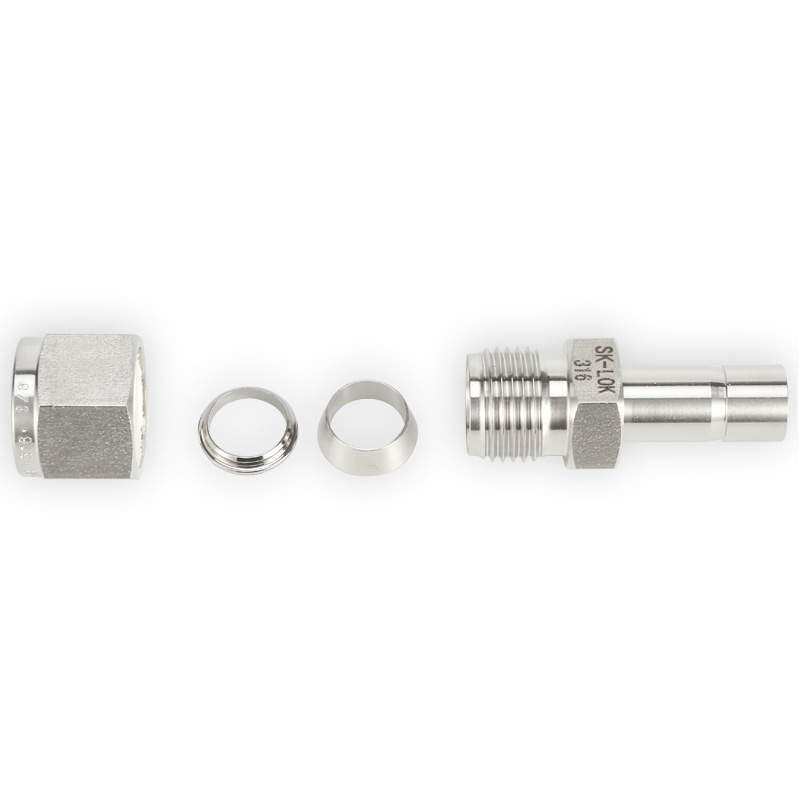

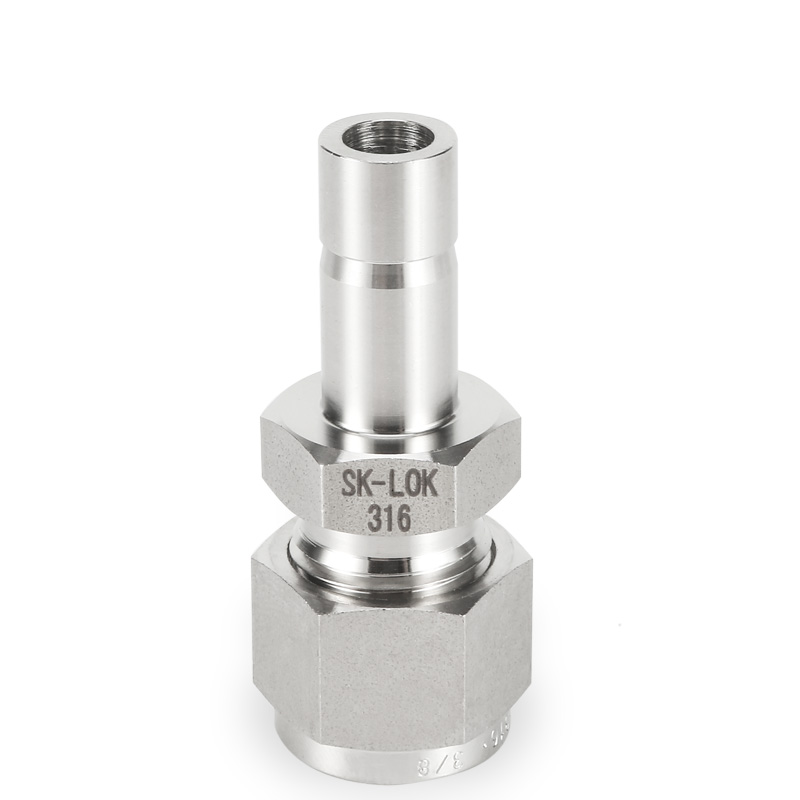

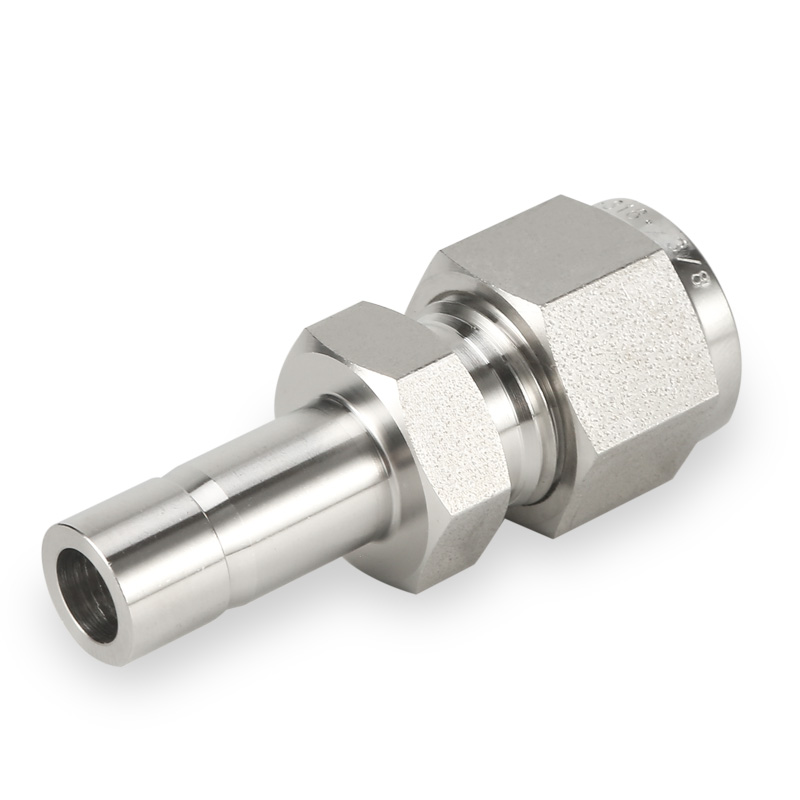

SKR Reducer / 1/16" to 1", and 2mm to 25mm / NPT, BSP, BSPT, UNF, ISO, SAE / Instrumentation Tube Fittings / Compression Double Ferrule / 316 Stainless Steel Tube End Reducer Supplier in China





1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.
-SKR Reducer (Inch Tube OD x Inch Tube Stud)

Ordering Number
A
A1
D
w
L
in
mm
in
mm
mm
in
mm
mm
-SKR-1-2
1/16
1.58
1/8
3.17
1.27
5/16
7.93
29.21
-SKR-1-4
1/16
1.58
1/4
6.35
1.27
5/16
7.93
31.5
-SKR-2-1
1/8
3.17
1/16
1.58
0.76
7/16
11.11
28.96
-SKR-2-3
1/8
3.17
3/16
4.76
2.28
7/16
11.11
34.29
-SKR-2-4
1/8
3.17
1/4
6.35
2.28
7/16
11.11
36.06
-SKR-2-6
1/8
3.17
3/8
9.52
2.28
7/16
11.11
37.59
-SKR-2-8
1/8
3.17
1/2
12.70
2.28
9/16
14.28
44.2
-SKR-3-2
3/16
4.76
1/8
3.17
2.03
7/16
11.11
34.8
-SKR-3-4
3/16
4.76
1/4
6.35
3.04
7/16
11.11
37.08
-SKR-4-2
1/4
6.35
1/8
3.17
2.03
1/2
12.70
36.83
-SKR-4-3
1/4
6.35
3/16
4.76
3.04
1/2
12.70
37.59
-SKR-4-4
1/4
6.35
1/4
6.35
4.82
1/2
12.70
39.11
-SKR-4-5
1/4
6.35
5/16
7.93
4.82
1/2
12.70
39.87
-SKR-4-6
1/4
6.35
3/8
9.52
4.82
1/2
12.70
40.64
-SKR-4-8
1/4
6.35
1/2
12.70
4.82
9/16
14.28
46.22
-SKR-4-10
1/4
6.35
5/8
15.87
4.82
11/16
17.46
48
-SKR-4-12
1/4
6.35
3/4
19.05
4.82
13/16
20.63
47.75
-SKR-5-6
5/16
7.93
3/8
9.52
6.35
9/16
14.28
41.91
-SKR-5-8
5/16
7.93
1/2
12.70
6.35
9/16
14.28
47.49
-SKR-6-4
3/8
9.52
1/4
6.35
4.82
5/8
15.87
41.4
-SKR-6-6
3/8
9.52
3/8
9.52
7.11
5/8
15.87
43.18
-SKR-6-8
3/8
9.52
1/2
12.70
7.11
5/8
15.87
48.51
-SKR-6-10
3/8
9.52
5/8
15.87
7.11
11/16
17.46
50.29
-SKR-6-12
3/8
9.52
3/4
19.05
7.11
13/16
20.63
50.29
-SKR-8-4
1/2
12.70
1/4
6.35
4.82
13/16
20.63
44.96
-SKR-8-6
1/2
12.70
3/8
9.52
7.11
13/16
20.63
46.74
-SKR-8-8
1/2
12.70
1/2
12.70
9.91
13/16
20.63
52.32
-SKR-8-10
1/2
12.70
5/8
15.87
10.41
13/16
20.63
53.84
-SKR-8-12
1/2
12.70
3/4
19.05
10.41
13/16
20.63
53.84
-SKR-8-16
1/2
12.70
1
25.40
10.41
1 1/16
26.98
60.19
-SKR-10-12
5/8
15.87
3/4
19.05
12.70
15/16
23.81
54.61
-SKR-10-14
5/8
15.87
7/8
22.22
12.70
15/16
23.81
56.13
-SKR-10-16
5/8
15.87
1
25.40
12.70
1 1/16
26.98
60.96
-SKR-12-8
3/4
19.05
1/2
12.70
9.91
1 1/16
26.98
54.61
-SKR-12-16
3/4
19.05
1
25.40
15.75
1 1/16
26.98
62.48
-SK61 Bulkhead Union (Metric Tube OD x MetricTube OD)

  Ordering Number
A
A1
D
W
L
mm
mm
mm
mm
mm
-SKR-2mm-3mm
2
3
1.70
12.00
33.50
-SKR-3mm-4mm
3
4
2.40
12.00
35.00
-SKR-3mm-6mm
3
6
2.40
12.00
36.10
-SKR-3mm-10mm
3
10
2.40
14.00
38.40
-SKR-4mm-6mm
4
6
2.40
12.00
37.10
-SKR-6mm-3mm
6
3
1.80
14.00
36.90
-SKR-6mm-8mm
6
8
4.80
14.00
39.90
-SKR-6mm-10mm
6
10
4.80
14.00
40.70
-SKR-6mm-12mm
6
12
4.80
14.00
46.30
-SKR-6mm-18mm
6
18
4.80
22.00
49.60
-SKR-8mm-6mm
8
6
4.60
15.00
40.30
-SKR-8mm-10mm
8
10
6.40
15.00
42.00
-SKR-8mm-12mm
8
12
6.40
15.00
47.60
-SKR-10mm-6mm
10
6
4.60
18.00
42.40
-SKR-10mm-8mm
10
8
6.40
18.00
43.40
-SKR-10mm-12mm
10
12
7.90
18.00
49.80
-SKR-10mm-15mm
10
15
7.90
18.00
51.30
-SKR-10mm-18mm
10
18
7.90
22.00
51.30
-SKR-12mm-6mm
12
6
4.60
22.00
44.90
-SKR-12mm-10mm
12
10
7.70
22.00
46.70
-SKR-12mm-16mm
12
16
9.50
22.00
53.80
-SKR-12mm-18mm
12
18
9.50
22.00
53.80
-SKR-12mm-20mm
12
20
9.50
22.00
56.10
-SKR-12mm-22mm
12
22
9.50
24.00
56.10
-SKR-12mm-25mm
12
25
9.50
27.00
62.40
-SKR-16mm-12mm
16
12
9.10
24.00
53.00
-SKR-18mm-12mm
18
12
9.10
27.00
54.60
-SKR-18mm-16mm
18
16
12.70
27.00
56.10
-SKR-18mm-20mm
18
20
15.10
27.00
57.60
-SKR-18mm-22mm
18
22
15.10
27.00
57.60
-SKR-18mm-25mm
18
25
15.10
27.00
62.40
-SKR-20mm-16mm
20
16
12.70
30.00
57.90
-SKR-20mm-18mm
20
18
13.90
30.00
57.90
-SKR-20mm-22mm
20
22
15.80
30.00
59.40
-SKR-20mm-25mm
20
25
15.80
30.00
61.20
-SKR-22mm-18mm
22
18
13.90
30.00
57.90
-SKR-22mm-20mm
22
20
15.10
30.00
59.40
-SKR-22mm-25mm
22
25
18.30
30.00
64.20
-SKR-25mm-18mm
25
18
13.90
35.00
63.10
-SKR-25mm-20mm
25
20
15.10
35.00
64.60
