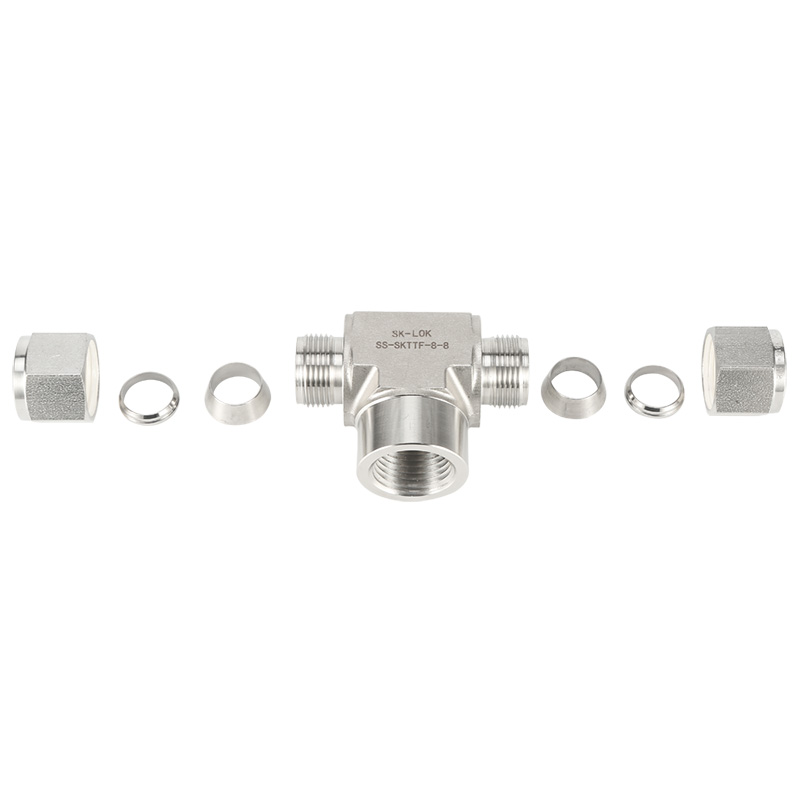

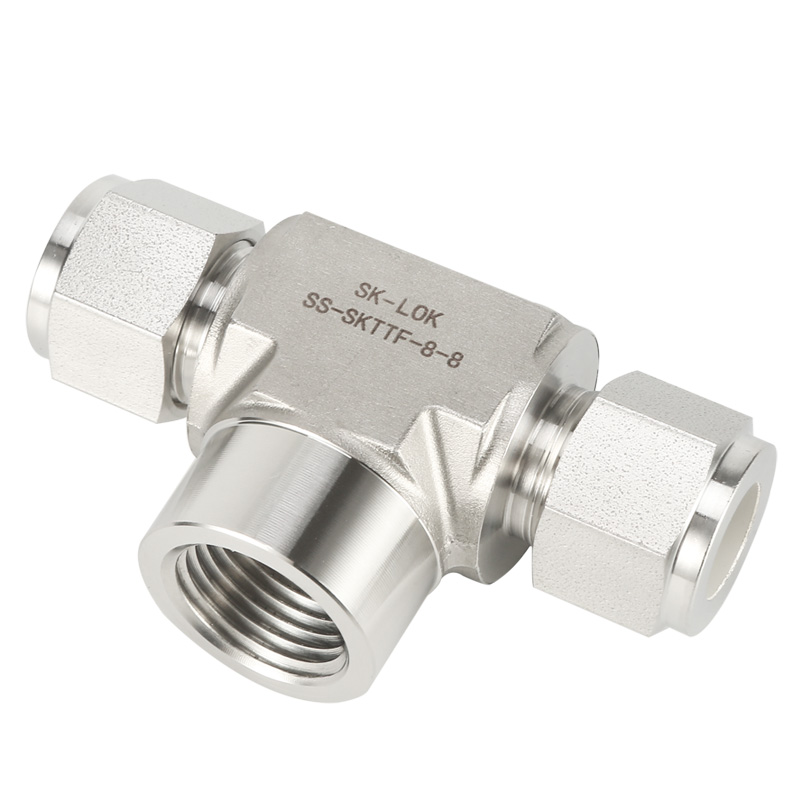

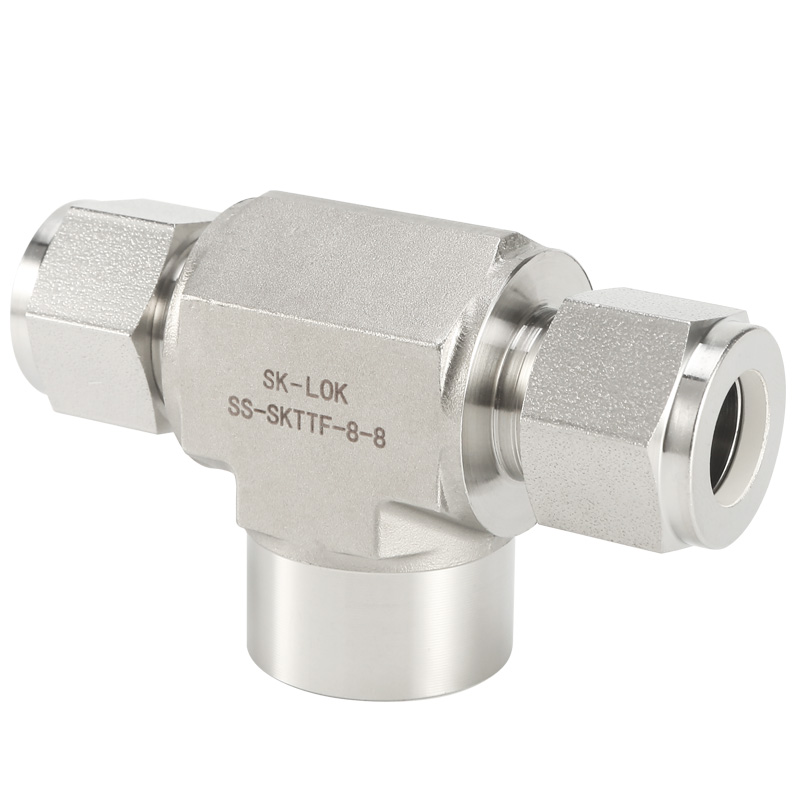

SKTTF Female BranchTee / 1/16 to 1, and 2mm to 25 mm / SS 304, SS 316, Brass, Special Alloys / Swagelok Type Instrumentation Tube Fittings / Twin Ferrules Compression Fittings



1.Available in size: 1/16 to 1, and 2mm to 25 mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.



-SKTTF Female Branch Tee (Inch Tube OD x Inch Tube OD x NPT-F)

Ordering Number
A
P
D
W
E
E1
in
mm
NPT-F
mm
in
mm
mm
mm
-SKTTF-2-2
1/8
3.17
1/8
2.28
5/8
15.87
24.64
19.05
-SKTTF-4-2
1/4
6.35
1/8
4.82
5/8
15.87
26.96
19.05
-SKTTF-4-4
1/4
6.35
1/4
4.82
13/16
20.63
29.71
22.35
-SKTTF-6-4
3/8
9.52
1/4
7.11
13/16
20.63
31.24
22.35
-SKTTF-8-4
1/2
12.70
1/4
10.41
13/16
20.63
36.07
22.35
-SKTTF-8-6
1/2
12.70
3/8
10.41
15/16
23.81
36.07
22.35
-SKTTF-8-8
1/2
12.70
1/2
10.41
1 1/8
28.60
38.86
28.44
-SKTTF-10-8
5/8
15.87
1/2
12.70
1 1/8
28.60
38.86
28.44
-SKTTF-12-12
3/4
19.05
3/4
15.75
1 3/8
34.92
44.7
31.75
-SKTTF-16-12
1
25.40
3/4
22.35
1 3/8
34.92
49.02
31.75
-SKTTF-16-16
1
25.40
1
22.35
1 11/16
42.86
53.60
38.1
-SKTTF Female Branch Tee (Metric Tube OD x Metric Tube OD x NPT-F)

Ordering Number
A
P
D
W
E
E1
mm
NPT-F
mm
in
mm
mm
mm
-SKTTF-6mm-2
6
1/8
4.80
5/8
15.87
27.00
19.00
-SKTTF-6mm-4
6
1/4
4.80
13/16
20.63
29.80
22.40
-SKTTF-10mm-4
10
1/4
7.90
13/16
20.63
33.50
22.40
-SKTTF-10mm-6
10
3/8
7.90
15/16
23.81
33.50
22.40
-SKTTF-12mm-4
12
1/4
9.50
13/16
20.63
36.00
22.40
-SKTTF-12mm-8
12
1/2
9.50
1 1/8
28.60
38.80
28.50
-SKTTF-16mm-8
16
1/2
12.70
1 1/8
28.60
38.80
28.50
