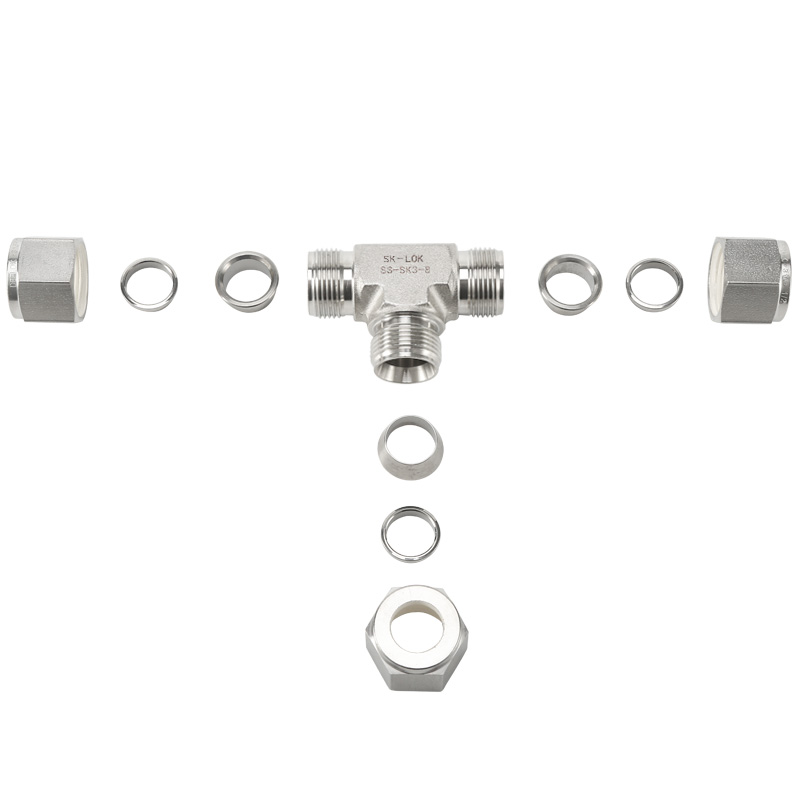

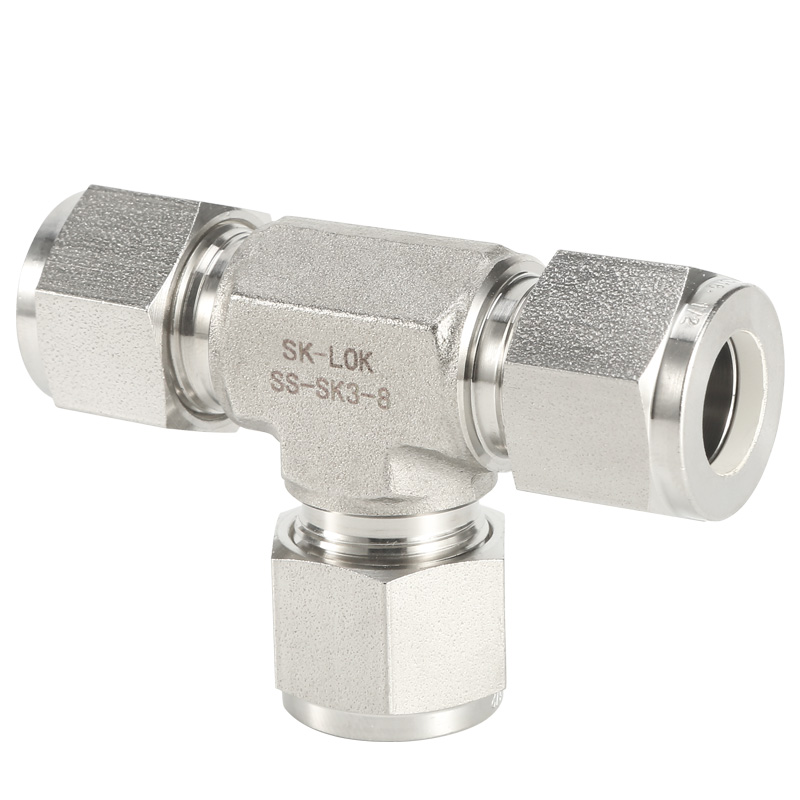

SK3 Union Tee / 1/16" to 1"and 2mm to 25mm / Stainless Steel 316 / Instrument Double Ferrule Compression Connector / Tube Fittings / Union Tee / equal tee fitting



1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.





-SK3 Union Tee (Inch Tube OD x Inch Tube OD x Inch Tube OD)



Ordering Number

A

D

W

E

in

mm

mm

in

mm

mm

-SK3-1

1/16

1.58

1.27

3/8

9.52

17.80

-SK3-2

1/8

3.17

2.28

1/2

12.70

22.35

-SK3-3

3/16

4.76

3.04

1/2

12.70

24.40

-SK3-4

1/4

6.35

4.82

1/2

12.70

26.92

-SK3-5

5/16

7.93

6.35

5/8

15.87

29.71

-SK3-6

3/8

9.52

7.11

5/8

15.87

30.48

-SK3-8

1/2

12.70

10.41

13/16

20.63

36.10

-SK3-10

5/8

15.87

12.70

15/16

23.81

38.90

-SK3-12

3/4

19.05

15.74

11/8

28.60

39.90

-SK3-16

1

25.40

22.35

1 3/8

34.92

49.00



-SK9 Union Tee (Metric Tube OD x Metric Tube OD x Metric Tube OD)



Ordering Number

A

D

W

E

mm

mm

in

mm

mm

-SK3-2mm

2

1.70

3/8

9.50

22.30

-SK3-3mm

3

2.40

3/8

9.50

22.30

-SK3-4mm

4

2.40

1/2

12.70

25.40

-SK3-6mm

6

4.80

1/2

12.70

27.00

-SK3-8mm

8

6.40

5/8

16.00

29.90

-SK3-10mm

10

7.90

11/16

17.50

31.50

-SK3-12mm

12

9.50

13/16

20.60

36.00

-SK3-14mm

14

11.10

15/16

23.80

38.80

-SK3-15mm

15

11.90

15/16

23.80

38.80

-SK3-16mm

16

12.70

15/16

23.80

38.80

-SK3-18mm

18

15.10

1 1/8

28.60

39.80

-SK3-20mm

20

15.90

1 3/8

34.90

44.60

-SK3-22mm

22

18.30

1 3/8

34.90

44.60

-SK3-25mm

25

21.80

1 3/8

34.90

49.10
